User manual for Motorola Symbol LS3408-FZ Rugged Handheld LS3408-FZ20005R
- Manufacturer: Motorola
- Basic description and contents of package
- Product classification: Photography - Scanners - Barcode Scanners
- Safety instructions
- Startup and operation of the barcode scanners
- Tips for setting up your Motorola
- Settings and expert assistance
- Contact Motorola service
- Troubleshooting
- Warranty information
- Price: 369 USD
|
We recommend checking out our discussion threads on the Motorola Symbol LS3408-FZ Rugged Handheld LS3408-FZ20005R,
which address similar problems with connecting and setting up Barcode Scanners Motorola.
|
User manual for the Motorola Symbol LS3408-FZ Rugged Handheld LS3408-FZ20005R
The user manual for the Motorola Symbol LS3408-FZ Rugged Handheld LS3408-FZ20005R provides
necessary instructions for the proper use of the product Photography - Scanners - Barcode Scanners.

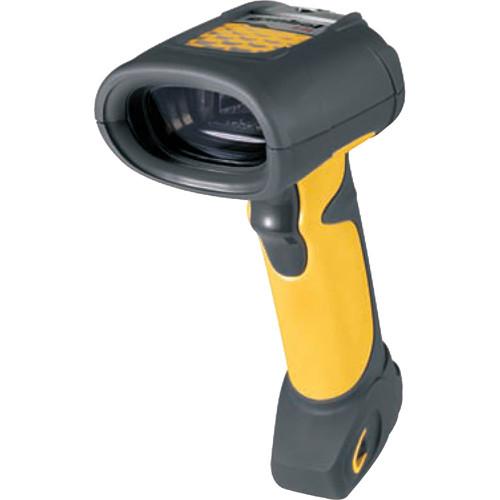

The Symbol LS3408-FZ Rugged Handheld Barcode Scanner from Motorola can capture all 1D bar codes even when they're dirty or damaged. The scanner features fuzzy logic technology for fast and accurate data capture. Two confirmation modes let operators know when a scan is successful.
|
If you own a Motorola barcode scanners and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Motorola Symbol LS3408-FZ Rugged Handheld LS3408-FZ20005R in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Motorola Symbol LS3408-FZ Rugged Handheld LS3408-FZ20005R:
| Scanner Type | Retrocollective | | Light Source | 650 nm visible laser diode | | Scan Rate | 36 scans/second | | Minimum Element Width | 5.0 mil (0.127 mm) | | Depth-of-Field | Code 39 - 5.0 mil: 2.5 to 7.25" (6.35 to 18.42 cm)
Code 39 - 7.5 mil: 2.0 to 15.75" (5.08 to 40.0 cm)
Code 39 - 20 mil: 0 to 39.5" (0 to 100.33 cm)
Code 39 - 40 mil: 2.0 to 67.0" (5.08 to 170.18 cm)
Code 39 - 55 mil: 4.0 to 84.0" (10.16 to 213.36 cm)
100% UPC - 13 mil: 1.0 to 24.0" (2.54 to 60.96 cm) | | Print Contrast | 25% minimum reflective difference | | Tilt | ±20° from normal | | Pitch | ±65° from normal | | Skew | ±50° from normal | | Bar-Code Types | UPC/EAN, UPC/EAN with Supplementals, GS1-128 (formerly UCC/EAN 128), JAN 8 & 13, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128 Full ASCII, Codabar (NW7), Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, Code 32, Bookland EAN, IATA, GS1DataBar (formerly RSS), GTIN | | Interfaces Supported | RS232, Keyboard Wedge, Wand Emulation, Scanner Emulation, IBM 468X/469X, USB, Synapse | | Ambient Lighting Tolerance | Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions
Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED: 450' (137.16 m)
Candles (4,844 Lux), Sunlight: 8000' (2438.4 m)
Candles (86,111 Lux) | | Drop Resistance | Unit functions normally after 50 drops to concrete from 6.5' (2.0 m) | | Power Source | Host power or external power supply | | Power Requirements | 4.5 to 14 V DC | | Standby Current | 50 mA | | Electrostatic Discharge | 20 kV air discharge and 8 kV of contact discharge | | Certifications | EMI/RFI: EN 301 489-1, EN 301 489-17, EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
Laser Safety: EN 60825-1, IEC 60825-1, 21CFR1040.10
Input Transient Protection: IEC 1000-4-(2,3,4,5,6,11)
Sealing: IP65 | | Color | Twilight black, yellow | | Temperature / Humidity | Operating Temperature: -22 to 122°F (-30 to 50°C)
Storage Temperature: -40 to 158°F (-40 to 70°C)
Humidity: 5 to 95% | | Dimensions (WxDxH) | 4.82 x 2.93 x 7.34" (12.25 x 7.43 x 18.65 cm) | | Weight | 12.35 oz (350 g) | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.9 x 4.4 x 3.8" | |
The user manual for the Motorola Symbol LS3408-FZ Rugged Handheld LS3408-FZ20005R can be downloaded in .pdf
format if it did not come with your new barcode scanners, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Motorola users keep a unique electronic library
for Motorola barcode scannerss,
where you can use our link to download the user manual for the Motorola Symbol LS3408-FZ Rugged Handheld LS3408-FZ20005R.
The user manual lists all of the functions of the Motorola Symbol LS3408-FZ Rugged Handheld LS3408-FZ20005R,
all the basic and advanced features and tells you how to use the barcode scanners.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Motorola service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Motorola Symbol LS3408-FZ Rugged Handheld LS3408-FZ20005R. User manuals are also
available on the Motorola website under Photography - Scanners - Barcode Scanners.
