User manual for the Moultrie M-1100i Trail Camera MCG-12635

The user manual for the Moultrie M-1100i Trail Camera MCG-12635 provides necessary instructions for the proper use of the product Optics - Firearm & Field Accessories - Trail/Wildlife Cameras.

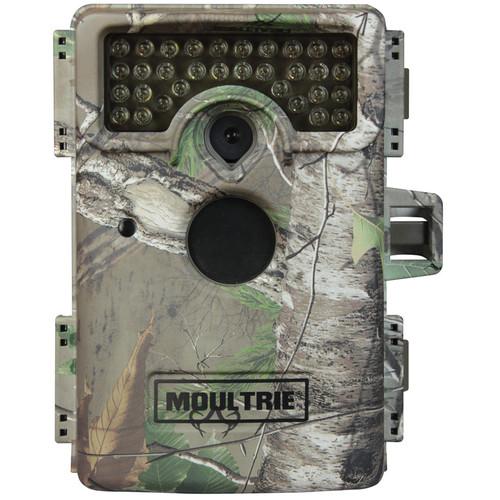

Realtree Xtra camouflage helps shield the Moultrie M-1100i Trail Camera from the eyes of the wary game animals you are trying to photograph. Featuring a maximum resolution of 12MP, this camera is activated by either a passive infrared sensor or time lapse mode to help you pattern the animals you are pursuing. A rapid trigger speed of 0.5-sec ensures you get the shot, even if your subject is traveling briskly. At night a 32-LED infrared flash with 80' range is all but invisible to animals, and provides quality images.

A passive infrared sensor detects animals by movement, or by sensing their body temperature as they cross the invisible beam. You can easily aim this unit using the built-in IR Aim mode. When activated a red LED on the camera's face illuminates when the beam is crossed, letting you know exactly where the unit is pointing.

In addition to the infrared trigger, you can set the camera up to take pictures at a user-set interval. You can choose from 13 different interval settings, lasting from as little as 10 seconds to as long as 24 hours. You can disable the infrared trigger or allow it to continue to take pictures every time the beam is crossed.

This camera captures video in 16:9 aspect ratio and offers two video resolutions to allow you to choose between higher quality video or smaller file sizes to preserve space on your memory card. You can select film clips of 5, 10, 30, 60, or 90 seconds in 720 or 1080p. The camera accepts SD memory cards up to 32GB, which are available separately.

Keep track of key environmental variables that occurred as that shot was taken with Infostrip data stamping. If activated, each shot will feature camera name, time, and temperature in Fahrenheit or Celsius.

The M-1100i runs on 8 AA batteries, which also must be purchased separately. This camera's engineering also features an external power port for the optional PowerPanel solar panel, AC Adapter or Battery Box. A USB cable for connection to a computer is supplied.

A 1" wide by 4' long olive drab strap is included for mounting to trees. In addition to the strap, the camera's case has a 1/4"-20 mount on the bottom as well as the back so you can use it on a tripod when trees aren't present. It is water/weather-resistant to ensure durability over extended periods of outdoor use. The side of case also features a Python lock-compatible hasp for additional security.
If you own a Moultrie trail/wildlife cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Moultrie M-1100i Trail Camera MCG-12635 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Moultrie M-1100i Trail Camera MCG-12635:
Camera Type Trail / wildlife
Imaging
Resolution Low: 0.9 MP
Medium: 3 MP
High: 9 MP
Enhanced: 12 MP
Sensor Motion sensor: passive infrared (PIR) with 0.5-sec trigger speed
File Formats JPEG
Aspect Ratio 16:9
Optics
Lens Focal length: not specified by manufacturer
Focus Type Auto focus
Shooting Controls
Sensitivity Passive infrared motion sensor triggered by heat and movement within 50'
Shutter Speeds Not specified by manufacturer
Triggering Speed 0.5 sec
Exposure Modes Auto
White Balance Auto
Interval Recording Yes, Time-Lapse shooting with many available interval settings
PIR motion sensor can still be active in time-lapse mode
Flash
Built-in Flash Yes, 32-LED invisible infrared flash
Effective Flash Range 80' (24.4 m)
Memory
Memory Card Type SD/SDHC memory cards up to 32 GB (available separately)
A/V Recording
Recording Formats MOV
Video Recording Yes
Video Resolution HD 1280 x 720
FHD (1080p) 1920 x 1080
Video Clip Length 5 sec
10 sec
30 sec
60 sec
90 sec
Audio Recording Yes, with video
Viewfinder/Display
Display 2" (5.1 cm) color preview screen
Connectivity/System Requirements
Connectivity USB cord
System & Software Requirements Intel Pentium 4 or AMD Athlon 64 processor or above
1GB RAM minimum
100 MB hard disk space minimum
Microsoft Windows 32 bit - XP with Service Pack 2 or later
Windows Vista Home Premium, Business, Ultimate, or Enterprise with Service Pack 1
Windows 7
Environmental
Operating/Storage Temperature Not specified by manufacturer
Weatherproofing Water/weather-resistant design
Power
Battery Type Runs on 8 AA batteries (not included)
Power Adapter External power port for optional:
Game Camera PowerPanel
Camera Battery Box
AC Adapter
Physical
Mounting 1 x 48" (2.5 x 121.9 cm) olive drab strap for tree mounting
1/4"-20 threads in base and on back for tripod mounting
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer
Packaging Info
Package Weight 1.5 lb
Box Dimensions (LxWxH) 10.0 x 6.2 x 3.6"
The user manual for the Moultrie M-1100i Trail Camera MCG-12635 can be downloaded in .pdf format if it did not come with your new trail/wildlife cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Moultrie users keep a unique electronic library for Moultrie trail/wildlife camerass, where you can use our link to download the user manual for the Moultrie M-1100i Trail Camera MCG-12635.

The user manual lists all of the functions of the Moultrie M-1100i Trail Camera MCG-12635, all the basic and advanced features and tells you how to use the trail/wildlife cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Moultrie service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Moultrie M-1100i Trail Camera MCG-12635. User manuals are also available on the Moultrie website under Optics - Firearm & Field Accessories - Trail/Wildlife Cameras.
