User manual for the MSI A88XI-AC V2 Micro-ATX Motherboard A88XI AC V2
The user manual for the MSI A88XI-AC V2 Micro-ATX Motherboard A88XI AC V2 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Motherboards.

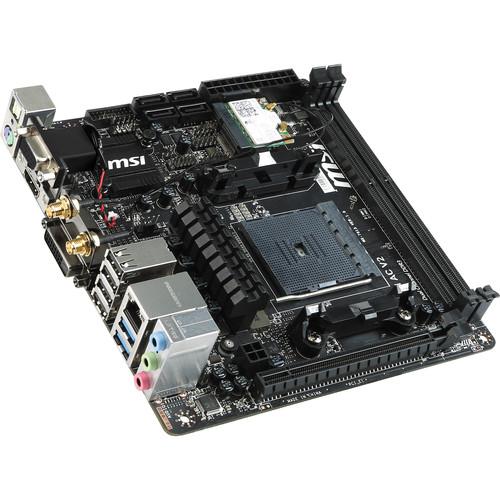

The MSI A88XI-AC V2 Micro-ATX Motherboard lets you create a compact mid-range system for personal or business use. It features a FM2/FM2+ socket that supports AMD's A-series and Athlon processors to provide performance while working with applications. For multitasking, you can populate its two DDR3 memory slots with up to 32GB of non-ECC unbuffered RAM modules. Additionally, MSI has outfitted this motherboard with built-in Wi-Fi and Bluetooth 4.0 technologies so you can use this system as a multimedia PC in your living room.
By supporting an AMD APU processor, this motherboard can deliver visuals via an integrated graphics engine through the HDMI, DVI-D, and VGA ports. When more graphics performance is needed, it has a PCIe 3.0 x16 slot that can hold a dedicated graphics card. Additionally, four internal SATA III connectors allow your system to access storage and optical drives. For external devices, this motherboard has two USB 3.0 and four USB 2.0 ports along with a PS/2 combo port.
MSI offers other features that complete or enhance your system. They have outfitted this motherboard with a Gigabit Ethernet LAN jack as well as a Realtek ALC887 chip to deliver 7.1-channel high definition audio. To increase the system's stability and lifespan, Military Class 4 components are used in creating this motherboard. Furthermore, MSI lets you easily fine-tune or increase the performance of your system by offering OC Genie 4 and M Flash.
|
If you own a MSI motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the MSI A88XI-AC V2 Micro-ATX Motherboard A88XI AC V2 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the MSI A88XI-AC V2 Micro-ATX Motherboard A88XI AC V2:
| CPU | AMD A-Series/Athlon processors for the FM2+ and FM2 packages | | Chipset | AMD A88X Chipset | | Memory | • 2 x DDR3 memory slots support up to 32 GB
• Supports DDR3 1333/1600/1866/2133 MHz
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports AMD Memory Profile (AMP)
• Supports Extreme Memory Profile (XMP) | | Slots | • 1 x PCIe 3.0 x16 slot
• Half-size mini-PCIe slot (occupied by the dual band wireless-AC 7260 Wi-Fi/Bluetooth card)
Please be aware that only FM2+ processors can support PCIe 3.0 | | Graphics | • 1 x VGA port, supporting a maximum resolution of 1920 x 1200 @ 60 Hz, 24 bpp
• 1 x DVI-D port, supporting a maximum resolution of 2560 x 1600 @ 60 Hz, 24 bpp and 1920 x 1200 @ 60 Hz, 24 bpp
• 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz, 36 bpp, 3840 x 2160 @ 30 Hz, 36 bpp, 1920 x 1200 @ 120 Hz, 36 bpp, and 1920 x 1200 @ 60 Hz, 36 bpp
Please be aware that 4096 x 2160 and 3840 x 2160 displays modes are only compatible with the FM2+ processor | | On-Board SATA | • 4 x SATA 6 Gb/s ports by AMD A88X
- Supports storage and data transfers at up to 6 Gb/s
- Supports RAID 0/1/5/10 modes by AMD A88X | | USB | - 4 x USB 3.0 (2 ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (4 ports on the back panel, 2 ports available through the internal USB connector) | | Audio | Chipset integrated by Realtek ALC887
- 7.1-Channel High Definition audio
- Supports S/PDIF output | | LAN | • Supports Gigabit LAN by Realtek RTL8111G
- Supports 10 Mb/s, 100 Mb/s, and 1000 Mb/s | | Wireless | • Wi-Fi/Bluetooth mini-PCIe card with Intel Dual Band Wireless-AC 7260 chip
- Supports Wi-Fi 802.11a/b/g/n/ac, dual band (2.4 GHz, 5 GHz) up to 867 Mb/s speed
- Supports Bluetooth v4.0 (Bluetooth Low Energy and Bluetooth 3.0 +HS supported) | | Internal I/O Connectors | - 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12 V power connector
- 4 x SATA 6 Gb/s connectors
- 1 x USB 2.0 connector (supports an additional 2 USB 2.0 ports)
- 1 x USB 3.0 connector (supports an additional 2 USB 3.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x TPM module connector
- 1 x Clear CMOS jumper | | Back Panel I/O Ports | - 1 x Optical S/PDIF-Out connector
- 1 x PS/2 keyboard/mouse combo port
- 1 x HDMI port
- 1 x VGA port
- 1 x DVI-D port
- 4 x USB 2.0 ports
- 1 x LAN (RJ-45) port
- 2 x USB 3.0 ports
- 3 x Audio jacks | | Mounting | 6 mounting holes | | Dimensions | Micro-ATX form factor
6.7 x 6.7" / 17.0 x 17.0 cm | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.0 x 7.5 x 2.7" | |
The user manual for the MSI A88XI-AC V2 Micro-ATX Motherboard A88XI AC V2 can be downloaded in .pdf
format if it did not come with your new motherboards, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other MSI users keep a unique electronic library
for MSI motherboardss,
where you can use our link to download the user manual for the MSI A88XI-AC V2 Micro-ATX Motherboard A88XI AC V2.
The user manual lists all of the functions of the MSI A88XI-AC V2 Micro-ATX Motherboard A88XI AC V2,
all the basic and advanced features and tells you how to use the motherboards.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from MSI service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the MSI A88XI-AC V2 Micro-ATX Motherboard A88XI AC V2. User manuals are also
available on the MSI website under Computers & Solutions - Computer Components - Motherboards.
