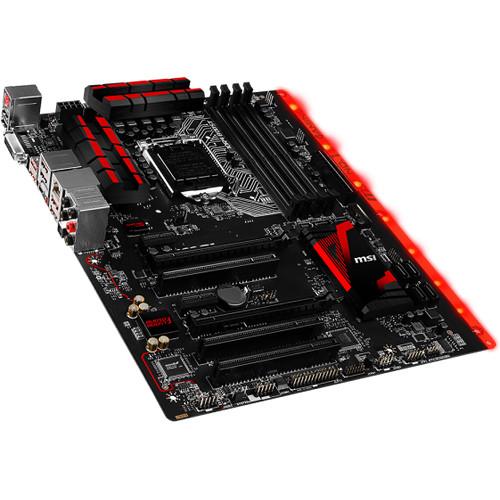

The MSI B150 Gaming Pro ATX Motherboard provides an LGA1151 socket along with four DDR4 DIMM slots to let you create a Windows machine with a 6th-generation Skylake Intel processor and up to 64 GB of RAM. With an integrated graphics chipset, it outputs visuals through the DVI-D port and supports 4K resolutions via an HDMI port. For 3D gaming, it has two PCIe 3.0 x16 slots that let you install two dedicated graphics cards and link them with AMD's CrossFire technology. In addition, Audio Boost 3 powered by Nahimic sound technology completes the multimedia experience.
This gaming motherboard comes with six SATA connectors along with a single SATA Express and a SATA-based M.2 interface to handle various types of storage drives such as small-form factor M.2 SSDs to 3.5" hard drives. To connect with your peripherals, it offers four USB 2.0 and four USB 3.0 ports along with a PS/2 combo port. For audio, it has five OFC audio jacks as well as an optical S/PDIF connector. Aside from these features, a built-in Killer E2400 Gigabit LAN controller maximizes the networking performance for online games and streaming media.
If you own a MSI motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the MSI B150 Gaming Pro ATX Motherboard B150 GAMING PRO in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MSI B150 Gaming Pro ATX Motherboard B150 GAMING PRO:
Specifications
CPU Support
Supports 6th Gen Intel Core i3/i5/i7 processors along with Intel Pentium and Celeron processors for Socket LGA1151
Chipset
Intel B150 Chipset
RAM
4 x DDR4 memory slots support up to 64 GB Supports DDR4 2133 MHz Dual channel memory architecture Supports ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Slots
2 x PCIe 3.0 x16 slots 2 x PCIe 3.0 x1 slots 3 x PCI slots
Display
1 x HDMI port, supports a maximum resolution of 4096 x 2160 @ 24 Hz, 2560 x 1600 @ 60 Hz 1 x DVI-D port, supports a maximum resolution of 1920 x 1200 @ 60 Hz Supports 2-Way AMD CrossFire technology
Storage
Intel B150 Chipset 6 x SATA 6 Gb/s ports 1 x M.2 slot, supports SATA III standards 1.7", 2.4", 3.1" (42.0 mm, 60.0 mm, 80.0 mm) length M.2 SSD cards 1 x SATA Express port
USB
Intel B150 Chipset 6 x USB 3.0 (SuperSpeed USB) (4 ports on the back panel, 2 ports available through the internal USB connector) 6 x USB 2.0 (High-speed USB) (4 ports on the back panel, 2 ports available through the internal USB connectors)
Audio
Realtek ALC1150 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN
1 x Killer E2400 Gigabit LAN controller
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12 V power connector 6 x SATA 6 Gb/s connectors 1 x SATAe connector 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports) 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial port connector 1 x Parallel port connector 1 x Slow mode switch
Back Panel I/O Ports
1 x PS/2 keyboard/mouse port 4 x USB 2.0 ports 1 x DVI-D port 1 x HDMI port 4 x USB 3.0 ports 1 x LAN (RJ45) port 1 x Optical S/PDIF OUT connector 5 x OFC audio jacks
BIOS
The motherboard BIOS provides "Plug & Play" which detects the peripheral devices and expansion cards of the board automatically The motherboard provides a Desktop Management Interface(DMI) function that records your motherboard specifications
