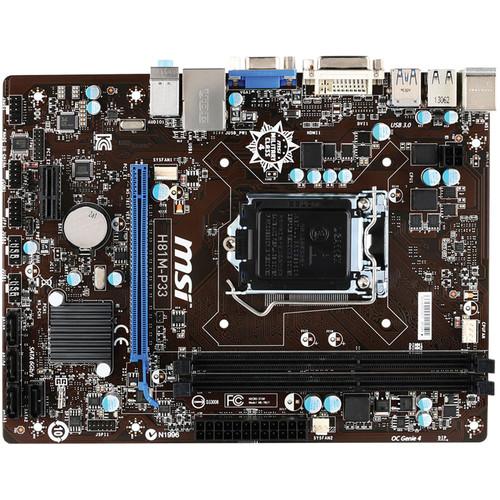

The H81M-P33 Desktop Motherboard from MSI supports 4th Generation Intel Core processors, Intel H81 Express chipset, Intel Pentium, and Celeron processors in LGA1150 socket. It supports DDR3-1600/1333/1066 memory, USB 3.0 and SATA 6 Gb/s. The motherboard features OC Genie that overclocks in one-second, Click BIOS 4 that easily fine-tunes your system, and M-Flash updates and backups your BIOS.
If you own a MSI motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the MSI H81M-P33 Desktop Motherboard H81M-P33 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MSI H81M-P33 Desktop Motherboard H81M-P33:
Specifications
CPU
Supports 4th Generation Intel Core i3/Core i5/Core i7 processors, and Intel Pentium and Celeron processors for the socket LGA1150
Chipset
Intel H81 Express
Main Memory
Supports 2 x DDR3 DIMMs 1066/1333/1600 MHz, up to 16 GB maximum Supports dual-channel mode
Slots
1 x PCIe 2.0 x16 1 x PCIe x1
On-Board SATA
SATA III controller integrated in Intel H81 chipset Up to 6 Gb/s transfer speed Supports two SATA III ports (SATA 1 to 2)
SATA II controller integrated in Intel H81 chipset Up to 3 Gb/s transfer speed Supports two SATA II ports (SATA 3 to 4)
USB
2 x USB 3.0 ports on the back panel
Audio
Chip integrated by Realtek ALC887 Flexible 8-channel audio with jack sensing Compliant with Azalia 1.0 Spec
LAN
LAN 10/100/1000 Fast Ethernet by Realtek RTL8111G
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 4-pin ATX 12 V power connector 2 x SATA III connectors 2 x SATA III connectors 2 x USB 2.0 connectors 1 x Serial port connector 1 x Trusted Platform Module (TPM) header 1 x Front Panel Audio connector 1 x Chassis Intrusion connector
Back Panel I/O Ports
1 x PS/2 keyboard 1 x PS/2 mouse 4 x USB 2.0 2 x USB 3.0 1 x RJ-45 LAN 1 x 3-in-1 audio 1 x Graphics card 1 x DVI-D
BIOS
The motherboard BIOS provides plug-and-play BIOS, which detects the peripheral devices and expansion cards of the board automatically It provides a Desktop Management Interface (DMI) function which records your motherboard specifications
