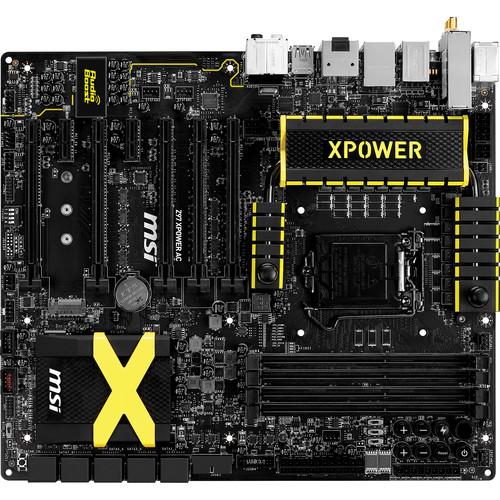

The Z97 XPOWER AC Motherboard from MSI supports 5th and 4th Generation Intel Core processors, and Intel Pentium and Celeron processors in LGA1150 socket. It supports DDR3-3300 (OC) Memory. The motherboard has an enhanced thermal design and water cooling heatsink. It also features Military Class 4 components, which provide stability and durability. The DrMOS, Dark CAP, Hi-c CAP, and Super Ferrite Choke ensures that your PC runs more stable under extreme gaming conditions.
If you own a MSI motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the MSI Z97 XPOWER AC Motherboard Z97 XPOWER AC in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MSI Z97 XPOWER AC Motherboard Z97 XPOWER AC:
CPU
Supports 5th and 4th Generation Intel Core processors, and Intel Pentium and Celeron processors for the socket LGA1150
5 x PCIe 3.0 x16 slots (PCI_E1, PCI_E2, PCI_E3, PCI_E5, PCI_E7)* The operating mode will be x0/x16/x0/x0/x0, x16/x0/x0/x16/x0,x16/x0/x0/x8/x8 or x8/x0/x8/x8/x8* Support for installing up to 4 x PCIe x16 expansion cards 2 x PCIe 2.0 x1 slots
For a single expansion card installation with optimal performance, using the PCI_E2 slot is recommended.
On-Board SATA
Intel Z97 Express chipset 6 x SATA 6 Gb/s ports (SATA 1~6) 1 x M.2 port* M.2 port supports M.2 SATA 6 Gb/s module M.2 port supports M.2 PCIe module up to 10 Gb/s speed** M.2 port supports 1.7/2.4/3.1" (4.2/6.0/8.0 cm length module Supports RAID 0, RAID1, RAID 5, and RAID 10 (M.2 PCIe interface does not support RAID 0, RAID1, RAID 5, and RAID 10) Supports Intel Smart Response technology, Intel Rapid Start technology and Intel Smart Connect technology (supports Intel Core processors on Windows 7/8/8.1) ASMedia ASM1061 chipset 4 x SATA 6 Gb/s ports (SATA 7~10)
* The SATA 5 and SATA 6 ports will be unavailable when installing a module in the M.2 port. **M.2 PCIe interface only supports UEFI option ROM, NOT support legacy option ROM.
USB
Intel Z97 Express Chipset: 4 x USB 3.0 ports available through the internal USB 3.0 connectors* 6 x USB 2.0 ports (2 x ports on the back panel, 4 x ports available through the internal USB connectors*)
2 x ASMedia ASM1074 Chipset: 6 x USB 3.0 ports on the back panel
ASMedia ASM1042 Chipset: 2 x USB 3.0 ports on the back panel
Internal JUSB1 connector supports MSI Super Charger.
Audio
Realtek ALC1150 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN
1 x Intel I218-V Gigabit LAN controller
Wireless LAN
Wi-Fi/Bluetooth expansion module with Intel Dual Band Wireless-AC 7260 chip Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4 GHz, 5 GHz) up to 867 Mb/s speed Supports Intel Wireless Display (WiDi)
Bluetooth
Wi-Fi/Bluetooth expansion module with Intel Dual Band Wireless-AC 7260 chip Supports Bluetooth v4.0 (includes Bluetooth Low Energy (BLE) and Bluetooth 3.0+HS)
1 x 24-pin ATX power connector 1 x 8-pin ATX 12 V power connector 1 x 6-pin ATX 12 V power connector* 5 x 4-pin system fan connectors 2 x 4-pin CPU fan connectors 10 x SATA 6 Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 x USB 2.0 ports) 2 x USB 3.0 connectors (supports additional 4 x USB 3.0 ports) 1 x Front Panel Audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 9 x V-Check points connectors 1 x GO2BIOS button 1 x OC Genie button 1 x Discharge button 1 x Reset button 1 x Power button 2 x Base Clock control buttons 2 x CPU Ratio control buttons 1 x Clear CMOS jumper 1 x Multi-BIOS switch 1 x OC Genie mode switch 1 x PCIe CeaseFire Switch 1 x Slow mode switch 1 x Base Clock step switch 1 x PCIe CeaseFire switch 1 x 2-Digit Debug Code LED 1 x Wi-Fi/ Bluetooth module connector
*Provides additional power to PCIe x16 slots.
Back Panel I/O Ports
1 x PS/2 port 1 x Clear CMOS button 1 x Optical S/PDIF OUT connector 2 x USB 2.0 ports 8 x USB 3.0 ports 1 x RJ-45 LAN jack 1 x 6-in-1 OFC audio jack 1 x DisplayPort with maximum resolutions up to 4096 x 2304 at 24 Hz, 2560 x 1600 at 60 Hz, 3840 x 2160 at 60 Hz, 1920 x 1200 at 60 Hz 1 x HDMI ports with maximum resolutions up to 4096 x 2304 at 24 Hz, 2560 x 1600 at 60 Hz, 3840 x 2160 at 60 Hz,1920 x 1200 at 60 Hz
This platform supports dual-display and triple-display function.
BIOS
The motherboard BIOS provides plug-and-play BIOS which detects the peripheral devices and expansion cards of the board automatically The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications
Mounting
9 x Mounting holes
Form Factor
E-ATX
Dimensions
12.0 x 10.4" (30.5 x 26.4 cm)
