User manual MXR ZW38 Black Label Chorus Pedal ZW38

Operating instructions and pdf manual for use - MXR ZW38 Black Label Chorus Pedal ZW38 User manual, User manual MXR ZW38 Black Label Chorus Pedal ZW38, MXR, ZW38, Black, Label, Chorus, Pedal, ZW38, Video


User manual for MXR ZW38 Black Label Chorus Pedal ZW38

MXR  ZW38 Black Label Chorus Pedal ZW38
  • Manufacturer: MXR
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Effects Pedals
  • Safety instructions
  • Startup and operation of the effects pedals
  • Tips for setting up your MXR
  • Settings and expert assistance
  • Contact MXR service
  • Troubleshooting
  • Warranty information
  • Price: 100 USD

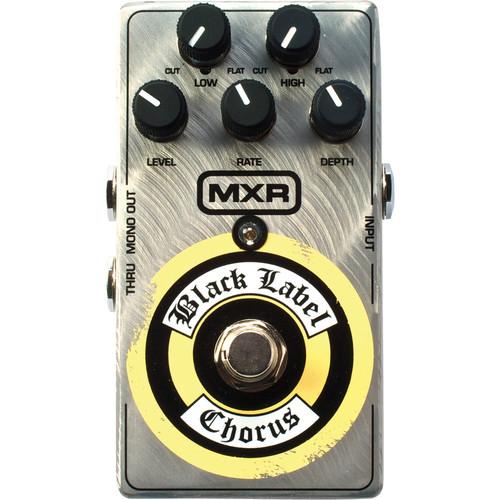

MXR  ZW38 Black Label Chorus Pedal ZW38 MXR  ZW38 Black Label Chorus Pedal ZW38
Click to enlarge image

We recommend checking out our discussion threads on the MXR ZW38 Black Label Chorus Pedal ZW38, which address similar problems with connecting and setting up Effects Pedals MXR.



User manual for the MXR ZW38 Black Label Chorus Pedal ZW38

The user manual for the MXR ZW38 Black Label Chorus Pedal ZW38 provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Effects Pedals.

The ZW38 Black Label Chorus is a modulation effect pedal from MXR designed for guitarist Zakk Wylde, best known for his work with Black Label Society, Ozzy Osbourne, and Pride & Glory. Using its bucket-brigade circuitry to create lush, liquid textures, Wylde employs the ZW38 to thicken up his wall of distortion, and add dimension and texture to clean passages. The ZW38 features rate, depth, and level controls to regulate the speed, intensity, and volume level of the effect, as well as knobs for cutting high and low frequencies, which provide greater tone control than a typical chorus pedal allows.
If you own a MXR effects pedals and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the MXR ZW38 Black Label Chorus Pedal ZW38 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MXR ZW38 Black Label Chorus Pedal ZW38:
Specifications
Input 1/4" (6.3 mm) jack
Output 1/4" (6.3 mm) jack
Thru 1/4" (6.3 mm) jack
Input Impedance 1 MOhms
Output Impedance 1 kOhms
Signal to Noise Effect On: >96 dBV
Bypass: >106 dBV
With level, rate, depth controls @ max CW; tone controls @ center position
Tone Controls Low Variable Shelf 12 dB/Octave:
CW: 800 Hz
Center: 350 kHz
CCW: 70 Hz

High Variable Shelf 6 dB/Octave:
CW: Flat
Center: 1.2 kHz
CCW: 660 Hz
Bypass Buffered
Current Draw 13 mA
Power Supply 9 VDC
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer
Packaging Info
Package Weight 0.85 lb
Box Dimensions (LxWxH) 5.8 x 4.4 x 2.6"
The user manual for the MXR ZW38 Black Label Chorus Pedal ZW38 can be downloaded in .pdf format if it did not come with your new effects pedals, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other MXR users keep a unique electronic library for MXR effects pedalss, where you can use our link to download the user manual for the MXR ZW38 Black Label Chorus Pedal ZW38.

The user manual lists all of the functions of the MXR ZW38 Black Label Chorus Pedal ZW38, all the basic and advanced features and tells you how to use the effects pedals. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from MXR service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the MXR ZW38 Black Label Chorus Pedal ZW38. User manuals are also available on the MXR website under Pro Audio - Musical Instruments - Effects Pedals.
