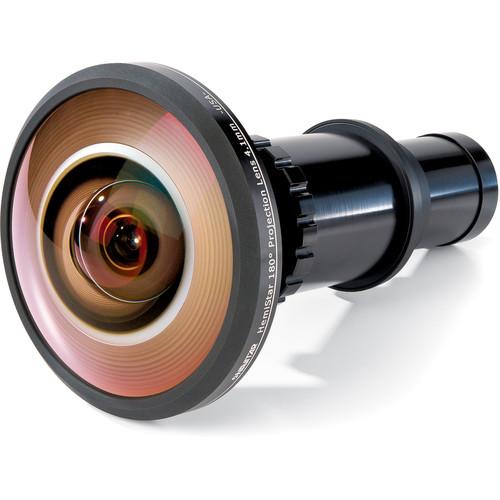

The Hemistar 180° 4.08mm Non-Relay Projection Lens for Dome Surfaces from Navitar is designed for single-chip 2K projectors such as the optional projectiondesign F35 WQXGA, although it works with a variety of projectors including 3xLCD projectors. It features a 195.2 horizontal x 179.1° vertical projection angle with WQXGA through XGA resolution, depending on the projector it is used with, and it is a fixed focus lens holding your image sharp from just over two and a half feet to infinity. It is suitable for 0.95" single-chip DLP and 3LCD projectors.
If you own a Navitar lenses and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Navitar Hemistar 180° 4.08mm Non-Relay Projection Lens HS41 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Navitar Hemistar 180° 4.08mm Non-Relay Projection Lens HS41:
Specifications
Lens Type
Fisheye
Focal Length
4.08mm
f/Stop
f/3
Focus Range
23.6" to Infinity/ 600 mm to Infinity
Image Circle
0.51" / 12.96 mm
MTF Performance
Center: 65% @ 66lp/mm Edge: 35% @ 66lp/mm
The user manual for the Navitar Hemistar 180° 4.08mm Non-Relay Projection Lens HS41 can be downloaded in .pdf
