User manual for the Neumann KH 310 Three-Way Active Studio Monitor (R) KH 310 R
The user manual for the Neumann KH 310 Three-Way Active Studio Monitor (R) KH 310 R provides
necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

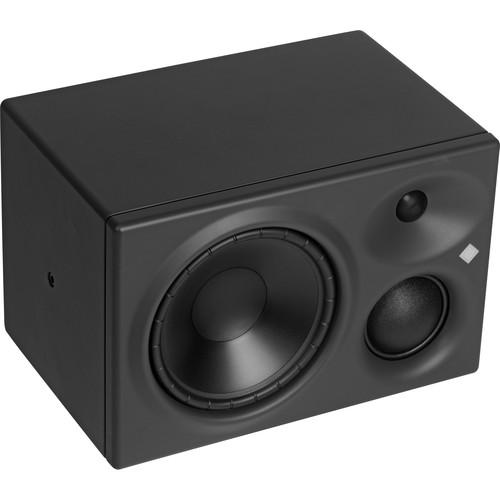

The right channel KH 310 Three-Way Active Studio Monitor from Neumann is a tri-amplified monitor capable of a total of 290-watts of continuous output. It is designed for use as a near-field monitor as well as in multi-channel systems as a front or rear loudspeaker, and can be used for tracking, mixing, and mastering applications. The KH 310 features a 8.25" woofer, a 3" midrange driver, and a 1" tweeter that are housed in a sealed, 3-way cabinet designed to reduce standing waves and assist in fast bass transient response.
Neumann's Elliptical Mathematically Modeled Dispersion (MMD) waveguide was implemented with the application of mixing at a large-format console in mind. It provides a smoother off-axis response, essentially widening the KH 310's "sweet spot" and allowing you to move across the console without a decrease in audio quality. Coupled with the 4-position bass, low-mid, and treble acoustic controls, it allows the KH 310 to function ideally in a variety of acoustic environments.
The KH 310 can be mounted in a variety of positions thanks to its integrated mounting points. The included self-adhesive feet help provide stability when mounting on speaker stands.
|
If you own a Neumann studio monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Neumann KH 310 Three-Way Active Studio Monitor (R) KH 310 R in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Neumann KH 310 Three-Way Active Studio Monitor (R) KH 310 R:
| Frequency Response | -3 dB free field response: 34 Hz to 21 kHz, ± 3 dB
Pass band free field: 36 Hz to 20 kHz, ± 2 dB | | Self-Generated Noise Level | < 20 dB(A) at 10 cm (with input gain set to 100 dB for 0 dBu) | | Total Harmonic Distortion | > 85 Hz (< 0.5 % at 95 dB SPL at 1 m) | | Maximum SPL | In full space / calculated in half space @ 3% THD @ 1 m: 110.3 / 116.3 dB SPL (averaged between 100 Hz and 6 kHz)
Short term SPL with IEC-weighted noise (IEC 60286-5) @ 1 m, in typical listening conditions: 113 dB(C) SPL
Short term SPL with music material @ 2.3 m, in typical listening conditions (pair): 100 dB(C) SPL (full range), 107 dB(C) SPL (with subwoofer)
Long term SPL with pink noise @ 2.3 m, in typical listening conditions (single/pair): 93 / 99 dB(C) SPL (full range), 94 / 100 dB(C) SPL (with subwoofer) | | Bass Capability | Maximum SPL in half space @ 3% THD at 1 m: 104.5 dB SPL (averaged between 50 Hz and 100 Hz) | | Amplifiers | Class AB
Bass: 150 W continuous, 210 W peak
Midrange: 70 W continuous, 90 W peak
Treble: 70 W continuous, 90 W peak | | Controller Design | Analog, active | | Crossover Frequencies | 650 Hz, 2 kHz | | Crossover Slope | 24 dB/oct, 4th order | | Equalization | Bass: 0, −2.5, −5, −7.5 dB
Low Mid: 0, −1.5, −3, −4.5 dB
Treble: +1, 0, −1, −2 dB | | Protection Circuits | Independent thermo limiters for woofer, midrange dome and tweeter. Woofer soft clip and excursion limiters | | Filter | Infrasonic Filter: 15 Hz; 6 dB/octave slope | | Input | 1x XLR, analog electronically balanced | | Impedance | > 13 kΩ, electronically balanced | | Input Gain Control | 0 dBu to −15 dBu (sensitivity) | | Output Level Control | 94, 100, 108, 114 dB SPL | | CMRR | > 56 dB @ 100 Hz to 15 kHz | | Maximum Input Level | 24 dBu | | Indicator Lights | Power On: Neumann logo white
Limit/Clip: Neumann logo red | | Power Supply | 100-240 V~; 50/60 Hz | | Power Consumption | Idle: 24 W
Full Output: W | | Finish | Cabinet Surface: Painted wood and polyurethane, Anthracite (RAL 7021), Aluminum electronics panel | | Baffle | Cover: Optional removable metal grille | | Operating Temperature | 50 to 104°F (10 to 40°C)
<90% RH, non-condensing | | Storage Temperature | −13 to 158° F (−25 to 70° C )
<90% RH, non-condensing | | Drivers | Magnetically shielded
Woofer: 8.24" (210 mm)
Midrange: 3" (75 mm)
Tweeter: 1" (25 mm) | | Mounting Configuration | 2 x M8 on side panels, depth from outside of cabinet 1" (25 mm)
Rear panel screws for attaching LH 41 base plate
Rear panel bracket | | Dimensions (HxWxD) | 10 x 15.1 x 11.5" (253 x 383 x 292 mm) | | Weight | 28.6 lb (13 kg) | | Package Weight | 36.2 lb | | Box Dimensions (LxWxH) | 23.0 x 15.0 x 14.0" | |
The user manual for the Neumann KH 310 Three-Way Active Studio Monitor (R) KH 310 R can be downloaded in .pdf
format if it did not come with your new studio monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Neumann users keep a unique electronic library
for Neumann studio monitorss,
where you can use our link to download the user manual for the Neumann KH 310 Three-Way Active Studio Monitor (R) KH 310 R.
The user manual lists all of the functions of the Neumann KH 310 Three-Way Active Studio Monitor (R) KH 310 R,
all the basic and advanced features and tells you how to use the studio monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Neumann service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Neumann KH 310 Three-Way Active Studio Monitor (R) KH 310 R. User manuals are also
available on the Neumann website under Pro Audio - Recording - Studio Monitors.
