User manual Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503

Operating instructions and pdf manual for use - Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503 User manual, User manual Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503, Nikon, D5200, DSLR, Camera, with, 18-55mm, Lens, Black, 1503,


User manual for Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

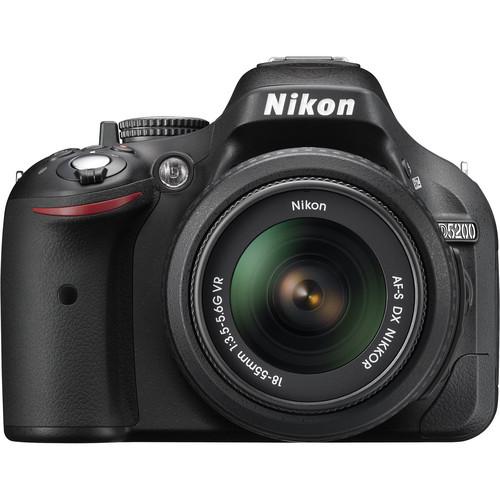

Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503
  • Manufacturer: Nikon
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - DSLR Cameras
  • Safety instructions
  • Startup and operation of the dslr cameras
  • Tips for setting up your Nikon
  • Settings and expert assistance
  • Contact Nikon service
  • Troubleshooting
  • Warranty information
  • Price: 500 USD
We recommend checking out our discussion threads on the Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503, which address similar problems with connecting and setting up DSLR Cameras Nikon.



User manual for the Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503

The user manual for the Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503 provides necessary instructions for the proper use of the product Photography - Digital Cameras - DSLR Cameras.

The Nikon D5200 DSLR Camera features a 24.1MP DX-format CMOS sensor and EXPEED 3 image processor to produce high quality imagery while delivering fast performance to all camera functions. The combination of these two technologies is a native sensitivity up to ISO 6400, which is then further expandable to ISO 25600. The processing speed of the EXPEED 3 also contributes to a fast continuous shooting rate of 5fps.

A 39-point autofocus system enables the D5200 to acquire precise focus quickly across the image frame, and nine cross-type points are centrally located to give even more accurate focusing abilities to critical subject matter. In regard to exposure handling, a 2,016-pixel RGB sensor is utilized by Nikon's Scene Recognition System to analyze both color and brightness values within a scene to best determine exposure settings as well as white balance, i-TTL, and also focus settings.

HD video recording is supported in multiple frame rates and formats up to full HD 1920 x 1080 at 60 fps. Manual exposure control is possible during recording through modifying the shutter speed or ISO settings and continuous auto focusing is also possible when working with the full-time servo AF mode. Audio can be recorded using the built-in stereo microphone or through the use of an optional external microphone, both of which can be manually controlled across 20 levels during recording.

Image playback and live view monitoring is possible with the 3.0" 921k-dot LCD monitor, which features tilt and swivel capabilities for better use at high or low angles. For eye-level viewing, a pentamirror optical viewfinder is built-in for viewing and composing scenes quickly and intuitively.

The D5200 features a variety of built-in imaging technologies, such as Active D-Lighting and HDR capabilities, to further enhance the look of your imagery while shooting. Scene modes, Picture Control, and Special Effects can also be applied to imagery to give a more creative, aesthetic appearance to your work. For instantly sharing your photos and video, the D5200 is compatible with the WU-1a Wireless Mobile Adapter (optional) for wirelessly connecting your camera to an Android or iOS mobile device.

Included with the camera body is the AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR lens, which is equivalent to a 27-82.5mm lens in the 35mm format. This 3x zoom range gives a highly usable range of focal lengths to suit most shooting applications. The lens construction has been optimized for DX-sized sensors and is a compact, lightweight lens that is ideal for traveling. A Silent Wave Motor provides smooth auto focusing while the incorporation of Vibration Reduction (VR) image stabilization helps to compensate for the effects of camera shake in order to produce a sharper image.
If you own a Nikon dslr cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503Download user manual for Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503
(PDF file, 23.94 MB)
Additional parameters of the Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503:
Specifications
    Imaging
    Lens Mount Nikon F
    Camera Format DX / (1.5x Crop Factor)
    Pixels Actual: 24.71 Megapixel
    Effective: 24.1 Megapixel
    Max Resolution 6000 x 4000
    Aspect Ratio 3:2
    Sensor Type / Size CMOS, 23.5 x 15.6 mm
    File Formats Still Images: JPEG, RAW
    Movies: MOV, MPEG-4 AVC/H.264
    Audio: Linear PCM
    Bit Depth 14-bit
    Dust Reduction System Yes
    Memory Card Type SD
    SDHC
    SDXC
    Focus Control
    Focus Type Auto & Manual
    Focus Mode Continuous-servo AF (C), Focus Lock AF Area Mode, Manual Focus (M), Single-servo AF (S)
    Autofocus Points 39
    Viewfinder/Display
    Viewfinder Type Pentamirror
    Viewfinder Coverage 95%
    Viewfinder Magnification Approx. 0.78x
    Diopter Adjustment - 1.7 to +0.7 m
    Display Screen 3" Rear Screen Swivel  LCD (921,000)
    Screen Coverage 100%
    Diagonal Angle of View 170.0°
    Exposure Control
    ISO Sensitivity Auto, 100-6400 (Extended Mode: 100-25600)
    Shutter Type: Charge-coupled Electronic
    Speed: 30 - 1/4000 second
    Remote Control ML-L3 (Optional)
    Metering Method 3D Color Matrix Metering, Center-weighted average metering, Spot metering
    Exposure Modes Modes: Aperture Priority, Auto, Flash Off, Manual, Program, Shutter Priority
    Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps)
    White Balance Modes Auto, Cloudy, Custom, Daylight, Flash, Fluorescent, Incandescent, Preset Manual, Shade
    Flash
    Flash Modes Auto
    Auto/Red-eye Reduction
    Fill-in
    Off
    Red-eye Reduction
    Second-curtain Sync
    Slow Sync
    Slow Sync/Red-eye Reduction
    Built-in Flash Yes
    Guide No. 39' (11.89 m) ISO100
    Max Sync Speed Electronic Shutter: 1 / 200 seconds
    Flash Compensation -3 EV to +1 EV (in 1/3 or 1/2 EV steps)
    Dedicated Flash System iTTL
    External Flash Connection Hot Shoe
    AV Recording
    Video Recording Yes, NTSC/PAL
    File Size 1920 x 1080i (Full HD)
    1920 x 1080p (Full HD)
    1280 x 720p (HD)
    640 x 424p (SD)
    Aspect Ratio 16:9
    Frame Rate @ 1920 x 1080: 60 fps, 30 fps, 24 fps
    @ 1920 x 1080: 50 fps, 25 fps
    @ 1280 x 720: 60 fps, 50 fps
    @ 640 x 424: 30 fps, 25 fps
    Exposure Control Auto: Shutter Speed, Aperture, ISO
    Manual: Shutter Speed, ISO
    ISO Sensitivity Auto, 200 - 6400
    Exposure Compensation -0 EV to +2 EV (in 1/3, 2/3 or 1 EV steps)
    Focus Auto
    Manual
    Continuous Auto
    Audio Recording Optional External Mic: With Video, Stereo
    Performance
    Continuous Shooting Up to 5 fps
    Self Timer 2 seconds, 5 seconds, 10 seconds, 20 seconds
    Number of Shots: 1-9
    Interval Recording Yes
    Connectivity 1/8" Microphone
    HDMI C (Mini)
    USB 2.0
    Wi-Fi Capable Yes
    Power
    Battery 1x EN-EL14 Rechargeable Lithium-ion Battery Pack, 7.4 VDC, 1030 mAh
    Operating/Storage Temperature Operating
    32 to 104°F (0 to 40°C)
    Humidity: 0 - 85%
    Physical
    Dimensions (WxHxD) 5.1 x 3.9 x 3.1" / 129.0 x 98.0 x 78.0 mm
    Weight 1.22 lb / 555 g
    Kit Lens
    Focal Length 18 - 55mm
    Comparable DX Focal Length: 27 - 82.5 mm
    Aperture Maximum: f/3.5
    Minimum: f/22
    Angle of View 76° - 25.5°
    Minimum Focus Distance 11.02" (28 cm)
    Magnification 0.31x
    Elements/Groups 7/5
    Diaphragm Blades 7
    Autofocus Yes
    Image Stabilization Yes
    Filter Thread Front: 52 mm
    Dimensions (DxL) Approx. 2.78 x 2.91" (70.5 x 74 mm)
    Weight 7.23 oz (205 g)
    Packaging Info
    Package Weight 3.8 lb
    Box Dimensions (LxWxH) 13.0 x 7.0 x 5.0"
    B&H Hands-on Learning Videos
    1. Introduction 3:10
    2. Image Quality 2:13
    3. White Balance 3:22
    4. Exposure 8:36
    5. Focus Modes 3:23
    6. Image Playback 2:27
    7. Flash 2:55
    8. Metering 1:16
    9. Shooting Video 4:59
    10. Quick Tips 4:17
    11. Troubleshooting 1:17
    Nikon D5200 Demo
    Features of DSLR
    The user manual for the Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503 can be downloaded in .pdf format if it did not come with your new dslr cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nikon users keep a unique electronic library for Nikon dslr camerass, where you can use our link to download the user manual for the Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503.

    The user manual lists all of the functions of the Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503, all the basic and advanced features and tells you how to use the dslr cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nikon service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nikon D5200 DSLR Camera with 18-55mm Lens (Black) 1503. User manuals are also available on the Nikon website under Photography - Digital Cameras - DSLR Cameras.
