User manual Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488

Operating instructions and pdf manual for use - Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488 User manual, User manual Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488, Nikon, D5300, DSLR, Camera, with, 18-55mm, 55-30


User manual for Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488
  • Manufacturer: Nikon
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - DSLR Cameras
  • Safety instructions
  • Startup and operation of the dslr cameras
  • Tips for setting up your Nikon
  • Settings and expert assistance
  • Contact Nikon service
  • Troubleshooting
  • Warranty information
  • Price: 847 USD
Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488 Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488 Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488 Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488 Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488 Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488 Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488
Click to enlarge image

We recommend checking out our discussion threads on the Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488, which address similar problems with connecting and setting up DSLR Cameras Nikon.



User manual for the Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488

The user manual for the Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488 provides necessary instructions for the proper use of the product Photography - Digital Cameras - DSLR Cameras.

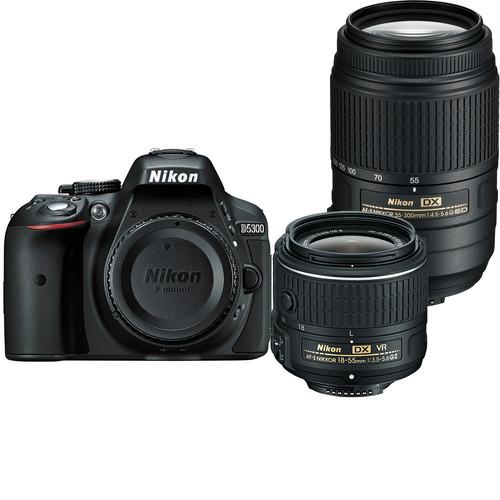

Pairing the sleek DSLR with a pair of versatile zooms, the D5300 DSLR Camera with 18-55mm and 55-300mm Lenses Kit from Nikon includes the camera body, a standard zoom lens, and a telephoto zoom lens, as well as a 32GB SDHC memory card and card holder, protective camera bag with faux leather trim, and a Nikon DVD. This kit includes all of the necessary components needed to begin photographing, along with a duo of lenses to suit working in a variety of conditions.

The D5300 features a DX-format 24.2 megapixel CMOS sensor and an EXPEED 4 image processor to produce high-resolution still imagery and full HD video with notable low-light sensitivity to ISO 25600 and a fast continuous shooting rate of 5 fps. The sensor's design omits the traditional optical low-pass filter in order to gain the utmost sharpness and resolution from both photos and videos. Complementing the imaging assets are both a versatile 39-point autofocus system, with nine cross-type sensors, and a 2,016-pixel RGB sensor for precise exposure metering in a wide variety of lighting conditions. Additionally, the sleek body design incorporates a large vari-angle 3.2" 1,037k-dot LCD monitor and built-in Wi-Fi with GPS allows you to wirelessly transfer photos and remotely control the camera from a mobile device, as well as embed location data into your image files.

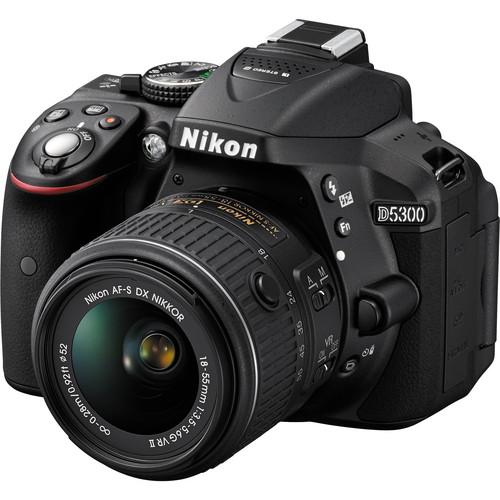

Included with the D5300 camera body is the AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR II lens; a standard zoom providing a 27-82.5mm equivalent focal length range. This lens incorporates a robust VR image stabilization system, which helps to minimize the appearance of camera shake by up to four shutter speed stops to benefit working in low-light conditions. Complementing this standard zoom, the AF-S DX NIKKOR 55-300mm f/4.5-5.6G ED VR is also included, and provides an 82.5-450mm equivalent focal length range. This lens incorporates two extra-low dispersion elements and one high refractive index element to control aberrations and distortions throughout the zoom range. This telephoto zoom also features VR image stabilization, which compensates for up to three stops of camera shake for sharper handheld shooting. Additionally, both lenses feature a Super Integrated Coating, which reduces flare and ghosting to optimize image clarity, contrast, and color neutrality.
If you own a Nikon dslr cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488Download user manual for Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488
(PDF file, 6.66 MB)
Additional parameters of the Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488:
Specifications

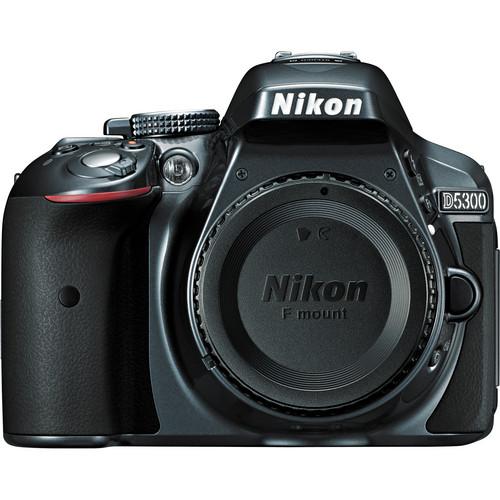

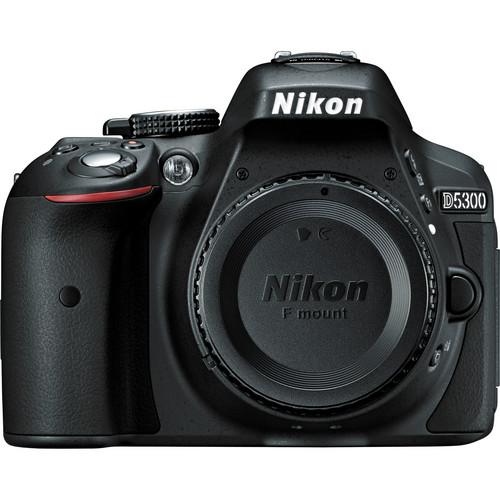

  • D5300 DSLR Camera (Body Only, Black)
    Imaging
    Lens Mount Nikon F
    Camera Format DX / (1.5x Crop Factor)
    Pixels Actual: 24.78 Megapixel
    Effective: 24.2 Megapixel
    Max Resolution 24 MP: 6000 x 4000
    Aspect Ratio 3:2
    Sensor Type / Size CMOS, 23.5 x 15.6 mm
    File Formats Still Images: JPEG, RAW
    Movies: MOV, MPEG-4 AVC/H.264
    Audio: Linear PCM
    Bit Depth 14-bit
    Dust Reduction System Yes
    Memory Card Type SD
    SDHC
    SDXC
    Focus Control
    Focus Type Auto & Manual
    Focus Mode Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S)
    Autofocus Points Phase Detection: 39
    Viewfinder/Display
    Viewfinder Type Pentamirror
    Viewfinder Coverage 95%
    Viewfinder Magnification Approx. 0.82x
    Diopter Adjustment - 1.7 to +1 m
    Display Screen 3.2" Rear Screen Swivel  LCD (1,037,000)
    Screen Coverage 100%
    Diagonal Angle of View 170.0°
    Exposure Control
    ISO Sensitivity Auto, 100-12800 (Extended Mode: 100-25600)
    Shutter Type: Electronic & Mechanical
    Speed: 30 - 1/4000 second,  Bulb Mode
    Remote Control MC-DC2 (Optional)
    Mirror Lock-Up Yes
    Metering Method 3D Color Matrix Metering, Center-weighted average metering, Spot metering
    Exposure Modes Modes: Aperture Priority, Auto, Manual, Programmed Auto, Scene Modes, Shutter Priority
    Metering Range: EV 0.0 - EV 20.0
    Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps)
    White Balance Modes Auto, Cloudy, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade
    Flash
    Flash Modes Auto
    Auto/Red-eye Reduction
    Fill-in
    Off
    Rear Curtain/Slow Sync
    Rear Sync
    Red-eye Reduction
    Slow Sync
    Slow Sync/Red-eye Reduction
    Built-in Flash Yes
    Guide No. 42.65' (13 m) ISO100
    Max Sync Speed 1 / 200 seconds
    Flash Compensation -3 EV to +1 EV (in 1/3 or 1/2 EV steps)
    Dedicated Flash System iTTL
    External Flash Connection Hot Shoe
    AV Recording
    Video Recording Yes
    File Size 1920 x 1080p (Full HD)
    1280 x 720p (HD)
    640 x 424p (SD)
    Aspect Ratio 16:9
    Frame Rate @ 1920 x 1080: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps
    @ 1280 x 720: 60 fps, 50 fps
    @ 640 x 424: 30 fps, 25 fps
    Exposure Control Auto
    Manual
    Focus Auto
    Manual
    Continuous Auto
    Video Clip Length 1920 x 1080
    @ 60 fps: 20 min.
    @ 30 fps: 29 min.
    Audio Recording Built-in Mic: With Video, Stereo
    Optional External Mic: With Video
    Performance
    Continuous Shooting Up to 5 fps
    Self Timer 2 seconds, 5 seconds, 10 seconds, 20 seconds
    Number of Shots: 1-9
    Interval Recording Yes
    Connectivity 1/8" Microphone, AV Output, HDMI C (Mini), USB 2.0
    Wi-Fi Capable Yes
    Power
    Battery 1x EN-EL14a Rechargeable Lithium-ion Battery Pack, 7.2 VDC, 1230 mAh
    AC Power Adapter EH-5b (Optional)
    Operating/Storage Temperature Operating
    32 to 104°F (0 to 40°C)
    Physical
    Dimensions (WxHxD) 4.9 x 3.9 x 3.0" / 125.0 x 98.0 x 76.0 mm
    Weight 1.06 lb / 480 g body only
    Packaging Info
    Box Dimensions (LxWxH) 8.6 x 6.7 x 5.3"
  • AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR II Lens
    Performance
    Focal Length 18 - 55mm
    Comparable 35mm Equivalent on DX Format Focal Length: 27 - 82.5 mm
    Aperture Maximum: f/3.5 - 5.6
    Minimum: f/22 - 36
    Camera Mount Type Nikon F
    Format Compatibility Nikon DX
    FX in DX Crop Mode
    Angle of View 76° - 28° 50'
    Minimum Focus Distance 9.84" (25 cm)
    Magnification 0.31x
    Elements/Groups 11/8
    Diaphragm Blades 7, Rounded
    Features
    Image Stabilization Yes
    Autofocus Yes
    Tripod Collar No
    Physical
    Filter Thread Front:52 mm
    Dimensions (DxL) Approx. 2.34 x 2.60" (59.5 x 66 mm)
    Weight 6.88 oz (195 g)
    Packaging Info
    Box Dimensions (LxWxH) 4.7 x 4.6 x 4.3"
  • AF-S DX NIKKOR 55-300mm f/4.5-5.6G ED VR Lens
    Performance
    Focal Length 55 - 300mm
    Comparable 35mm Equivalent on DX Format Focal Length: 82.5 - 450 mm
    Aperture Maximum: f/4.5 - 5.6
    Minimum: f/22
    Camera Mount Type Nikon F
    Format Compatibility Nikon DX
    FX in DX Crop Mode
    Angle of View 28° 50' - 5° 20'
    Minimum Focus Distance 4.6' (1.40 m)
    Magnification 0.28x
    Maximum Reproduction Ratio 1:4
    Elements/Groups 17/11
    Diaphragm Blades 9
    Features
    Image Stabilization Yes
    Autofocus Yes
    Tripod Collar No
    Physical
    Filter Thread Front:58 mm
    Dimensions (DxL) Approx. 3.0 x 4.8" (7.62 x 12.19 cm)
    Weight 18.7 oz (530 g)
    Packaging Info
    Box Dimensions (LxWxH) 9.5 x 5.0 x 5.0"
The user manual for the Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488 can be downloaded in .pdf format if it did not come with your new dslr cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nikon users keep a unique electronic library for Nikon dslr camerass, where you can use our link to download the user manual for the Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488.

The user manual lists all of the functions of the Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488, all the basic and advanced features and tells you how to use the dslr cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nikon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nikon D5300 DSLR Camera with 18-55mm and 55-300mm Lenses 13488. User manuals are also available on the Nikon website under Photography - Digital Cameras - DSLR Cameras.
