User manual for the Nimar Underwater Housing for Canon EOS 600D/Rebel T3i NI3DC600ZM
The user manual for the Nimar Underwater Housing for Canon EOS 600D/Rebel T3i NI3DC600ZM provides
necessary instructions for the proper use of the product Photography - Underwater Photography - Still Cameras & Housings.

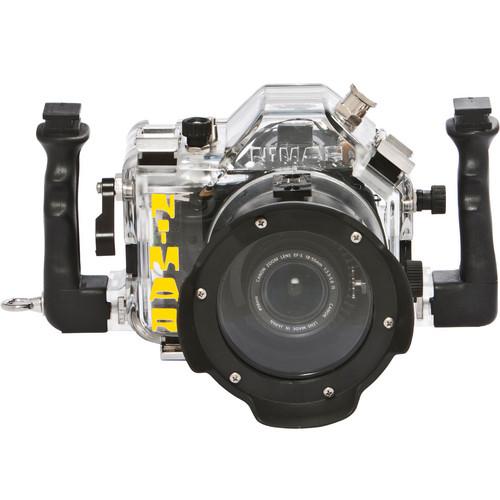

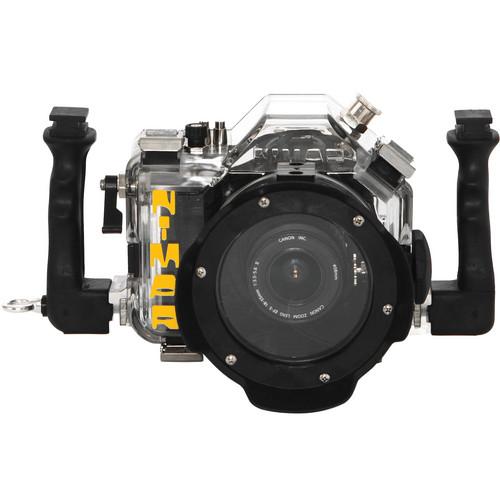

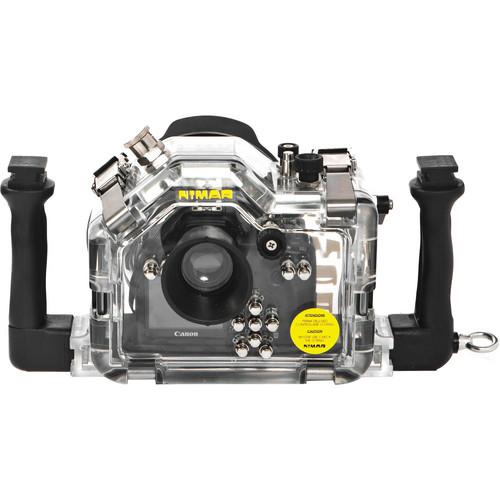

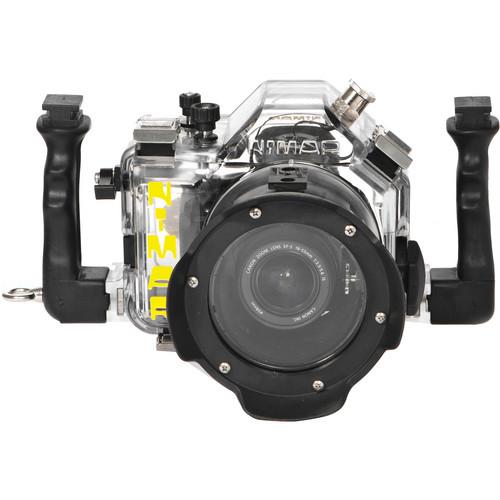

Capture detailed images of parrot fish, moray eels, and coral reefs at depths up to 197' with your Canon EOS 600D/Rebel T3i DSLR camera in this Underwater Housing from Nimar. The enclosure features a TTL 5-pin connector for optional external strobes. Mechanical controls allow easy access to virtually all camera functions, including on / off, shutter, exposure meter reading button, exposure compensation button, aperture / flash compensation, mode selection ring, delete, play, menu, white balance / info, help, photo protection button, ISO button, reduction in reproduction, magnification in reproduction / quality setting button, multi-selector, OK button, info, main control ring, and recording. Ergonomic side grip handles afford comfort and stability while maintaining access to controls.

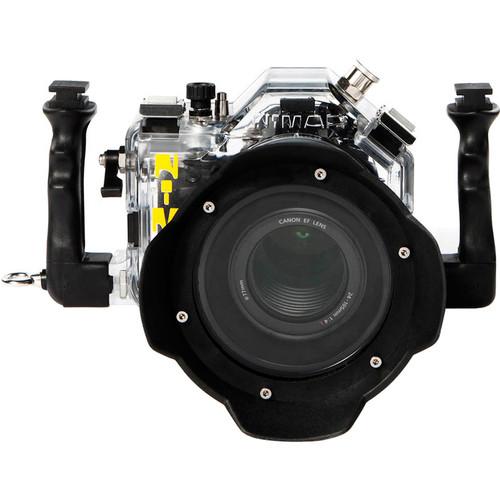

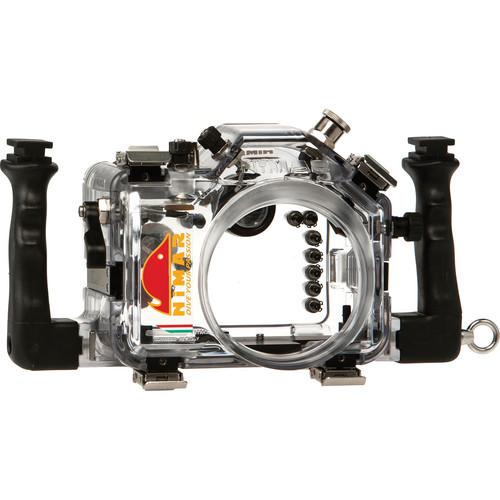

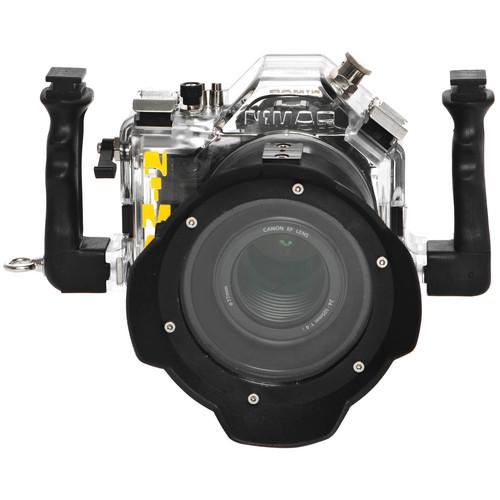

The housing includes a lens port with zoom control for the Canon EF-S 18-55mm f/3.5-5.6 IS Lens, and accepts optional interchangeable ports for a broad array of wide-angle, fisheye, macro, and zoom lenses. For compatibility, see Port Chart. Made of durable polycarbonate, the housing is clear to enable you to monitor the O-ring seal and maintain a full view of the camera. An integrated moisture alarm alerts you in the unlikely event of a breach in the waterproof seal. The stainless steel fasteners with safety catch clips help ensure a secure closure. Additionally, the housing is equipped with an optical viewfinder with 1.5x magnification. It also includes a galvanized key for regulating control levers, an Allen key for fastening handles, a toothed lens zoom ring, and an insert for mounting the camera.
If you own a Nimar still cameras & housings and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Nimar Underwater Housing for Canon EOS 600D/Rebel T3i NI3DC600ZM in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Nimar Underwater Housing for Canon EOS 600D/Rebel T3i NI3DC600ZM:
Specifications
Depth Rating
197' (60 m)
Control Type
Mechanical push-buttons, knobs, and lever
Controls
Provide access to virtually all camera functions, including on / off, shutter, exposure meter reading button, exposure compensation button, aperture / flash compensation, mode selection ring, delete, play, menu, white balance / info, help, photo protection button, ISO button, reduction in reproduction, magnification in reproduction / quality setting button, multi-selector, OK button, info, main control ring, and recording
Material of Construction
Housing Body: Black and clear Bayer Makrolon polycarbonate Port Body: Delrin acetal resin Fasteners with Safety Clips: Aisi 316 stainless steel Controls, Inserts, and Strobe Connector: Chromed brass
Lens Port
Supplied port and zoom gear for Canon EF-S 18-55mm f/3.5-5.6 IS Lens Flat front element Accepts optional, interchangeable, bayonet-mount ports for wide-angle, fisheye, macro, zoom lenses For compatibility, see Port Chart linked in Overview
Buoyancy
Slightly positive in water
External Flash Connector
TTL 5-pin connector for attaching optional external strobe via required sync cord
Viewfinder
Removable optical viewfinder with magnification of 1.5x
Moisture Alarm
Yes, installed
Mounting
T mounts on grip handles for optional lighting arms
Overall Dimensions
13.39 x 6.69 x 10.24" (34 x 17 x 26 cm) with handles, eyepiece, and eyepiece guard
Weight
5.95 lb (2.70 kg) with handles
