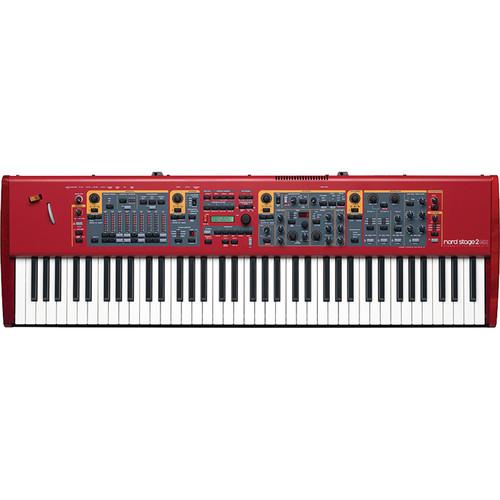

Click to enlarge image
We recommend checking out our discussion threads on the Nord Stage 2 EX 88 Keyboard NSTAGE2-EX-88,
which address similar problems with connecting and setting up Stage Pianos & Organs Nord.
User manual for the Nord Stage 2 EX 88 Keyboard NSTAGE2-EX-88
The user manual for the Nord Stage 2 EX 88 Keyboard NSTAGE2-EX-88 provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Stage Pianos & Organs.
The Stage 2 EX 88 Keyboard from Nord is a professional piano, organ, and synthesizer instrument designed with a well-thought-out user interface, and an 88-key fully weighted hammer-action keybed. It can be used to play sounds in various environments for audio applications such as live stage, theater, recording studios, houses of worship, and more.
If you own a Nord stage pianos & organs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Nord Stage 2 EX 88 Keyboard NSTAGE2-EX-88 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Nord Stage 2 EX 88 Keyboard NSTAGE2-EX-88:
Specifications
General
Master level control Wooden pitch stick Modulation wheel 400 programs - 4 banks with 20 pages each. Each page has 5 program locations Program categories Program Sort Modes: Numerical, alphabetical or by category 5 live buffers 2 individual slot setups 3 morph sources (modulation wheel, control pedal, aftertouch) Global mono output Programmable transpose +/- 6 semitones Master clock functionality with manual, external and tap-tempo rate control Internal and MIDI clock source MIDI over USB functionality
Organ Section
B3 Tone Wheel organ, Vox Continental and Farfisa models with full polyphony 9 digitally controlled drawbars Percussion controls Vibrato / chorus control Two drawbar settings per program 2-part multitimbral (2 manuals)
Piano Section
1 GB memory for piano sounds Acoustic grand pianos Upright pianos Electric pianos Synth Pianos Wurlitzer A200 electric piano Clavinet D6 Harpsichords Electric grand pianos includes CP-80 electric grand 40-60 voices polyphony 4 selectable velocity curves Clavinet EQ controls String resonance (Generation 2) on acoustic Grand Pianos and Uprights Selectable piano release Pedal Noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos Slot Detune functionality 2-part multitimbral
Synth Section
Sample Playback Synthesis: Approx. 380 Megabytes of sample memory, up to 999 Sample Instruments Analog Synthesis: Multiple waveforms including dual saw, hard sync and PWM FM Synthesis: 2 & 3 operator FM synthesis Wavetables Synthesis: 62 waveforms 18 voices polyphony Unison control - with no reduction in polyphony Amplitude envelope Modulation envelope 12/24 dB low pass, high pass, band pass and notch filter with resonance LFO with 4 waveforms (square, triangle, ramp and sample & hold) 300 patch memory locations, 3 categories Arpeggiator (Up, Down, Up-Down and Random), Range: 1, 2, 3 or 4 octaves LFO and Arpeggiator synchronizable to Master Clock 2-part multitimbral
Common Parameters
Level Control Zone (split assignment) control
Effects
Effect 1: Ring modulator, tremolo, pan, wah, autowah 1, autowah 2 Effect 2: Flanger, vibe, 2 phasers, and 2 choruses Delay: With ping pong (stereo taps) and tap-tempo 3 types of speaker simulations: JC, twin and small Tube amp simulation with adjustable overdrive 3-band equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz Rotary Speaker: Selectable speed (stop, slow and fast) and separate overdrive Effect rates/tempo can be synchronized to the master clock
Master Effects
Compressor Reverb - 5 algorithms
Keyboard
HA88-Model: 88-key fully weighted hammer-action velocity-sensitive keyboard. Range: A-C Aftertouch, supports 3 split zones with a visual LED indication
Connections
4 Assignable Audio Outputs: 1/4" (6.3 mm) jacks, unbalanced Stereo Headphone Output: 1/4" (6.3 mm) stereo jack 1 Monitor Input: 1/8" (3.5 mm) stereo jack Sustain Pedal: 1/4" (6.3 mm) jack uses a momentary pedal, like e.g. Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25, etc. Sustain input compatible with Nord Triple Pedal (sold separately) Rotor Pedal: 1/4" (6.3 mm) jack. Use a momentary pedal or a switch-type pedal Organ Swell Pedal: 1/4" (6.3 mm) TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5, etc. Control Pedal: 1/4" (6.3 mm) TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5, etc. MIDI In: 5-pin DIN connectors MIDI Out: 5-pin DIN connectors USB: type B connector Power Cord with IEC C14 connector
The user manual for the Nord Stage 2 EX 88 Keyboard NSTAGE2-EX-88 can be downloaded in .pdf
format if it did not come with your new stage pianos & organs, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Nord users keep a unique electronic library
for Nord stage pianos & organss,
where you can use our link to download the user manual for the Nord Stage 2 EX 88 Keyboard NSTAGE2-EX-88.
The user manual lists all of the functions of the Nord Stage 2 EX 88 Keyboard NSTAGE2-EX-88,
all the basic and advanced features and tells you how to use the stage pianos & organs.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Nord service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Nord Stage 2 EX 88 Keyboard NSTAGE2-EX-88. User manuals are also
available on the Nord website under Pro Audio - Musical Instruments - Stage Pianos & Organs.
