User manual Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636

Operating instructions and pdf manual for use - Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636 User manual, User manual Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636, Onkyo, TX-NR636, 7.2-Channel, Network, AV, Receiver, TX-NR636,

User manual for Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

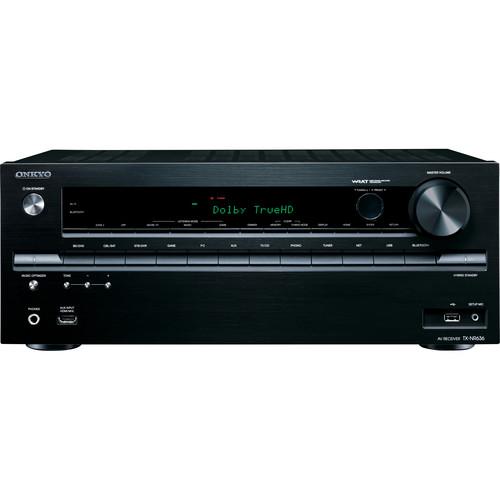

Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636
  • Manufacturer: Onkyo
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Receivers & Amplifiers - Receivers
  • Safety instructions
  • Startup and operation of the receivers
  • Tips for setting up your Onkyo
  • Settings and expert assistance
  • Contact Onkyo service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636, which address similar problems with connecting and setting up Receivers Onkyo.


User manual for the Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636

The user manual for the Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636 provides necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Receivers.

The Onkyo TX-NR636 7.2-Channel Network AV Receiver is well-equipped for high-resolution audio and video playback. This 7.2-channel receiver supports dual subwoofer outputs and delivers up to 165W per channel at 6 ohms for dynamic audio playback. Built-in Bluetooth allows you to wirelessly connect to other Bluetooth-enabled audio sources such as computers, smartphones and tablets. Onboard Wi-Fi and Ethernet connectivity gives you the ability to stream music from Internet radio sources and use DLNA technology to share content with compatible networked devices. You can also connect audio high-resolution audio sources to the receiver's front panel USB.

The Onkyo TX-NR636 has seven HDMI inputs for interfacing audio and video sources. This receiver supports 3D and 4K video pass-through, and utilizes Qdeo technology to upscale lower resolution video sources to near-4K quality. The integrated graphical user interface allows you intuitively navigate the receiver's menu system. Onkyo also offers a free remote app for controlling your receiver from a smartphone or tablet. Built-in high-resolution audio support allows you to take advantage of dynamic surround sound formats like DTS-HD and DolbyTrueHD.
If you own a Onkyo receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636Download user manual for Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636
(PDF file, 16.97 MB)
Additional parameters of the Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636:
Specifications
    Audio
    Channels 7.2
    Power Output All Channels
    95 W per Channel (8 Ohms, 20 Hz - 20 kHz, 0.08 % THD, 2-channels driven, FTC)
    165 W per Channel (6 Ohms, 1 kHz, 0.9 % THD, 1-channel driven, FTC)
    Dynamic Power per Channel 240 W (3 Ohms, front)
    210 W (4 Ohms, front)
    120 W (8 Ohms, front)
    THD & Noise 0.08 % (20 Hz - 20 kHz, half power)
    Damping Factor 60 (Front, 1 kHz, 8 Ohms)
    Input Sensitivity and Impedance 200 mV / 47 k-ohms (line)
    2.5 mV / 47 k-ohms (phono MM)
    RCA Output Level and Impedance Rated: 200 mV / 2.2 k-ohms (line out) Maximum: 2.0 V / 2.2 k-ohms (line out)
    Phono Overload 70 mV (MM, 1 kHz, 0.5%)
    Frequency Response 5 Hz - 100 kHz / +1 dB, -3 dB (direct mode)
    Tone Control +/- 10 dB, 20 Hz (bass) +/- 10 dB, 20 kHz (treble)
    Signal-to-Noise Ratio 106 dB (line, IHF-A)
    80 dB (phono MM, IHF-A)
    Speaker Impedance 6 - 16 ohms
    Digital to Analog Converter TI Burr-Brown 192 kHz / 24-Bit DAC (all-channels)
    Crossover Adjustment Each Channel: 40, 50, 60, 70, 80, 90, 100, 120, 150, 200 Hz
    Video
    Input Sensitivity/Output Level and Impedance 1.0 Vp-p / 75 Ohms (component Y)
    0.7 Vp-p / 75 Ohms (component PB / CB, PR / CR)
    1.0 Vp-p / 75 Ohms (composite)
    Component Video Frequency Response 5 Hz - 100 MHz / +0 dB, -3 dB
    Upscaling Yes
    3D Support Yes
    Deep Color / xvYCC Support Yes
    HDMI CEC Yes
    FM Stereo
    Tuning Frequency Range FM: 87.5 MHz - 107.9 MHz
    AM: 530 kHz - 1,710 kHz
    FM/AM Preset Memory 40 Stations
    Connectivity
    Wi-Fi Yes
    DLNA Certified Version: 1.5
    Bluetooth Version: 2.1 + EDR
    Profiles: : A2DP v1.2, AVRCP v1.3
    Bi-Amp Capability Yes
    Audio Return Channel (ARC) Yes
    MHL Yes
    Inputs 7 x HDMI (1 Front)
    1 x Component Video
    3 x Composite Video
    2 x Digital Coaxial
    1 x Digital Optical
    7 x Stereo RCA
    1 x USB
    Outputs 2 x HDMI
    1 x Component Video
    1 x Composite Video
    1 x Stereo RCA (Zone 2)
    2 x Subwoofer
    Other Interfaces 1 x Ethernet
    1 x RI Remote Control
    1 x Calibration Microphone
    1 x AM Antenna
    1 x FM Antenna
    Speaker Connectors Center
    Front (L + R)
    Surround (L + R)
    Surround Back (L + R )
    Zone 2 (L + R)
    General
    Power Consumption 6.3 A
    No Sound: 80 W
    Standby: 0.1 W
    Power Requirements 120 VAC, 60 Hz
    Dimensions (WxHxD) 17.1 x 6.8 x 12.9" (434 x 173 x 328 mm)
    Weight 22 lb (10 kg)
    Packaging Info
    Package Weight 27.55 lb
    Box Dimensions (LxWxH) 22.2 x 16.8 x 11.6"
    ONKYO - TX-NR636 Network A/V Receiver
    The user manual for the Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636 can be downloaded in .pdf format if it did not come with your new receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Onkyo users keep a unique electronic library for Onkyo receiverss, where you can use our link to download the user manual for the Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636.

    The user manual lists all of the functions of the Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636, all the basic and advanced features and tells you how to use the receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Onkyo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Onkyo TX-NR636 7.2-Channel Network AV Receiver TX-NR636. User manuals are also available on the Onkyo website under TVs & Entertainment - Receivers & Amplifiers - Receivers.
