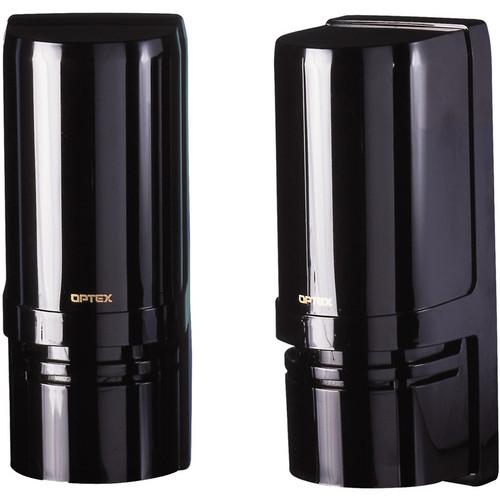

The Optex AX-200 PLUS Standard Version Short-Range Photoelectric Detector provides stable performance against false alarms for effective outdoor detection and non-security applications. This detector provides a wide range of functions that helps simplify the installation process. In addition, it maintains a reliable performance even in adverse weather or environmental conditions.
If you own a Optex photoelectric beams and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Optex AX-200 PLUS Standard Version Short-Range AX-200 PLUS in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Optex AX-200 PLUS Standard Version Short-Range AX-200 PLUS:
Specifications
Detection Method
Infrared photoelectric
Coverage
Outdoor: 200' (60 m) Indoor: 400' (120 m)
Maximum Distance
Arrival: 2,000' (600 m)
Beams
Pulsed infrared
Interrupt Levels
Period: 50 to 500 msec (selectable)
Power Supply
10.5 to 28 VDC
Current Consumption
Normal operation 46 mA maximum
Alarm Period
2sec (±1) nominal
Alarm Output
Form C Relay (28 VDC, 0.2 A maximum)
Switch
Tamper: N.C. opens when cover is removed (Receiver Only)
