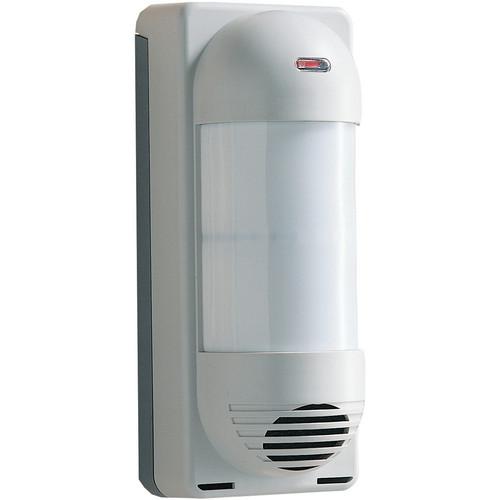

The VX-402 Wired Multi Stabilized Outdoor Detector from Optex is a 40 x 40' hardwired detector that provides the necessary stability and reliability for an outdoor PIR sensor. False alarms from animals as well as environmental nuisances are greatly reduced with its design and dual PIR detectors. The detector's dual PIR's create 2 detection areas (upper and lower) that must be simultaneously compromised in order to go into alarm. In addition, the detection length can be limited to avoid unwanted detection. By limiting the detection range, false alarms due to unwanted movement such as cars, persons, or animals outside the protected area can be eliminated.
If you own a Optex motion detectors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Optex VX-402 Wired Multi Stabilized Outdoor Detector VX-402 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Optex VX-402 Wired Multi Stabilized Outdoor Detector VX-402:
Specifications
Technology
Passive Infrared
Installation
Commercial, Industrial, Residential
Zones
Approach Detection Zones: 14
Mounting Height
2.7 to 4.0' (0.8 to 1.2 m)
Sensitivity
3.6̊F (-15.7̊C) at 0.6 m/s
Speed
Detectable Speed: 0.9 to 4.0 ft/s (0.3 to 1.5 m/s)
Wire Gauge
AWG 22 (0.33 mm2)<br>
At 12 V: 670' (200 m) <br>
At 14 V: 1,330' (400 m)<br>
AWG 20 (0.52 mm2)<br>
At 12 V: 1,130' (340 m)<br>
At 14 V: 2,130' (640 m)<br>
AWG 18 (0.83 mm2)<br>
At 12 V: 1,700' (510 m)<br>
At 14 V: 3,400' (1,020 m)<br>
Power Supply
9.5 to 18 VDC
Current Consumption
Normal: 25 mA, Maximum: 28 mA (N.C.) Normal: 10 mA, Maximum: 35 mA (N.O.)
Alarm Period
2 ± 1 sec
Alarm Output
Selectable N.C./N.O.: 28 VDC 0.2A maximum
Switch
Tamper Switch: N.C. opens when cover removed
Count Period
20 ± 5 sec. 2 or 4
Warm-Up Period
Approximately 30 sec (LED blinks)
Volume
Volume of Audible: 75 dB
LED Indicator
LED is blinking during warm-up period Alarm Condition Recording condition
