User manual for the Palmer PDI 03 Speaker Simulator and Loadbox (8 ohms) PDI03
The user manual for the Palmer PDI 03 Speaker Simulator and Loadbox (8 ohms) PDI03 provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Guitar Accessories - General Guitar Accessories.

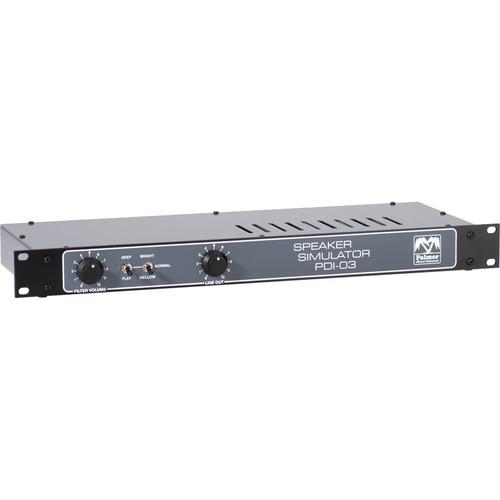

The PDI 03 Speaker Simulator and Loadbox from Palmer is designed to combine load impedance, a signal splitter, and DI box into one device specifically designed for use with guitars. Instead of being connected to a loudspeaker, the PDI 03 connects directly to the amplifier output allowing power amplifiers to be operated to saturation without troublesome volume problems. Two switches are featured on the front of the device for shaping the simulation sound. Nine filter presets are featured for adjusting the cabinet size and general sound. A front knob allows you to control the level of the filter output. Four unsimulated line outputs are included in the back of the device for sending the signal to effect units, or to take it to your recording device to apply software-based simulation as opposed to using the simulated output. For live monitoring, speakers may be connected while the reactive load is automatically switched off. The power handling capacity of the device is 100W RMS without speakers.
If you own a Palmer general guitar accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Palmer PDI 03 Speaker Simulator and Loadbox (8 ohms) PDI03 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Palmer PDI 03 Speaker Simulator and Loadbox (8 ohms) PDI03:
Specifications
Type
Passive speaker simulator
Input Type
Unbalanced
Input Connections
1 x 6.3 mm jack
Output Type
Balanced, unbalanced
Output Connectors
1 x XLR 1 x 6.3 mm jack 4 x Line out
Output Impedance
600 ohms (XLR), 10 kOhms (6.3 mm Jack)
Dummy Impedance
8 ohms
Maximum Load
100 W
Controls
Voicing, line out, filter volume
Material
Powder-coated sheet steel
Dimensions (WxDxH)
18.9 x 7.1 x 1.8" / 480.0 x 180.0 x 44.5 mm
Weight
6.6 lb / 3.0 kg
