User manual for the Panasonic AG-HPD24PJ Solid-State Portable P2 Deck AG-HPD24PJ

The user manual for the Panasonic AG-HPD24PJ Solid-State Portable P2 Deck AG-HPD24PJ provides necessary instructions for the proper use of the product Professional Video - Recorders & Duplication - P2 & XDCAM Players/Recorders.

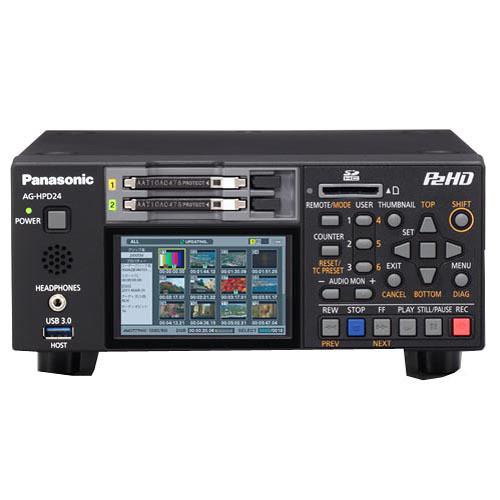

The Panasonic AG-HPD24PJ Solid-State P2 Portable Deck is a lightweight (at 4.4 lb) yet extremely powerful recording device for professional HD production. With outputs for HDMI and HD-SDI as well as composite video, the 1/2 rack-wide, 2 RU-high HPD24PJ deck can serve a versatile monitoring station as well as the heart of a logging station for production in the studio or, with its included battery, in the field.
