User manual Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU

Operating instructions and pdf manual for use - Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU User manual, User manual Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU, Panasonic, PT-DW17KU, Large, Venue, 3-Chip, DLP,


User manual for Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU

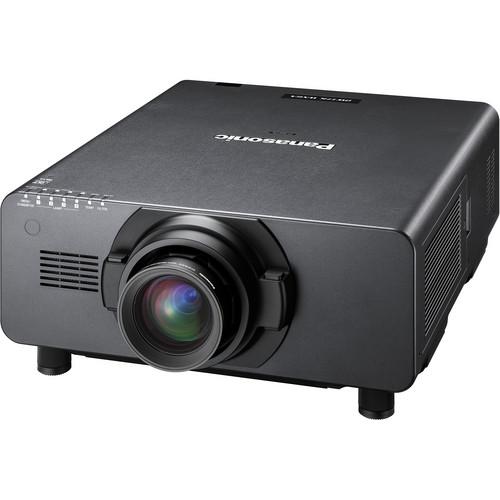

Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU, which address similar problems with connecting and setting up Multimedia Projectors Panasonic.



User manual for the Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU

The user manual for the Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The PT-DW17KU Large Venue 3-Chip DLP Projector, from Panasonic is ideally suited for fixed installations and public display venues including independent cinema, live events, educational institutions, staging, and public advertising as well as premium home theatre applications. This unique Panasonic technology optimizes image quality to improve the color perception of the projected image in bright rooms. It provides highly comfortable viewing even in bright lighting, and allows viewers to concentrate easily on the images. Featuring Texas Instruments DLP and WXGA (1366 x 768), the PT-DW17KU projector delivers outstanding 17,000 lumen brightness and 10,000:1 contrast ratio. The four-lamp system allows the projector to keep working even if a lamp should fail. The lamp relay mode also operates the lamps alternately to enable 24/7 projection.
If you own a Panasonic multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KUDownload user manual for Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU
(PDF file, 17.83 MB)
Additional parameters of the Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU:
Image Display
Display System 3-Chip 0.85" DLP
Native Resolution WXGA - 1366 x 768
Supported Resolutions VGA - 640 x 480
WUXGA - 1920 x 1200
Format NTSC 4.43
PAL 60, M, N
SECAM
HDTV Compatibility 720p
1080i
Pixels 3,147,264
Brightness 17000 Lumens
Uniformity 90%
Aspect Ratio 16:9
Contrast Ratio 10000:1
DLP Link 3D Yes
Color Range Not Specified By Manufacturer
Scan Horizontal: 15 - 100 kHz
Vertical: 24 - 120 Hz
Features
Keystone Correction Yes, Vertical: ± 40°
Picture-in-Picture None
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Built-in Speaker None
Input/Output Connectors
Inputs/Outputs 2x BNC Component Video (Input)
2x BNC Component Video (Output)
1x DVI-D Video (Input)
1x HDMI Audio/Video (Input)
1x BNC Composite Video (Input)
2x RS-232C Control (Input)
1x RS-232C Control (Output)
1x Ethernet LAN
1x M3 Control/Service (Input)
1x M3 Control/Service (Output)
1x Ethernet LAN
General
Lamp (Bulb) 4x UHM
Watts 465 W
Life Normal Mode: 2000 Hours
Fan Noise Normal Mode: 49 dB
Maximum Pixel Clock 162 MHz
Remote Control Yes
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Normal Mode: 2300 W
Standby Mode: .3 W
Altitude 0 - 1400' (0 - 426 m)
Temperature Operating
32 to 113°F (0 to 45°C)
Humidity: 20 - 80%
Dimensions (WxHxD) 24.4 x 11.5 x 31.5" / 620.0 x 291.0 x 800.0 mm Without optional lens
Weight 94.80 lb / 43 kg
Packaging Info
Package Weight 116.8 lb
Box Dimensions (LxWxH) 38.0 x 34.0 x 14.5"
The user manual for the Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic multimedia projectorss, where you can use our link to download the user manual for the Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU.

The user manual lists all of the functions of the Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector PT-DW17KU. User manuals are also available on the Panasonic website under A/V Presentation - Projectors - Multimedia Projectors.
