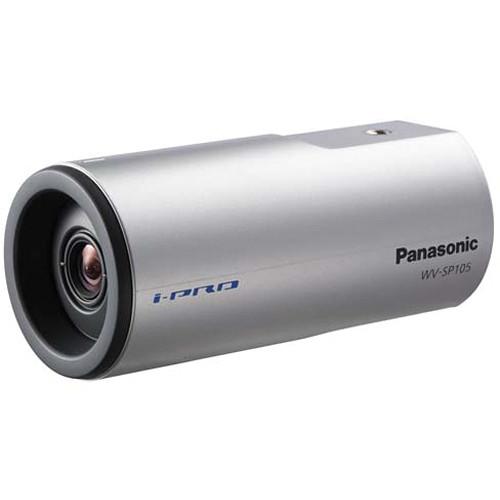

Panasonic WV-SP105 H.264 IP D/N HD Network Camera (NTSC)
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
  • Price: 205 USD
We recommend checking out our discussion threads on the Panasonic WV-SP105 H.264 IP D/N HD Network Camera (NTSC), which address similar problems with connecting and setting up Wired IP Cameras Panasonic.


User manual for the Panasonic WV-SP105 H.264 IP D/N HD Network Camera (NTSC)

The user manual for the Panasonic WV-SP105 H.264 IP D/N HD Network Camera (NTSC) provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The Panasonic WV-SP105 H.264 IP D/N HD Network Camera (NTSC) offers high-quality 24-hour video surveillance in both day and night time lighting conditions.

Designed for day/night surveillance, this network camera captures clear images at F/2.2 even in locations with a minimum illumination of 0.4 lux (B&W). The Adaptive Black Stretch technology increases visibility of subjects in dark areas of a video scene without compromising the image quality of brighter areas. Furthermore, with progressive scan technology, you can be sure to obtain blur-free images even when the object is in motion. In addition, the UniPhier LSI chip enables this network camera to simultaneously stream real-time imagery (in 1280 x 960 resolution) in H.264 and JPEG formats at 30 fps.

Enabled with 3D-Digital Noise Reduction, the camera removes signals that could result in grainy images. When any movement is detected, alarm sources, including VMD and Panasonic alarm command, trigger actions such as FTP image transfer and e-mail notification. Furthermore, the user-friendly GUI allows real-time images from 16 cameras to be displayed in 4 different quad screens or as JPEG images in a 16-split screen. Being Power over Ethernet (PoE) compliant, the camera can be installed almost anywhere and not only near a power supply.
If you own a Panasonic wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic WV-SP105 H.264 IP D/N HD Network Camera (NTSC) in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Panasonic WV-SP105 H.264 IP D/N HD Network Camera (NTSC)Download user manual for Panasonic WV-SP105 H.264 IP D/N HD Network Camera (NTSC)
(PDF file, 1.72 MB)
Additional parameters of the Panasonic WV-SP105 H.264 IP D/N HD Network Camera (NTSC):

Go To

Camera
Image Sensor 1/3 type MOS Sensor
Effective Pixels Approximately 1.3 megapixel
Scanning Mode Progressive Scan
Scanning Area H x V: 4.8 x 3.6 mm
Minimum Illumination Color: 0.8 lux, B&W: 0.4 lux at F2.2 (Shutter: 1/30 s, AGC: High)
Color: 0.05 lux, B&W: 0.03 lux at F2.2 (Shutter: 16/30 s, AGC: High)
White Balance AWC (2,000 to 10,000 K), ATW1 (2,700 to 6,000 K), ATW2 (2,000 to 6,000 K)
Light Control Mode Indoor (50 Hz): Automatic integration of ELC (up to 1/100 s)
Indoor (60 Hz): Automatic integration of ELC (up to 1/120 s)
ELC (Maximum Exposure Time) Off (1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000
Adaptive Black Stretch On / Off
Automatic Gain Control On (Low, Mid, High ) / Off
Electronic Sensitivity UP Off, 2/30, 3/30, 4/30, 6/30, 10/30, 16/30 s (Maximum)
Simple Day/Night Mode Auto / Off
Digital Noise Reduction (DNR) High / Low
Video Motion Detection 4 areas, sensitivity: 15 steps, detection size: 10 steps
Privacy Zone Up to 2 zones, Gray / Mosaic
Lens
Zoom Ratio 2x with extra zoom (under VGA)
Digital Zoom 4x (Maximum 8x combined with extra zoom under VGA)
Focal Length 3.54 mm
Maximum Aperture Ratio 1 : 2.2
Focusing Range 0.5 m to ∞
Angular Field of View H: 70.3°, V: 55.4°
Browser GUI
Display Mode Spot, Quad: Image from 16 cameras can be displayed in 4 different quad screens or 16 split screen (JPEG only)
Camera Title Up to 20 alphanumeric characters
Clock Display Time: 12 / 24H, Date: 5 formats on the browser, Summer time (Manual/Auto)
One Shot Capture A still picture will be displayed on a newly opened window
GUI/Setup Menu Language English, French (Installation required for French)
System Log Up to 100 (Internal)
Supported OS Microsoft Windows 7 Professional 64 / 32 bit
Microsoft Windows Vista Business SP1 32 bit
Microsoft Windows XP Professional SP3
The language of the OS must be same as selected GUI language
Supported Web Browsers Windows Internet Explorer 8.0 (Microsoft Windows 7 Professional 64/32 bit)
Windows Internet Explorer 7.0 (Microsoft Windows Vista Business SP1 32 bit)
Microsoft Internet Explorer 6.0 SP3 (Microsoft Windows XP Professional SP3)
Network
Network IF 10Base-T / 100Base-TX, RJ-45 connector
Aspect Ratio 4:3
H.264: 1,280 × 960 / VGA (640 × 480) / QVGA (320 × 240), up to 30 fps
JPEG (M-JPEG): 1,280 × 960 / VGA (640 × 480) / QVGA (320 × 240), up to 30 fps
16:9
H.264: 1,280 × 720 / 640 × 360 / 320 × 180, up to 30 fps
JPEG (M-JPEG): 1,280 × 720 / 640 × 360 / 320 × 180, up to 30 fps
Transmission mode Constant bitrate / Framerate priority
Frame Rate H.264 1 / 3 / 5 / 7.5 / 10 / 15 / 20 / 30 fps
Bit Rate/Client 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 8192 kbps / Unlimited
Image Quality Low / Normal / Fine
Refresh Interval 0.1 to 30 fps
Transmission Types Unicast / Multicast
Image Quality 10 steps
Transmission Types JPEG (MJPEG): Pull / Push
Total Bit Rate 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
Supported Protocols IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP, SNMP
IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP
FTP Client Alarm image transfer, Periodic image transfer
Maximum Concurrent Access Number Up to 14 users

Depends on network conditions
Alarm
Alarm Source VMD, Command alarm
Alarm Actions E-mail notification, indication on browser, FTP image transfer, Panasonic protocol output
Schedule VMD / Access permission
General
Safety/EMC Standard UL (UL60950), FCC (Part15 Class A), C-UL (CAN/CSA C22.2 No.60950), DOC (ICES003 Class A)
Power Source and Consumption 12 VDC: approximately 200 mA
PoE: approximately 2.8 W (IEEE802.3af compliant, Class 2 device)
Ambient Operating Temperature 32 to 104°F (0 to +40°C)
Ambient Operating Humidity 90 % or less (without condensation)
Dimensions (W x H x D) 2.15 x 2.15 x 4.81" (55 x 55 x 122 mm)

Excluding connectors/terminals
Weight 0.40 lb (180 g)
Packaging Info
Package Weight 0.97 lb
Box Dimensions (LxWxH) 7.8 x 5.8 x 4.1"
The user manual for the Panasonic WV-SP105 H.264 IP D/N HD Network Camera (NTSC) can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic wired ip camerass, where you can use our link to download the user manual for the Panasonic WV-SP105 H.264 IP D/N HD Network Camera (NTSC).

The user manual lists all of the functions of the Panasonic WV-SP105 H.264 IP D/N HD Network Camera (NTSC), all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic WV-SP105 H.264 IP D/N HD Network Camera (NTSC). User manuals are also available on the Panasonic website under Surveillance - Surveillance Video - Wired IP Cameras.
