User manual Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002

Operating instructions and pdf manual for use - Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002 User manual, User manual Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002, Parrot, BeBop, Drone, Quadcopter, with, 14, Me


User manual for Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002
  • Manufacturer: Parrot
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones
  • Safety instructions
  • Startup and operation of the aerial imaging platforms & drones
  • Tips for setting up your Parrot
  • Settings and expert assistance
  • Contact Parrot service
  • Troubleshooting
  • Warranty information
  • Price: 350 USD
Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002 Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002 Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002
Click to enlarge image

We recommend checking out our discussion threads on the Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002, which address similar problems with connecting and setting up Aerial Imaging Platforms & Drones Parrot.



User manual for the Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002

The user manual for the Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.

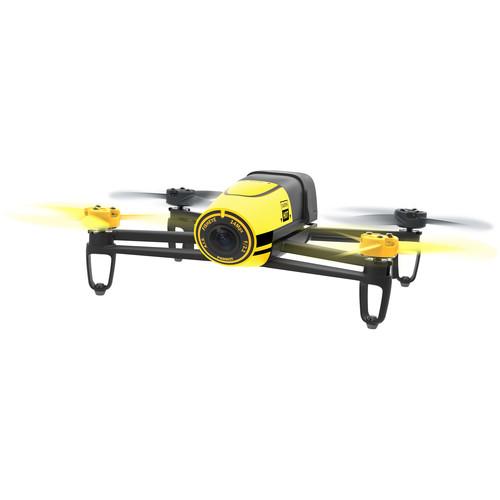

The yellow BeBop Drone Quadcopter with 14 Megapixel Flight Camera from Parrot is a Wi-Fi-based, mobile device operated RC aircraft capable of capturing 1080p aerial video and taking 14 megapixel still photos. Avoiding the added weight and power consumption of a motorized gimbal, the camera - notably - features an electronic image stabilization system that relies on a 3-axis motion sensor and a 180° fisheye lens from which it crops an image.

The BeBop is controlled from an Android or iOS mobile device running the FreeFlight 3 App (see Parrot website for latest list of supported devices). In addition to letting you control the quadcopter, the app provides a real-time preview from the flight camera, and you can even record a low resolution feed directly on your device. For high res recording you can use the 8GB of built-in memory, or connect a USB storage device for increased capacity.

For safe flying indoors, the Indoor Hull is included. This features a pair for prop guard/bumpers, one for the right and one for the left side. For better performance outside, the Indoor Hull can be left off. The BeBop Drone powers from a 1200mAh lithium-polymer (LiPo) battery, which is estimated to provide around 12 minutes of flying time. Two batteries and a charger are included in the box.

Note: Please address all technical issues directly to Parrot. Contact technical support by phone at 877-9Parrot (877-972-7768).
If you own a Parrot aerial imaging platforms & drones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002Download user manual for Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002
(PDF file, 7.69 MB)
Additional parameters of the Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002:
Specifications
Flight Control System
Motherboard Parrot P7
CPU Arm Cortex-A9 dual core
GPU Quad-core
Operating System Linux
Storage Internal: 8 GB flash memory
Sensors IMU (Inertial Measurement Unit)
3-axis accelerometer
3-axis gyroscope
3-axis magnetometer
Pressure sensor
Vertical stabilization camera (16 ms intervals)
Geo-location GNSS GPS (Glonass+Galileo)
Connectivity Micro USB memory expansion
Wi-Fi for remote operation (see "Wi-Fi" for details)
System Requirements Wi-Fi-enabled Android or iOS device
Wi-Fi
Frequency 2.4 GHz, 5 GHz
Wi-Fi Bands 802.11 a/b/g/n/ac
Transmit Power Up to 26 dBm
Range Up to 984' / 300 m
Antennas MIMO dual-band with two pairs of dipole antennas for 2.4 and 5 GHz
Camera
Sensor 1/2.3" CMOS
Lens 6-elements
Field of View 180°
Note: The effective field of view for video is less than 180° to accommodate the electronic image stabilization system.
Resolution Photo: 14 MP (3800 x 3188)
Video: 1080p30
Image Stabilization 3-axis electronic image stabilization
Encoding Video: H.265
Photo: DNG RAW
Recording Media 8 GB internal flash memory or USB storage device via micro USB port
Motors
Type 4 x Brushless outrunner motors
General
Structure Glass fiber reinforced (15%) ABS structure

High-resistance EPP outdoor hull: Clip and unclip to adapt to indoor and outdoor flight; protects the propellers, can be removed to reduce wind factor
Propeller Type Three-blade in polycarbonate
Battery Capacity: 1200 mAh
Chemistry: Lithium-polymer Flying Time: Up to 12 minutes
Dimensions 11 x 12.6 x 1.4" (28 x 32 x 3.6 cm)
Weight 13.4 to 14.1 oz (380 to 400 g)
Packaging Info
Package Weight 3.25 lb
Box Dimensions (LxWxH) 14.4 x 13.4 x 4.0"
The user manual for the Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002 can be downloaded in .pdf format if it did not come with your new aerial imaging platforms & drones, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Parrot users keep a unique electronic library for Parrot aerial imaging platforms & droness, where you can use our link to download the user manual for the Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002.

The user manual lists all of the functions of the Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002, all the basic and advanced features and tells you how to use the aerial imaging platforms & drones. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Parrot service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Parrot BeBop Drone Quadcopter with 14 Megapixel Flight PF722002. User manuals are also available on the Parrot website under Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.
