User manual for Peavey PRO 15 Low Frequency Audio Speaker 00497080
- Manufacturer: Peavey
- Basic description and contents of package
- Product classification: Pro Audio - Live Sound - Speaker Accessories
- Safety instructions
- Startup and operation of the speaker accessories
- Tips for setting up your Peavey
- Settings and expert assistance
- Contact Peavey service
- Troubleshooting
- Warranty information
- Price: 69 USD
|
We recommend checking out our discussion threads on the Peavey PRO 15 Low Frequency Audio Speaker 00497080,
which address similar problems with connecting and setting up Speaker Accessories Peavey.
|
User manual for the Peavey PRO 15 Low Frequency Audio Speaker 00497080
The user manual for the Peavey PRO 15 Low Frequency Audio Speaker 00497080 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Speaker Accessories.

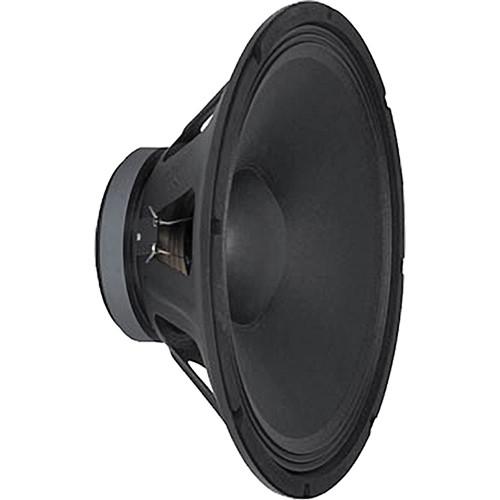

The Peavey PRO 15 Low Frequency Audio Speaker features a Kevlar-impregnated cellulose cone and has a frequency range of 40 Hz to 3 kHz. It has a 2.5" diameter voice coil made of thermally bonded copper wire, Kapton former, and Nomex stiffener.
|
If you own a Peavey speaker accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Peavey PRO 15 Low Frequency Audio Speaker 00497080 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Peavey PRO 15 Low Frequency Audio Speaker 00497080:
| Impedance | 8 Ohms | | Power Capacity | Peak: 800 W peak
Program: 400 W
Continuous: 200 W | | Sensitivity | 96.4 dB (1 W / 39.4" (1.0 m)) | | Frequency Range | 40 Hz to 3 kHz | | Cone Composition | Kevlar-impregnated cellulose | | Voice Coil | Diameter: 2.5" / 63.5 mm
Material: 2 layers, thermally bonded copper wire, Kapton former, and Nomex stiffener | | DC Resistance | Driver: 6.0 Ohms | | Surface Area of Cone (Sd) | 0.086 m2 | | Efficiency | Voice Coil & Magnet System: 13.35 T/M | | Resonance | Free Air: 34.4 Hz | | Volume | Volume of air having the same compliance (springiness) as the driver's suspension: 331.6 liters | | Force | Restorative: 324.6 µM/N | | Mass | Total: 2.3 oz / 66.5 g | | Characteristics | Resonance Characteristics of Mechanical Factors: 3.58
Resonance Characteristics of Electrical Factors: 0.482
Resonance Characteristics of Electrical & Mechanical Factors: 0.425 | | Distance | Distance the cone can move in one direction before the coil begins to leave the magnetic gap: 0.1" / 2.5 mm | | Inductance | 0.74 mH | | Efficiency | Electrical to Acoustical Conversion Efficiency: 2.40 | | Air Displacement | Displacement of the driver from negative Xmax to positive Xmax: 26.1 in³ (428 ml) | | Volume Displaced | 131 in³ (2154 ml) when mounted on its rear flange | | Diameter | 15.0" / 381.0 mm | | Weight | 13.78 lb (6.25 kg) | | Package Weight | 13.6 lb | | Box Dimensions (LxWxH) | 17.0 x 17.0 x 8.0" | |
The user manual for the Peavey PRO 15 Low Frequency Audio Speaker 00497080 can be downloaded in .pdf
format if it did not come with your new speaker accessories, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Peavey users keep a unique electronic library
for Peavey speaker accessoriess,
where you can use our link to download the user manual for the Peavey PRO 15 Low Frequency Audio Speaker 00497080.
The user manual lists all of the functions of the Peavey PRO 15 Low Frequency Audio Speaker 00497080,
all the basic and advanced features and tells you how to use the speaker accessories.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Peavey service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Peavey PRO 15 Low Frequency Audio Speaker 00497080. User manuals are also
available on the Peavey website under Pro Audio - Live Sound - Speaker Accessories.
Question and answer discussion forum concerning user instructions and resolving problems with the Peavey PRO 15 Low Frequency Audio Speaker 00497080 - no comments have been made yet - be the first to add a comment
Post new comment/question/response regarding the Peavey PRO 15 Low Frequency Audio Speaker 00497080
|
|
|
|
|
