User manual for the Peavey QW MR 2-Way Full-Range Floor Monitor Loudspeaker 00571330
The user manual for the Peavey QW MR 2-Way Full-Range Floor Monitor Loudspeaker 00571330 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

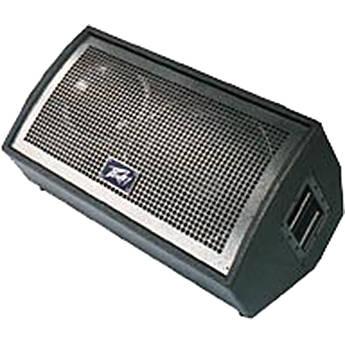

The black, right QW MR 2-Way Full-Range Floor Monitor Loudspeaker from Peavey uses the Pro Rider 15" woofer along with a 44XT compression driver and a CH-6 conical constant directivity horn. The 15" woofer features a Kevlar impregnated, water-resistant treated cone and dust cap for excellent environmental stability. The 44XT 4" titanium diaphragm compression driver handles the high frequencies and features the Radialinear Planar Phase Correction System that provides smooth and extended high frequency response. The CH-6 conical constant directivity horn provides an even 60° coverage in all directions.
If you own a Peavey pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Peavey QW MR 2-Way Full-Range Floor Monitor Loudspeaker 00571330 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Peavey QW MR 2-Way Full-Range Floor Monitor Loudspeaker 00571330:
Transducer
Low Frequency Section: 1 x Pro Rider 15" (38 cm) woofer, vented 1508-8 Cu CP High Frequency Section: 1 x 44XT 1.6" (4.1 cm) exit, 4" (100 mm) voice coil compression driver on a CH 6 CD horn (without adapter)
Frequency Response
Anechoic Environment: 67 Hz to 18 kHz (±3 dB)
3.3' (1 m) on-axis, swept-sine
Usable Low Frequency Limit
-10 dB Point: 55 Hz
Power Handling
Full Range: 1000 W continuous, 2000 W program, 4000 W peak Low Frequency Section: 500 W continuous, 1000 W program, 2000 W peak High Frequency Section: 100 W continuous, 200 W program, 400 W peak
SPL
1W/1m in Anechoic Environment: Full Range: 97.0 dB SPL, (2.83 V input) Low Frequency Section: 98.6 dB SPL, (2.83 V input) High Frequency Section: 108.4 dB SPL, (2.83 V input)
Maximum Sound Pressure Level (SPL)
3.3' (1 m): Full Range: 127.0 dB SPL continuous, 133.0 dB SPL peak Low Frequency Section: 125.6 dB SPL continuous, 131.6 dB SPL peak High Frequency Section: 128.4 dB SPL continuous, 134.4 dB SPL peak
Radiation Angle
Measured at -6 dB Point of Polar Response: 40° (H) x 90° (V)
Full Range: 3 x Neutrik NL4 (2 x primary side, 1 x secondary side) Bi-Amp Input: 1 x Neutrik NL4 switching Bi-Amp Thru: 2 x Neutrik NL4 (1 x primary side, 1x secondary side)
Enclosure Material
0.75" (18 mm) plywood finished in black Hammer Head coating
Mounting
This unit is not designed for overhead suspension
Dimensions (H x W x D)
17.75 x 29.75 x 21.25" (45.1 x 75.6 x 54.0 cm)
Weight
85.0 lb (38.6 kg)
