User manual for the Pelco KBD5000 Keyboard KBD5000

The user manual for the Pelco KBD5000 Keyboard KBD5000 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Matrix Solutions - Keyboards & Controllers.

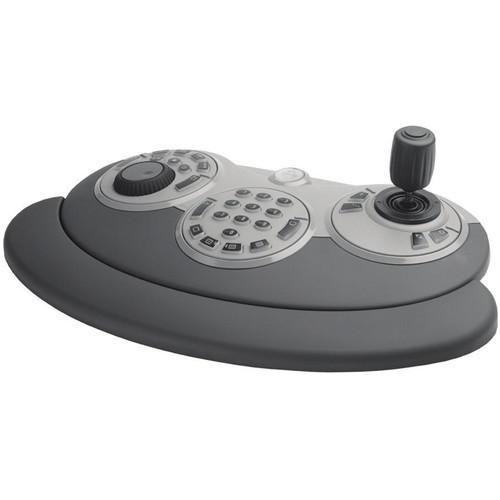

The Pelco KBD5000 Keyboard is optimized for surveillance requirements in controlling virtual matrix cameras. User feedback is provided through the VCD5202 Video Console Display’s head-up display and built-in LED lighting on the keyboard. It is compatible with the Endura-distributed IP video surveillance system and Endura-based DVRs.
If you own a Pelco keyboards & controllers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco KBD5000 Keyboard KBD5000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco KBD5000 Keyboard KBD5000:
Specifications
    Power Supply
    Input Voltage 100 to 240 VAC, 50/60 Hz
    Output Voltage 12 VDC
    Power Output 20 W
    Input/Output Connector Type Input: Universal
    Output: 2.5 mm screw-on barrel
    Keyboard Specifications
    Keyboard Interface USB 2.0
    Cable USB, captive, 16.4' (5.0 m)
    Input Voltage 12 VDC
    Input Current 1.3 A (maximum)
    Port Upstream: USB 2.0 (USB type B connector)
    Downstream: 2 x USB 2.0 high/full/low speed (USB type A connector)
    Audio Output Embedded speaker or plug-in headset, 0.5 W into 8 Ω load per channel
    Audio Input Plug-in microphone, mono, (30 to 350 mVpp) or line input, stereo (0.35 to 2 Vpp)

    Reserved for future use.

    Control Module
    Keypad 0 to 9 keys, camera, monitor, and multiple view keys
    Joystick Fully proportional pan/tilt, variable speed, with zoom, iris, and focus controls
    Jog/Shuttle Proportional, fast forward, reverse, and video transport, menu navigation on VCD5202 video console display
    Environmental
    Operating Temperature 32 to 104°F (0 to 40°C) at unit air intake
    Storage Temperature -40 to 149°F (-40 to 65°C)
    Operating Humidity Up to 96%
    Certifications & Ratings CE, Class B, FCC, Class B, UL/cUL Listed, C-Tick, S Mark for Argentina, US Patents #D525,262 S; D515,580 S; D516,073 S
    General
    Dimensions (D x W x H) With Wrist Support: 9.9 x 16.9 x 4.6" (25.2 x 42.9 x 11.7 cm)
    Without Wrist Support: 7.9 x 14.8 x 4.6" (19.9 x 37.5 x 11.7 cm)
    Weight With Wrist Support: 3.3 lb (1.5 kg)
    Without Wrist Support: 2.7 lb (1.2 kg)
    Packaging Info
    Package Weight 7.95 lb
    Box Dimensions (LxWxH) 18.3 x 9.4 x 7.2"
    The user manual for the Pelco KBD5000 Keyboard KBD5000 can be downloaded in .pdf format if it did not come with your new keyboards & controllers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pelco users keep a unique electronic library for Pelco keyboards & controllerss, where you can use our link to download the user manual for the Pelco KBD5000 Keyboard KBD5000.

    The user manual lists all of the functions of the Pelco KBD5000 Keyboard KBD5000, all the basic and advanced features and tells you how to use the keyboards & controllers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pelco service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pelco KBD5000 Keyboard KBD5000. User manuals are also available on the Pelco website under Surveillance - Surveillance Video - Matrix Solutions - Keyboards & Controllers.
