User manual Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K

Operating instructions and pdf manual for use - Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K User manual, User manual Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K, Pioneer, VSX-530-K, 5.1, Channel, AV, Receiver, VSX-530-K,


User manual for Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K

Overall rating 3.0
Overall Rating: 3.0

60% of respondents would recommend this to a friend.

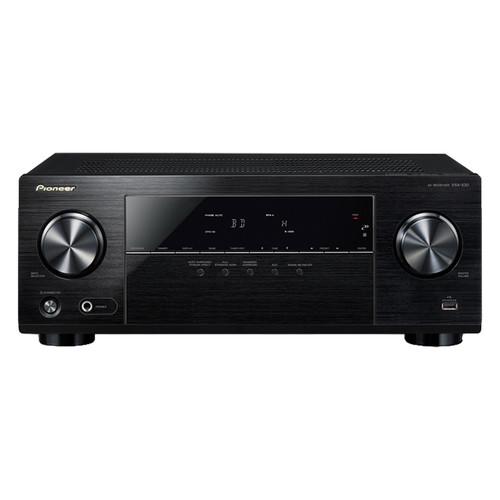

Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K
  • Manufacturer: Pioneer
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Receivers & Amplifiers - Receivers
  • Safety instructions
  • Startup and operation of the receivers
  • Tips for setting up your Pioneer
  • Settings and expert assistance
  • Contact Pioneer service
  • Troubleshooting
  • Warranty information
  • Price: 249 USD
We recommend checking out our discussion threads on the Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K, which address similar problems with connecting and setting up Receivers Pioneer.



User manual for the Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K

The user manual for the Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K provides necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Receivers.

Achieve 4K Ultra HD pass-through with 3D support via HDMI with the Pioneer VSX-530-K 5.1 Channel AV Receiver. It produces up to 80W of power per channel at 8 Ohms for room-filling sound. Built-in Bluetooth capability with aptX allows you to listen to CD-quality music wirelessly from your favorite Bluetooth-capable device. You can also attach a USB drive to the USB port on the front panel to play your MP3, WMA, and ACC files.

The VSX-530-K is equipped with four HDMI inputs and one HDMI output. The HDMI output supports ARC for the reproduction of TV-based audio, such as your TV's built-in Netflix or Hulu apps, for example. This receiver also has a digital coaxial, a digital optical, and two composite A/V inputs for additional connectivity options.
If you own a Pioneer receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-KDownload user manual for Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K
(PDF file, 10.5 MB)
Additional parameters of the Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K:
Specifications
Amplifier
DSP Digital Core Engine with Texas Instruments Aureus DSP
Power Output 80 W per channel at 20 Hz to 20 kHz, 0.08% THD @ 8 Ohm, 2ch driven
140 W per channel at 1 kHz, 1% THD @ 6 Ohm, 1ch driven
No. of Channels 5.1
Speaker Impedance 6 to 16 Ohms
Audio Processing
Audio DAC 192 KHz / 24 Bit
Dolby Dolby True HD, Dolby Digital Plus
DTS DTS-HD Master Audio, DTS Neo:6
Conversion 2-Channel DSD to PCM Converter via HDMI
File Support Via USB: 48 kHz / 16-Bit MP3, WMA, ACC
Phase Control Yes
Distance Adjustment 1.2" (3.0 cm)
Listening Mode Auto Surround
Stream Direct (Direct, Pure Direct)
Advanced Surround 10+1
Front Stage Surround Advance
Headphone Surround
Level Control Automatic, 2-channel
Lip Sync 500 ms
HDMI SACD/DSD Support DSD Disc (SACD) playback via HDMI (2.8 MHz)
Video Processing
Pass Through 4K
3D Support 3D Ready
Deep Color / x.v. Color Support HDMI x.v. Color
Convenience
AM/FM Tuner Yes/Yes
Remote Control System Remote Control
OSD Via HDMI only
Auto Power Standby Yes
ECO Mode Yes
Dimmer FL Dimmer
Sleep Timer 30, 60, 90 minutes
Listening Mode Midnight listening mode
Loudness
Connectors
Analog Inputs 2 x Composite A/V
2 x Stereo RCA
Digital Inputs 4 x HDMI with HDCP 2.2
1 x Digital Coaxial
1 x Digital Optical
1 x USB for USB Drive
Analog Outputs 1 x RCA composite video
1 x Subwoofer Preout (RCA)
5 x Speaker Out (2 x 5-way binding posts, 3 x spring clips)
1 x ¼" (0.6 cm) Headphone Out
Digital Outputs 1 x HDMI with ARC
Other Ports 1 x AM Antenna in
1 x FM Antenna in
Line Input Sensitivity 200 mV / 47 kOhms
Signal to Noise Ratio IHF, Short Circuited, A Network: 98 dB
EIA, at 1 W (1 kHz): 79 dB
Wireless Specifications
Bluetooth Version 3.0
Supported Bluetooth Profiles A2DP
Bluetooth Frequency 2.4 GHz
Bluetooth Codecs SBC/AAC/aptX
Bluetooth Range Approximately 33.0' (10.0 m)
General
Front Panel Construction Brushed
Power Requirements 120 VAC, 60 Hz
Power Consumption Typical: 415 W
Standby: 0.1 W
Dimensions (W x H x D) 17.1 x 6.6 x 13.1" (43.5 x 16.8 x 33.2 cm)
Weight 18.3 lb (8.3 kg)
Packaging Info
Package Weight 21.2 lb
Box Dimensions (LxWxH) 20.0 x 16.5 x 9.0"
The user manual for the Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K can be downloaded in .pdf format if it did not come with your new receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pioneer users keep a unique electronic library for Pioneer receiverss, where you can use our link to download the user manual for the Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K.

The user manual lists all of the functions of the Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K, all the basic and advanced features and tells you how to use the receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pioneer service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pioneer VSX-530-K 5.1 Channel AV Receiver VSX-530-K. User manuals are also available on the Pioneer website under TVs & Entertainment - Receivers & Amplifiers - Receivers.
