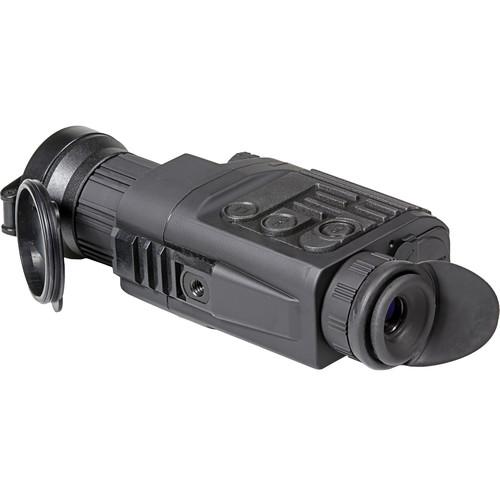

The Quantum HD50S 2.8x42mm Thermal Monocular from Pulsar allows users to detect sources of invisible to the naked eye long wavelength infrared light during day or night. For example, at night without help from visible illumination you will be able to detect running engines, hot wires, infrared lasers and lamps, live animals, humans, or other sources of heat. Additionally, because of different transmission properties of the infrared light compared to the visible light, this thermal imager will enable you to view your targets through smoke, fog, or dust. The imager features a micro-bolometer sensor with a resolution of 384x288 pixels and 7.7 µm to 13.2 µm spectral sensitivity. It is capable of displaying thermal images at a frame rate of 30 Hz using a built-in 640x480-pixel micro-OLED display, an external monitor, or a recording device. The optical system features a 50mm f/1.2 germanium lens that provides 2.8x optical magnification and a 2x digital zoom and allows for a wide angular field of view.
The housing is made of a lightweight and durable glass fiber composite and has a texture with coarse deep groves to allow a good grip. The control buttons are arranged in a staggered configuration for an easy reach and one-handed operation with either your left or right hand. This thermal imager can also be mounted on a tripod via top or bottom 1/4"-20 sockets. Additionally, it has a Weaver style mount adapter for connecting accessories. The objective is outfitted with a flip-out objective lens cap to protect the germanium lens from scratches and elements. The eyepiece has a diopter adjustment and a rubberized winged eye-cap. Also included are a carrying case, a hand strap, a car adapter, a video output cable, an extra battery container, and a lens cloth.
If you own a Pulsar thermal imagers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Pulsar Quantum HD50S 2.8x42mm Thermal Monocular (30 Hz) PL77321 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pulsar Quantum HD50S 2.8x42mm Thermal Monocular (30 Hz) PL77321:
Type: micro-OLED Diagonal: 0.31" Frame rate: 30 Hz Resolution: 640x480 pixels Format: PAL, NTSC Connector: 3.5 mm jack
Magnification
Optical: 2.8x Digital zoom: 2x
Lens System
Objective lens diameter:42mm f/1.2 Germanium
Angle/Field of View
Horizontal: 11° Vertical: 8.3°
Linear Field of View
Horizontal: 57.6' @ 100 yd (19.2 @ 100 m) Vertical: 43.2' @ 100 yd (14.4 @ 100 m)
Minimum Focus Distance
16.4' (5 m)
Eye Relief
0.8" (20 mm)
Exit Pupil
5 mm
Dioptric Correction
±5
Focusing
Internal
Battery / Runtime
4 x AA / 5.5 hr max
Weatherproofing
IPX4
Material of Construction
Glass-nylon composite
Tripod
2 x 1/4"-20
Mount
Weaver
Temperature Ranges
-13 to 122°F (- 25 to 50°C)
Dimensions
8.1 x 3.4 x 2.3" (207 x 86 x 59 mm) 11.3 oz (321 g)
Weight
15.2 oz (431 g)
