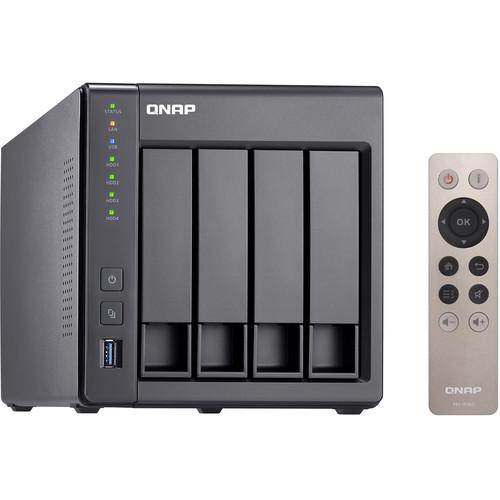

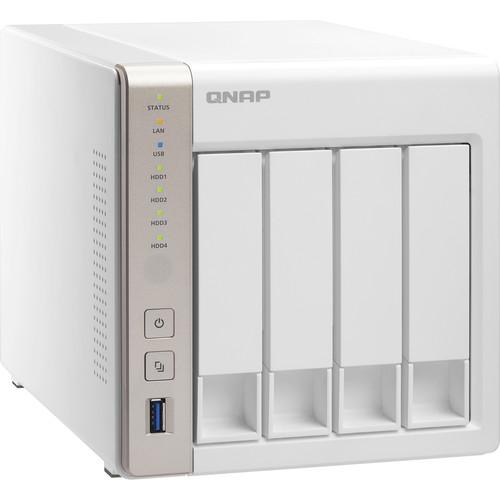

Built around the need for increasing amounts of data storage, sharing, and multimedia processing, the TS-451+ 4-Bay Home and SOHO NAS Server from QNAP provides a high-performance scalable storage solution for professional users. The TS-451+ runs the QTS 4.2 operating system and provides all-in-one server functionalities as well as features including Virtualization Station, which allows users to run multiple Windows, Linux, UNIX, and Android-based virtual machines. It is also able to operate multiple isolated Linux systems and download containerized apps with Container Station, play 1080p videos and multi-channel audio via HDMI, transcode Full HD videos on-the-fly or offline, stream multimedia files via DLNA, AirPlay, Chromecast, and Bluetooth, search efficiently using Qsirch, use the UX-800P expansion enclosure to increase the NAS's raw capacity, and more.
The TS-451+ is powered by a 2.0 GHz Intel Celeron Quad-Core processor that features a boost speed of up to 2.42 GHz. The built-in 2GB of DDR3L RAM, which may be expanded up to 8GB, and the 512MB of flash memory allow quick access to frequently-used files and programs. Network connectivity is achieved via the 2 x Gigabit Ethernet ports. A variety of RAID modes are also supported, including RAID 0,1, 5, 5 + hot spare, 6, 10, which offer data redundancy, speed, or a combination of both. There is also the option to set the TS-451+ in single disk or JBOD mode if you don't need RAID functionality.
This 4-bay enclosure has the ability to natively house both 3.5" or 2.5" SATA III & SATA II hard drives or SSD drives. To support both drive formats, screws are included to accommodate both drive sizes. Read speeds can reach up to 225 MB/s and write speeds can reach up to 224 MB/s, while data transfer speeds with AES 256-bit encryption can reach read speeds of up to 204 MB/s and write speeds of up to 158 MB/s. Using the two USB 3.0 and two USB 2.0 ports, this QNAP can be connected to other QNAP devices, such as the UX-500P and UX-800P expansion enclosures, as well as other external drives.
The TS-451+ operates using a 90W power supply that operates using 100-240 VAC. It is compatible with Windows, Mac, Linux, and UNIX. Included are two Ethernet cables, a power cord, an AC adapter, sixteen 3.5" HDD flat head screws, twelve 2.5" HDD flat head screws, and an IR remote control.
If you own a QNAP nas enclosures and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the QNAP TS-451 4-Bay Home and SOHO NAS Server TS-451 -2G-US in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the QNAP TS-451 4-Bay Home and SOHO NAS Server TS-451 -2G-US:
Internal hard drive: EXT4 External hard drive: EXT4, EXT3, NTFS, FAT32, HFS+
Networking
TCP/IP: IPv4 & IPv6 Dual Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming) Service binding based on network interfaces Proxy client, proxy server DHCP client, DHCP server Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC UPnP & Bonjour discovery USB Wi-Fi adapter support
Security
Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP CIFS host access control for shared folders FIPS 140-2 validated AES 256-bit volume-based data encryption AES 256-bit external drive encryption Importable SSL certificate Instant alert via E-mail, SMS, beep, and LCD panel
Storage Management
Online Volume Expansion Single Disk, JBOD, RAID 0, 1, 5, 6, 10 Online RAID Capacity Expansion Online RAID Level Migration Storage expansion via Qnap UX-500P / UX-800P expansion unit (Max: 1 unit) Bad block scan and hard drive S.M.A.R.T. Bad block recovery RAID recovery Bitmap support
Power Management
Wake on LAN Internal hard drive standby mode Scheduled power on/off Automatic power on after power recovery USB and network UPS support with SNMP management System sleep mode (S3)
Access Right Management
Batch users creation Import/export users User quota management Local user access control for CIFS, AFP, FTP, and WebDAV Application access control for Photo Station, Music Station, and Video Station
Multimedia Station
Subfolder permissions support for CIFS/SMB, AFP, FTP, and File Station
myQNAPcloud Service
Private cloud storage and sharing with myQNAPcloud id (qid) Free host name registration (DDNS) Auto router (via UPnP) configuration Web-based file manager with HTTPS 2048-bit encryption Cloudlink for remote access without complicated router setup myQNAPcloud connect for easy VPN connection (Windows VPN utility)
Qsync
Syncs files among multiple devices with SSL support Selective synchronization for syncing specific folders only Share team folder as a file center for team collaboration Shares files by links via e-mail Policy settings for conflicted files and file type filter support Version control: up to 64 versions Incremental synchronization for HDD space saving Supports Windows & Mac OS
Web Administration
Multi-window, multi-tasking based system management Personalized desktop Smart toolbar and dashboard for neat display on system status Login screen with personalized photo-wall style Smart fan control Dynamic DNS (DDNS) SNMP (v2 & v3) Resource monitor Network recycle bin for file deletion via CIFS/SMB, AFP and File Station Automatic cleanup File type filter Comprehensive logs (events & connection) Syslog client/server System settings backup and restore Restore to factory default Mobile app: Qmanager for remote system monitoring & management
File Sharing across Windows, Mac, and Linux/UNIX Windows ACL Advanced folder permission for CIFS/SMB, AFP, FTP Shared folder aggregation (CIFS/SMB)
FTP Server
FTP over SSL/TLS (Explicit) FXP supported Passive ftp port range control
File Station
Supports ISO Mounting (Up to 256 ISO Files) Support thumbnail display of multimedia files Supported share download link and upload link Drag-n-drop Files via Chrome and Firefox Browsers Photo, music, and video preview and playback with hardware accelerated transcoding File Compression (ZIP or 7z)
Transcode Management
Transcode video files to 240p, 360p, 480p, 720p, and 1080p resolution Automatic video transcoding for watched folders Hardware accelerated transcoding support
Backup Station
Remote replication server (over rsync) Real-time remote replication (RTRR) to another Qnap NAS or FTP server Works as both RTRR server & client with bandwidth control Real-time & scheduled backup Encryption, compression, file filter, and transfer rate limitation Encrypted replication between Qnap NAS servers Desktop backup with Qnap NetBak Replicator for Windows Apple Time Machine backup support Data backup to multiple external storage devices Synchronizes with cloud storage: Amazon S3, ElephantDrive, Symform, Dropbox, and Google Drive Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, emc retrospect, Symantec Backup Exec, etc.
Cloud Backup Station
Amazon S3 Amazon Glacier Webdev-based cloud storage Microsoft Azure Open Stack
Print Server
Max number of printers: 3 Print job display and management IP-based and domain name-based privilege control
Photo Station
Show photos in thumbnails, list, timeline, or folder view Supports virtual/smart album Validity control for sharing albums Tags photos with text, color, and rating Slideshows with background music and different transition effects Animated thumbnails for videos Geotags photos and display them on Google maps Shares slideshows link to social websites or through email Supports Facebook friends login Supports modification on photo taken date
Music Station
Plays or shares music collections with web browser Automatic classification via Media Library Internet radio streaming (MP3) Up to 8 music alarms Mobile app: Qmusic for music playing and management
iTunes Server
Audio and Video Sharing for Windows & Mac iTunes
Video Station
Show photos in thumbnails, list, timeline, or folder view Supports virtual/smart collection Validity control for sharing collections Tags videos with text, color, and rating Animated thumbnails for videos Shares video collection link to social websites or through email Sorting videos automatically into defined classifications Display movie information from IMDB
DLNA Server
Supports DLNA/UPnP TVs and players such as PlayStation 3 and Xbox 360 Video and audio on-the-fly transcoding
AirPlay
Streams videos, photos and music from NAS to Apple TV via Qfile or QAirPlay's web-based controller
Digital TV Station
DVB-T Digital TV Live View, Recording, and Playback Supports up to 2 USB TV Tuners Electronic Programming Guide (EPG) with Scheduled Recording
Please be aware that the availability of DVB-T broadcasting and EPG may vary depending on geographic locations
Download Station
PC-less BT, FTP/FTPS, and HTTP/HTTPS download (up to 500 Tasks) BT download with Magnet Link and PT support Scheduled download and bandwidth control RSS subscription and download (broadcatching) Bulk download with wildcard settings BT search Proxy support for BT download PC utility: Qget for downloads browsing and management Mobile app: Qget for downloads browsing and management
HD Station
Playbacks videos, music, and photos on a display with XMBC via HDMI output Watch various online contents such as YouTube, Flickr, Picasa, Shoutcast, etc Web browser Supports USB U.S. keyboard and mouse Supports Qnap Qremote app and the official XBMC remote app
Please be aware that the playback and quality of some video files may be affected due to the current CPU and GPU's decoding capability. Up to 7.1 channel audio passthrough can be supported
Surveillance Station
Supports over 2,100 IP cameras Includes 2 free camera licenses, up to 24 camera channels via additional license purchase Instant playback to check the recent event Online editing to edit cameras when live view Visual aid by e-map Playback and speed control by shuttle bar Video preview on playback timeline Intelligent video analytics (iva) for advanced video search Surveillance client for Mac Mobile surveillance app: vmobile (iOS and Android) Mobile recording app: vcam (iOS and Android)
Notes Station
Take notes of everything on your private cloud Collaborate notes with multiple users Support graphical editor for note editing Integrate with NAS file system: insert attachment or image from NAS file system Support event calendar and to-do list Support image editor: a easy way to highlight the focus in your image Support note publishing with a single link Support key word search Provide Chrome Extension: Notes Station Clipper Clip web page content to your note
VPN Server
Secure remote access: PPTP & OpenVPN VPN services Max number of clients: 30
Domain Authentication Integration
Microsoft Active Directory (AD) LDAP server, LDAP client Domain users login via CIFS/SMB, AFP, FTP, and File Station
App Center
More than 100 official and community software add-ons (ex: Dropbox, Google Drive Sync, McAfee, WordPress, HappyGet II, etc)
Virtualization
Support one Virtual Machine (VM) creating to run an operating system such as Windows, Linux, or Unix VM import from Virtual Appliances VM export into a virtual appliance in OVF / QVM format VM clone VM snapshot HTML5 based shared remote console
Signage Station
Supports dynamic content includes video, image, music, and text message Supports multi users collaboration Supports searching keywords Supports email and social network sharing Supports design software - iArtist Lite Supports account authority management Supports various browser playback (Chrome, Firefox, IE, Safari) Supports most viewed, latest released and different categories content list
