User manual for the QSC GX7 Rackmount Stereo Power Amplifier GX7

The user manual for the QSC GX7 Rackmount Stereo Power Amplifier GX7 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.

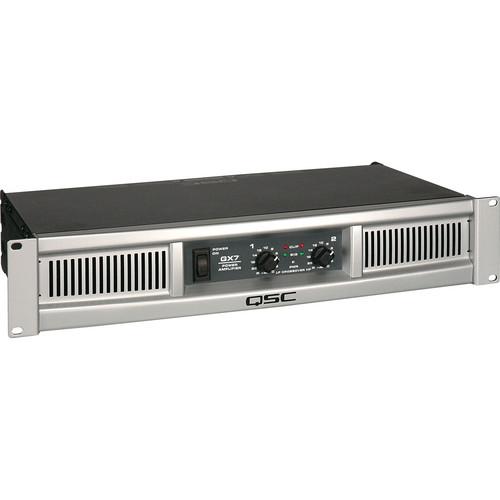

The QSC GX7 Power Amplifier is designed to provide power, portability, and professional sound quality at an affordable price. The GX7 can operate in stereo or mono modes, and has a 2RU chassis for installation in any standard equipment rack.

The rear panel features balanced XLR and 1/4" phone inputs, as well as unbalanced RCA phono inputs for complete compatibility with professional and consumer audio gear. Output is via Speakon combo connectors, which can accept 2-or-4-pole Speakon plugs and 1/4" TS plugs. Standard binding post outputs are also provided for full compatibility with a variety of systems, as well as 4 and 8 ohm speakers.

The GX7 uses a 2-tier Class-H circuitry design to provide exceptional power without excess loss. The efficient design also keeps weight low without sacrificing power. Detented gain controls provide precise level settings, while QSC's GuardRail protection circuitry delivers full peak power while preventing detrimental overloads due to excessive clipping or overheating. A built-in 180Hz crossover splits low and mid frequency signal between the left and right channel. This is ideal for use with subwoofers and satellite speakers.
If you own a QSC power amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the QSC GX7 Rackmount Stereo Power Amplifier GX7 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for QSC  GX7 Rackmount Stereo Power Amplifier GX7Download user manual for QSC GX7 Rackmount Stereo Power Amplifier GX7
(PDF file, 5.81 MB)
Additional parameters of the QSC GX7 Rackmount Stereo Power Amplifier GX7:
Specifications
    Power Rating 725W/Channel @ 8 Ohms Stereo
    800W @ 8 Ohms Mono
    1000W/Channel @ 4 Ohms Stereo
    1200W @ 4 Ohms Mono
    Damping Factor 100
    Input Sensitivity 1.2Vrms
    Input Impedance > 20 kOhms, Balanced
    Gain 36.1dB
    Frequency Response 20Hz - 20kHz, +0/-1dB
    Signal-to-Noise Ratio 100dB
    Total Harmonic Distortion (THD) 8 Ohms: < 0.02%
    4 Ohms: < 0.5%
    Input Connectors 2 x 3-Pin XLR, Balanced
    2 x 1/4" TRS, Balanced
    2 x RCA Phono, Unbalanced
    Output Connectors 2 x Speakon Combo Outputs (Speakon and 1/4" TS)
    2 x Binding Post Outputs (2 Terminals Each)
    Controls Front Panel 2 x Detented Gain Controls
    1 x Power Switch
    Controls Rear Panel 1 x Crossover Switch
    Indicators LEDs for Power, Signal, and Clip
    Cooling Variable-Speed Cooling Fan
    Power Requirements 10.1A (1/8 Power, Pink Noise @ 4 Ohms, 120V)
    Dimensions (HxWxD) 3.5 x 19 x 10.1" (89 x 483 x 257mm)
    Weight 15.5 lbs (7kg)
    Packaging Info
    Package Weight 20.35 lb
    Box Dimensions (LxWxH) 22.75 x 14.5 x 5.4"
    The user manual for the QSC GX7 Rackmount Stereo Power Amplifier GX7 can be downloaded in .pdf format if it did not come with your new power amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other QSC users keep a unique electronic library for QSC power amplifierss, where you can use our link to download the user manual for the QSC GX7 Rackmount Stereo Power Amplifier GX7.

    The user manual lists all of the functions of the QSC GX7 Rackmount Stereo Power Amplifier GX7, all the basic and advanced features and tells you how to use the power amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from QSC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the QSC GX7 Rackmount Stereo Power Amplifier GX7. User manuals are also available on the QSC website under Pro Audio - Live Sound - Power Amplifiers.
