User manual for the RCF DX 2006 2-Input/6-Output Digital Processor DX-2006
The user manual for the RCF DX 2006 2-Input/6-Output Digital Processor DX-2006 provides
necessary instructions for the proper use of the product Pro Audio - Installation Sound - System Processors.

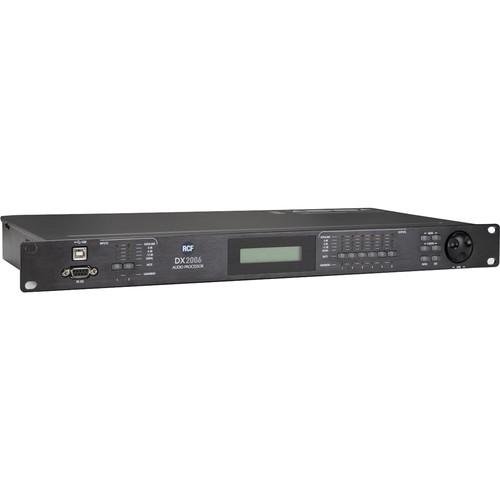

The DX 2006 from RCF is a 2-input, 6-output loudspeaker management device with 40-bit floating point DSP and 96 kHz sampling rate, suitable for the optimization of passive loudspeaker systems.
If you own a RCF system processors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the RCF DX 2006 2-Input/6-Output Digital Processor DX-2006 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the RCF DX 2006 2-Input/6-Output Digital Processor DX-2006:
Specifications
Input Impedance
>10 k ohms
Output Impedance
50 ohms
Maximum Level
20 dBu
Type
Electronically balanced
Frequency Response
± 0.1 dB (20 Hz to 20 kHz)
Dynamic Range
115 dB typical (unweighted)
CMRR
>60 dB ( 50 Hz to 10 kHz)
Crosstalk
<-100 dB
Distortion
0.002 % (1 kHz @ 18 dBu)
Resolution
40 bit
Sampling Rate
96 kHz
A/D/A Converter
24 bit
Propagation Delay
1.5 ms
Display
2x 16 character backlit LCD
Buttons
Mute/edit controls, menu controls Embedded Thumb Wheel "DATA" control
Level Meters
5 LEDs per channel
Threshold
-20 to +20 dBu
Attack Time
0.3 to 100 ms
Release Time
2-4-8-16-32x the attack time
EQ Type
Parametric, Lo-shelf, Hi-shelf, AP-1, AP-2
Gain
-15 to +15 dB in 0.25 dB steps
Bandwidth
0.02 to 3.61 octaves
Filters
Butterworth, Linkwitz Riley, Bessel
Crossover Slope
6 / 12 to 48 dB / oct
Dimensions (H x W x D)
1.7 x 19.0 x 9.0" (44.0 x 483.0 x 229.0 mm)
Weight
10 lb (5 kg)
The user manual for the RCF DX 2006 2-Input/6-Output Digital Processor DX-2006 can be downloaded in .pdf
format if it did not come with your new system processors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other RCF users keep a unique electronic library
for RCF system processorss,
where you can use our link to download the user manual for the RCF DX 2006 2-Input/6-Output Digital Processor DX-2006.
The user manual lists all of the functions of the RCF DX 2006 2-Input/6-Output Digital Processor DX-2006,
all the basic and advanced features and tells you how to use the system processors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from RCF service.
