User manual for the Roland TD-25KV V-Drums 10-Piece Electronic Drum Kit TD-25KV-S
The user manual for the Roland TD-25KV V-Drums 10-Piece Electronic Drum Kit TD-25KV-S provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Electronic Drums.

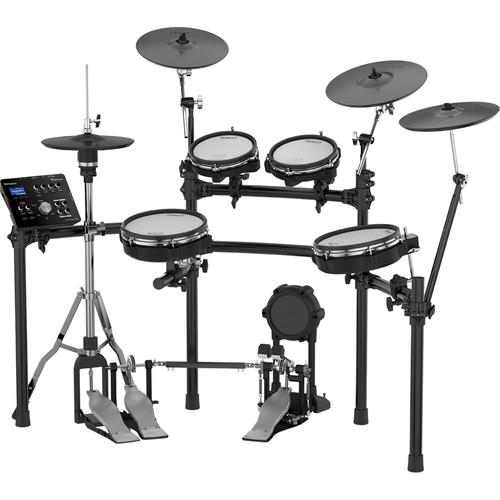

Giving home and studio electronic drummers access to the sound engine from their flagship TD-30 V-Drums, the TD-25KV V-Drums 10-Piece Electronic Drum Kit with Drum Module from Roland employs a streamlined interface that allows for swapping each drum and cymbal in your kit. The kit itself consists of a TD-25 drum module, a PDX-100 10" snare pad, 2 PD85 8" tom pads, a 10" PDX-100 tom pad, a VH-11 hi-hat pad, 2 CY-12C crash cymbal pads, a CY-13R ride cymbal pad, and a KD-9 kick pad. The system can be mounted on the included MDS-9V drum stand.
The snare and tom pads all feature mesh heads for realistic playing, while the 2 cymbal pads have a variety of features including edge/bow sensors, and a natural swinging motion. The hi-hat pad mounts on a standard hi-hat stand (not included). The TD-25 drum module allows you to play along with tracks on a USB stick or your smartphone, while a USB port allows you to record audio or MIDI data to your DAW.
If you own a Roland electronic drums and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Roland TD-25KV V-Drums 10-Piece Electronic Drum Kit TD-25KV-S in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Roland TD-25KV V-Drums 10-Piece Electronic Drum Kit TD-25KV-S:
Internal, USB Flash Memory File Format Audio file: WAV/MP3
Display
64 x 128 dots graphic type LCD (backlit LCD)
Connectors
Trigger Input Connector: DB-25 (Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Ride, Ride Bell, Hi-Hat Control) Extra Trigger Input Jacks: stereo 1/4" (6.3 mm) phone type Crash 2, AUX Master Output Jacks (L/MONO, R): 1/4" (6.3 mm) phone type Phones Jack: Stereo 1/4" (6.3 mm) phone type Audio Input Jack: Stereo 1/8" (3.5 mm) miniature phone type MIDI Out Connector: 5-pin DIN USB Computer Port: USB type B USB Memory Port: USB type A Interface USB-MIDI, USB-Audio, USB Flash Memory
Output Impedance
1 kOhm
Power Supply
AC adapter (DC 9 V)
Current Draw
500 mA
Dimensions (W x D x H)
9.4 x 7.1 x 3.4" (238 x 180 x 86 mm)
Weight
2.2 lb (1 kg)
2 x
PDX-100 V-Pad 10"
Size
10" (254mm)
Triggers
Two: head and rim
Acceptable Rod Diameters
0.35 x 0.51" (9 to 13mm)
Usable Pipe Size
0.86" (22.2mm)
Mounting
Dual Mount: Vertical Rods in Roland's MDS Series Horizontal Pipe Systems on Commercially Available Tom Stands
The user manual for the Roland TD-25KV V-Drums 10-Piece Electronic Drum Kit TD-25KV-S can be downloaded in .pdf
format if it did not come with your new electronic drums, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Roland users keep a unique electronic library
for Roland electronic drumss,
where you can use our link to download the user manual for the Roland TD-25KV V-Drums 10-Piece Electronic Drum Kit TD-25KV-S.
The user manual lists all of the functions of the Roland TD-25KV V-Drums 10-Piece Electronic Drum Kit TD-25KV-S,
all the basic and advanced features and tells you how to use the electronic drums.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Roland service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Roland TD-25KV V-Drums 10-Piece Electronic Drum Kit TD-25KV-S. User manuals are also
available on the Roland website under Pro Audio - Musical Instruments - Electronic Drums.
