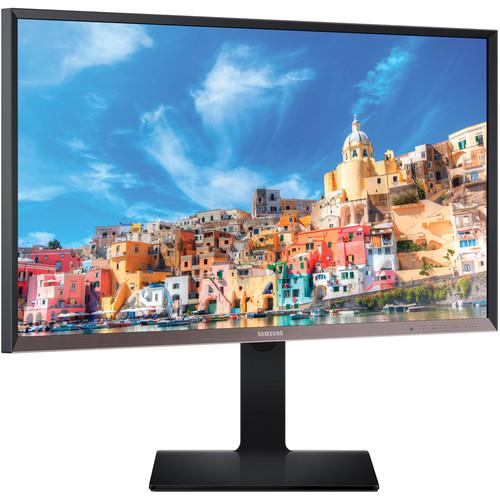

User manual Samsung S32D850T 32" Widescreen LED Backlit LCD S32D850T

Operating instructions and pdf manual for use - Samsung S32D850T 32" Widescreen LED Backlit LCD S32D850T User manual, User manual Samsung S32D850T 32" Widescreen LED Backlit LCD S32D850T, Samsung, S32D850T, 32, Widescreen, LED, Backlit, LCD, S32D85


User manual for Samsung S32D850T 32" Widescreen LED Backlit LCD S32D850T

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Samsung S32D850T 32
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
  • Price: 579 USD
We recommend checking out our discussion threads on the Samsung S32D850T 32" Widescreen LED Backlit LCD S32D850T, which address similar problems with connecting and setting up Computer Monitors Samsung.



User manual for the Samsung S32D850T 32" Widescreen LED Backlit LCD S32D850T

The user manual for the Samsung S32D850T 32" Widescreen LED Backlit LCD S32D850T provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

With a WQHD 2560 x 1440 resolution, the S32D850T 32" Widescreen LED Backlit LCD Monitor from Samsung is capable of displaying content at up to four times the resolution of standard Full HD. Along with an enhanced resolution, you benefit from 100% sRGB coverage for enhanced color accuracy. With picture-by-picture and picture-in-picture technologies you can transform the way you view your multimedia content, the way you work, and much more.

Picture-by-picture technology lets you view content from two separate PCs simultaneously while picture-in-picture lets you utilize two windows at the same time, on top of one another. Whether viewing two things at once, or just using the monitor to do some work, you benefit from enhanced 178° horizontal and vertical viewing angles along with the ability to raise and lower, tilt, and swivel the monitor for enhanced viewing comfort.

The S32D850T comes equipped with a 2560 x 1440 resolution providing greater detail for viewing a variety of content. The fast 5 ms response time ensures reduced lag for fast moving videos and movies, while the 3,000:1 contrast ratio ensures you receive darker dark and brighter bright colors. The back of the monitor features DVI, HDMI, and DisplayPort connectors along with a five port USB 3.0 hub and audio in and out ports making it easy to connect this Samsung monitor to a variety of computer configurations.
If you own a Samsung computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung S32D850T 32" Widescreen LED Backlit LCD S32D850T in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Samsung S32D850T 32Download user manual for Samsung S32D850T 32" Widescreen LED Backlit LCD S32D850T
(PDF file, 5.57 MB)
Additional parameters of the Samsung S32D850T 32" Widescreen LED Backlit LCD S32D850T:
Specifications
Display
Screen Size 32.00" / 81.28 cm
Display Type LED
Resolution WQHD 2560 x 1440
Aspect Ratio 16:9
Brightness 300 cd/m²
Static Contrast Ratio 3,000:1 (typical)
Dynamic Contrast Ratio Mega ∞
Viewing Angles Horizontal: 178°
Vertical: 178°
Response Time 5 ms (GtG)
Active Display Size (H × V) 27.89 x 15.69" / 70.85 x 39.85 cm
Pixel Pitch (HxV) 0.27675 x 0.27675 mm
sRGB Coverage Yes
Color Support 1,073,000,000 Colors
Inputs 1 x Dual Link DVI
1 x HDMI
1 x DisplayPort
1 x 3.5 mm audio input
USB 3.0 1 x upstream ports
4 x downstream ports
Power
Type Internal power
Power Supply Type AC 100-240 VAC (50/60 Hz)
Power Consumption Maximum: 100 W
Typical: 65 W
Stand-By: <0.45 W
DPMS: 0.45 W (typical)
Other Specifications
Height Adjustable Stand Yes (5.12" / 130.00 mm)
Mount Diameter VESA: 100 x 100 mm
Bracket: 200 x 200 mm
Picture-in-Picture Yes
OS Compatibility Windows / Mac
Green Compliance ENERGY STAR Certified, TCO Compliant
Outputs 1 x 3.5 mm audio output
Operating Temperature 32 to 122°F / 0 to 50°C
Humidity 5 to 90% non-condensing
Dimensions & Weight
Dimensions With Stand: 29.18 x 24.80-19.68 x 11.02" / 74.12 x 62.99-49.99 x 27.99 cm
Without Stand: 29.18 x 17.36 x 2.69" / 74.12 x 44.09 x 6.83 cm
Weight With Stand: 26.84 lb / 12.17 kg
Without Stand: 20.68 lb / 9.38 kg
Packaging Info
Package Weight 39.2 lb
Box Dimensions (LxWxH) 34.0 x 21.0 x 14.0"
The user manual for the Samsung S32D850T 32" Widescreen LED Backlit LCD S32D850T can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung computer monitorss, where you can use our link to download the user manual for the Samsung S32D850T 32" Widescreen LED Backlit LCD S32D850T.

The user manual lists all of the functions of the Samsung S32D850T 32" Widescreen LED Backlit LCD S32D850T, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung S32D850T 32" Widescreen LED Backlit LCD S32D850T. User manuals are also available on the Samsung website under Computers & Solutions - Monitors & Displays - Computer Monitors.
