User manual for the SilverStone Raven Series RV01 Window Chassis RV01B-W-USB3.0
The user manual for the SilverStone Raven Series RV01 Window Chassis RV01B-W-USB3.0 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Desktop Computer Cases.

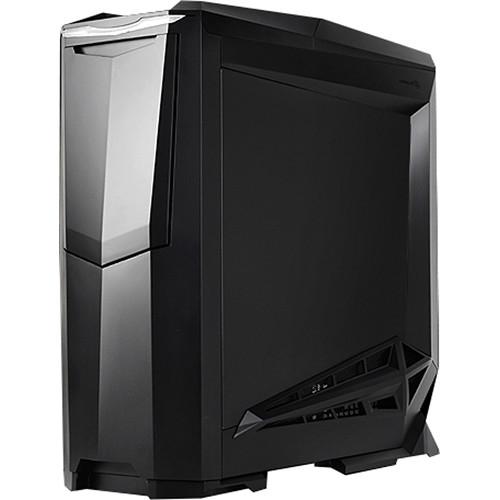

Designed with a reinforced plastic outer shell and a steel body, the matte black Raven Series RV01 Window Chassis with USB 3.0 from SilverStone supports motherboards with SSI-EEB, SSI-CEB, Extended ATX, ATX, and Micro-ATX form factors. It also has 6 x 5.25" external drive bays and 6 x internal drive bays that support both 3.5" and 2.5" drives. The chassis is cooled using 1 x 120mm top exhaust fan that has a rotational speed of 950 rpm and a noise level of 18 dBA, as well as 2 x 180mm bottom intake fans that have a rotational speed of 700 rpm and a noise level of 18 dBA. It is equipped with 2 x USB 3.0 ports, 1 x audio port, and 1 x mic port, all of which are front mounted, and its seven expansion slots are compatible with expansion cards up to 13.3", with a maximum width of 7.09". It is powered using a standard PS2 (ATX) power supply and includes one hot-swap SATA adapter.
|
If you own a SilverStone desktop computer cases and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the SilverStone Raven Series RV01 Window Chassis RV01B-W-USB3.0 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the SilverStone Raven Series RV01 Window Chassis RV01B-W-USB3.0:
| Material | Reinforced plastic outer shell, 0.03" / 0.80 mm steel body | | Color | Matte Black | | Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX | | Drive Bays | External - 5 x 5.25" Internal - 6 x 3.5"/2.5" | | Cooling System | Top - 1 x 120mm exhaust fan, 950 rpm, 18 dBA
Bottom - 2 x 180mm intake fan, 700 rpm, 18 dBA | | Expansion Slots | 7 | | Front I/O Ports | 2 x USB 3.0
1 x Audio
1 x Mic | | Power Supply | 1 x optional standard PS2 (ATX) | | Expansion Card | Compatible with expansion cards up to 13.3" / 337.8 mm, width restriction 7.09" / 180.09 mm | | Limitation of CPU Cooler | 6.7" / 170.0 mm | | Limitation of VGA Card | Full Spec | | Limitation of PSU | Unlimited | | Dimensions | 11.0 x 24.3 x 26.0" / 280.0 x 616.0 x 660.0 mm | | Weight | 30.4 lb / 13.8 kg | | Package Weight | 41.3 lb | | Box Dimensions (LxWxH) | 30.0 x 27.5 x 15.0" | |
