User manual Sony HDC-P1 HD Multi-Purpose Camera HDCP1/3

Operating instructions and pdf manual for use - Sony HDC-P1 HD Multi-Purpose Camera HDCP1/3 User manual, User manual Sony HDC-P1 HD Multi-Purpose Camera HDCP1/3, Sony, HDC-P1, HD, Multi-Purpose, Camera, HDCP1/3, Video

User manual for Sony HDC-P1 HD Multi-Purpose Camera HDCP1/3

Sony  HDC-P1 HD Multi-Purpose Camera HDCP1/3
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Professional Video - Industrial & Multi-Purpose Cameras
  • Safety instructions
  • Startup and operation of the industrial & multi-purpose cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 29 USD
We recommend checking out our discussion threads on the Sony HDC-P1 HD Multi-Purpose Camera HDCP1/3, which address similar problems with connecting and setting up Industrial & Multi-Purpose Cameras Sony.

User manual for the Sony HDC-P1 HD Multi-Purpose Camera HDCP1/3

The user manual for the Sony HDC-P1 HD Multi-Purpose Camera HDCP1/3 provides necessary instructions for the proper use of the product Professional Video - Industrial & Multi-Purpose Cameras.

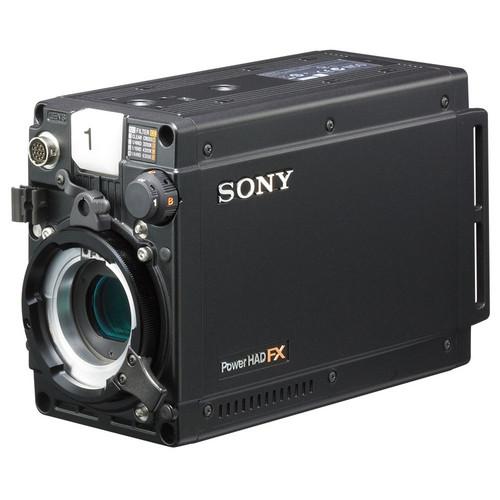

Retaining the operational feel of Sony's HDC-1000 series cameras, the HDC-P1 HD Multi-Purpose Camera is a compact, POV-style HD camera with a rich feature set based around three 2/3" CCD sensors. Capable of high-quality 1920 x 1080 images, the HDC-P1 can capture in 1080i, 1080p, or 720p, at either 50 or 59.94p (with a software option for 23.98PsF and other frame rates). This model was built specifically as a compact HD studio camera that can shoot in tight and awkward spaces as well as capture images from hard-to-reach angles. Combined with its ability to seamlessly integrate content from full-size cameras, the HDC-P1 is ideal for such applications as multi-format sports, stereoscopic 3D, and HD robotics.
If you own a Sony industrial & multi-purpose cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony HDC-P1 HD Multi-Purpose Camera HDCP1/3 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony HDC-P1 HD Multi-Purpose Camera HDCP1/3:
Signal System 1080/50i, 1080/59.94i, 720/50p, 720/59.94p
Option: 1080/23.98p, 1080/24p, 1080/25p, 1080/29.97p
Image Device 2/3" 3CCD
Effective Pixels 1920 x 1080
Lens Mount Sony 2/3-type Bayonet
Horizontal Resolution 1000 TV Lines (at center)
Signal-to-Noise Ratio Typical 55dB (HD)
Typical 63-65dB (SD)
Sensitivity @2000 lux, 3200K, 89.9% reflectance:
F10 (1080/59.94i, 720/59.94p)), F11 (1080/50i, 720/50p)
Minimum Illumination Not specified by manufacturer
Vertical Smear Not specified by manufacturer
Built-in Filters CC: A: CROSS, B:3200K, C: 4300K, D: 6300K
ND: 1: CLEAR, 2: 1/4, 3: 1/16, 4: 1/64
Shutter Speed 1080/59.94i: 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000
1080/50i: 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000
LCD Monitor None
Viewfinder N/A
Input and Output Connectors HD/SD-SDI: BNC (x2 Output)
Genlock: BNC (x1 Input)
VBS: BNC (x1 Output)
Interface: 15-pin D-Sub (x1 Input/Output)
LAN: RJ-45, 10BASE-T/100BASE-TX (x1)
Remote: 8-pin (x1)
Lens Connector: 12-pin (x1)
Power Requirements 10.5-17VDC
Power Consumption 24W
Operating Temperature -4° to 113°F (-20° to 45°C)
Dimensions (WxHxD) 3.4 x 5.1 x 8.3" (8.6 x 13 x 21.2 cm)
Weight 3.75 lbs (1.7kg)
Packaging Info
Package Weight 6.35 lb
Box Dimensions (LxWxH) 12.7 x 10.5 x 9.5"
The user manual for the Sony HDC-P1 HD Multi-Purpose Camera HDCP1/3 can be downloaded in .pdf format if it did not come with your new industrial & multi-purpose cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony industrial & multi-purpose camerass, where you can use our link to download the user manual for the Sony HDC-P1 HD Multi-Purpose Camera HDCP1/3.

The user manual lists all of the functions of the Sony HDC-P1 HD Multi-Purpose Camera HDCP1/3, all the basic and advanced features and tells you how to use the industrial & multi-purpose cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony HDC-P1 HD Multi-Purpose Camera HDCP1/3. User manuals are also available on the Sony website under Professional Video - Industrial & Multi-Purpose Cameras.
