User manual for the Sony HXR-NX100 Full HD NXCAM Camcorder HXR-NX100
The user manual for the Sony HXR-NX100 Full HD NXCAM Camcorder HXR-NX100 provides
necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

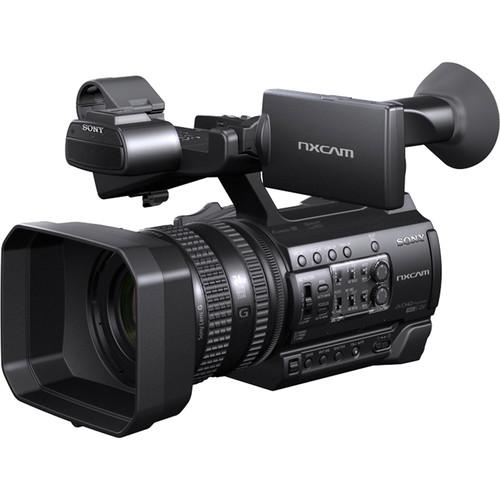

The HXR-NX100 NXCAM Professional Handheld Camcorder from Sony brings high-quality performance, adaptability, and ease of use to a compact, handheld body. The camcorder features a single Exmor R sensor with Full HD 1920x1080 resolution, Sony G lens with 12x optical zoom range, and a 24x Clear Image Zoom. The integrated zoom lens features individual lens control rings for focus, iris, and zoom. The lens can be used in either full-auto mode with servo control, or as a completely manually operated lens.
The camera supports storing up to 6 picture profiles and allows you share profiles between multiple NX100 camcorders. The camera also supports Sony's Slow and Quick Motion for shooting HD video at variable frame rates. Recording to a variety of formats, frame rates and codecs, the camcorder supports the XAVC S codec recording Full HD video at up to 59.94p, AVCHD 2.0 up to 59.94p, and DV for SD video. Your footage is recorded to media via 2 x SD memory card slots. You can choose to record simultaneously to both cards or use the relay mode which switches recording automatically to the second memory card when the first one is full. The two card slots can be controlled independently from two separate record buttons. 2 x 3-pin XLR audio inputs support line, mic, and mic + 48 V (phantom power) for using professional microphones. The camera also includes IR capability for shooting in extremely dim lighting conditions as well as date/time stamp functionality.
|
If you own a Sony camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony HXR-NX100 Full HD NXCAM Camcorder HXR-NX100 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sony HXR-NX100 Full HD NXCAM Camcorder HXR-NX100:
| Sensor | 1.0-type / 13.2 mm x 8.8 mm back-illuminated Exmor R CMOS sensor | | Pixel Count | 16:9
Effective: Approximately 14.2 MP
4:3
Effective: Approximately 10.6 MP | | Built-In ND Filters | Clear, 1/4, 1/16, 1/64 | | Minimum Illumination | 60i: 3 lux (1/60 Shutter Speed, iris/gain auto)
60i: 1.7 lux (1/30 Shutter Speed, iris/gain auto) | | Shutter Speed | 60i: 1/8 - 1/10,000
24p: 1/6 - 1/10,000 | | Slow & Quick Motion Function | 1080i 60p: 1, 2, 4, 8, 15, 30, 60 | | White Balance | Preset
Indoor: 3200K
Outdoor: 5600K±7 steps
Color temparature set range: 2300-15000K
Onepush
A, B, Auto selectable | | Gain | -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33 dB, AGC | | Gamma Curve | Selectable | | Lens Mount | Fixed | | Zoom Ratio | 12x (optical), servo | | Focal Length | 9.3 to 111.6 mm | | 35mm Equivalent Focal Length | 29 to 348mm (16:9)
35.5 to 426mm (4:3) | | Iris | f/2.8 to f/4.5, auto/manual selectable | | Focus | AF/MF selectable | | Image Stabilizer | ON/OFF selectable, shift lens | | Filter Diameter | 62mm | | Video Format | XAVC S HD: MPEG4-AVC/H264 4:2:0 Long profile
AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible
DV | | Audio Format | XAVC S HD : Linear PCM 2ch, 24bit, 48kHz
AVCHD : Linear PCM 2ch, 16-bit, 48 kHz / Dolby Digital 2ch, 16-bit, 48 kHz
DV : Linear PCM 2ch, 16-bit, 48 kHz | | Resolutions & Frame Rates | XAVC S (1920 x 1080)@59.94p, 29.97p, 23.98p (50 Mbps)
AVCHD (1920 x 1080)@59.94p, PS mode (28 Mbps)
AVCHD (1920 x 1080) @59.94i/29.97p/23.98p, FX mode (24 Mbps) FH mode (17 Mbps)
AVCHD (1440 x 1080)@59.94i, HQ mode (9 Mbps) LP mode (5 Mbps)
AVCHD (1280 x 720)@59.94p, FX mode (24 Mbps) FH mode (17 Mbps) HQ mode (9 Mbps)
DV (720 x 480)@59.94i (25 Mbps) | | Recording/Playback Time | XAVC S HD@LPCM 2ch 50 Mbps
Approx. 155 min with 64 GB memory card
AVCHD@LPCM 2ch PS Mode
Approx. 290 min with 64 GB memory card
Approx. 145 min with 32 GB memory card
AVCHD@LPCM 2ch FX Mode
Approx. 340 min with 64 GB memory card
Approx. 170 min with 32 GB memory card
AVCHD@LPCM 2ch FH Mode
Approx. 450 min with 64 GB memory card
Approx. 225 min with 32 GB memory card
DV
Approx. 280 min with 64 GB memory card
Approx. 140 min with 32 GB memory card | | Viewfinder | 0.24"-type / 0.6 cm (approx. 1.56 M dots) | | LCD Monitor | 3.5" / 8.8 cm (approx. 1.56 M dots) | | HDMI Output | 1 x Type A | | Composite Output | 1 x BNC, NTSC 1.0Vp-p, 75 ohms | | Audio Input | 2 x XLR (3-pin), line/mic/mic +48 V selectable | | Audio Output | RCA | | USB | Multi/Micro jack | | Headphone Output | 1 x 3.5 mm stereo mini jack | | Speaker Output | Monaural | | DC Input | DC jack | | Remote | 1 x 2.5 mm stereo mini mini jack | | Media Type | 1 x SD/SDHC/SDXC & Memory Stick Duo
1 x SD/SDHC/SDXC | | Built-In Microphone | Omni-directional stereo electret condenser microphone | | Power Requirements | Battery pack: 7.2 VDC
AC Adapter: 8.4 VDC | | Power Consumption | Approx. 5.8 W (while recording with viewfinder and XAVC S HD 1080/60i or 50i at 50 Mbps)
Approx. 6.0 W (while recording with LCD and XAVC S HD 1080/60i or 50i at 50 Mbps) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (W x H x D) | Approx.: 6.7 x 7.4 x 14.6" / 171.3 x 187.8 x 371.2 mm (with the accessories, excluding the grip belt and including the projecting parts) | | Weight | 4.19 lb / 1.90 kg (body only)
4.63 lb / 2.10 kg (with Lens Hood, EVF Eyecup, and NP-F970 Battery) | | Package Weight | 8.4 lb | | Box Dimensions (LxWxH) | 18.0 x 10.5 x 9.7" | |
