User manual for the Sony LMD-941W 9" LCD Monitor LMD-941W
The user manual for the Sony LMD-941W 9" LCD Monitor LMD-941W provides
necessary instructions for the proper use of the product Professional Video - Monitors - Production Monitors.

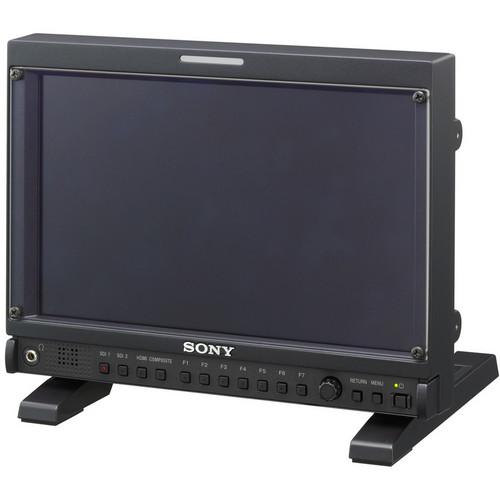

The Sony LMD-941W 9" LCD Monitor is a 9" production monitor that is at home in both the field and in a studio or mounted in a rack. The LMD-941W displays NTSC, PAL and HD video supporting interlaced, progressive and PsF formats. It supports resolutions up to 1920 x 1080 and frame rates from 23.98 to 60P. The LMD-941W features composite, SD/HD-SDI and HDMI inputs with composite and SD/HD-SDI outputs. With excellent off axis viewing qualities, this an excellent choice for either a single viewer or when an entire group is going to be watching.
The monitor features built-in waveform and vector scope displays for checking that the video signal is within spec. The built-in camera focus aid enhances the edge detail for critical focus adjustments, allowing you to judge focus on its 9" screen, and not a tiny camera viewfinder. Timecode display, embedded audio level indicators and safe area markers allow you to precisely check your images for framing issues or audio distortion.
A built-in display function features four selectable modes for adjusting how the monitor displays interlaced video. The LMD-941W also features seven assignable control buttons with LED indicators and a rotary switch, for making selections and adjustments to the monitor. Built-in decoders allow you to display closed captioning on the monitor. The monitor is powered by 12 volts DC via the 4-Pin XLR connector, a V mount battery, or the included AC to DC adapter.
|
If you own a Sony production monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sony LMD-941W 9" LCD Monitor LMD-941W in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sony LMD-941W 9" LCD Monitor LMD-941W:
| LCD | 9" (22.8 cm)
a-Si TFT Active Matrix LCD | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Effective Picture Size (H x V) | 7.8 x 4.5" (19.9 x 11.4 cm) | | Pixel Efficiency | 99.99% | | Scan Modes | Normal: 0%
Over: 5% | | Color Gamut | SMPTE C
EBU
ITU-R BT709 | | Viewing angle (L/R/T/B) | 89°/89°/89°/89° | | Video Formats | HD
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
720 x 576p/50
720 x 480p/60/59.94
640 x 480p/60/59.94
SD
NTSC
PAL | | Input and Output Connectors | Video Input
Composite: 1 x BNC, 1.0 Vp-p±3 dB sync negative
SDI: 2 x BNC:
HDMI: 1 x HDMI (HDCP compatible)
Audio
1 x 3.5 mm stereo mini jack
Output
Composite: 1 x BNC, loop through with 75Ω auto termination
SDI: 1 x BNC, Output signal amplitude: 800 mVp-p ±10%,
output impedance: 75Ω unbalanced
Audio
Monitor: 1 x 3.5 mm stereo mini jack
Headphone: 1 x 3.5 mm stereo mini jack
Speaker: Built-in 0.5W (Mono) | | Remote Control | Parallel Remote
1 x 8-pin modular connector (pin assignable)
Serial Remote
1 x RJ-45 1-Base-T/100Base-TX, Ethernet/LAN | | Mounting | Under Tilt Stand
1 x 1/4"-20 x 6 mm deep threaded mounting hole
1 x 3/8"-16 x 6 mm deep threaded mounting hole
Arm Mount Plate
1 x 1/4"-20 x 6 mm deep threaded mounting hole
1 x 3/8"-16 x 6 mm deep threaded mounting hole
Rack Mount
Optional rack mount kit available | | Temperature & Humidity | Operating Temperature
Maximum: 32 to 104°F (0 to 40°C)
Recommended: 68 to 86°F (20 to 30°C)
Operating Humidity
30 to 85% (non-condensing)
Storage and Transport Temperature
-4 to 140°F (-20 to 60°C)
Storage and Transport Humidity
0 to 90% | | Pressure Level | Operating, storage, transport: 700 to 1060 hPa | | Power Requirements | 100 to 240 VAC, 50/60 Hz, 0.7 to 0.4A
12VDC, 2.5A | | DC In Plug | 1 x 4-pin Male XLR | | Power Consumption | Approximately 36W | | Dimensions (WxHxD) | Monitor: 8.9 x 6.6 x 2.9" (22.6 x 16.8 x 7.4 cm)
Monitor & tilting stand & AC power adapter: 8.9 x 7.3 x 6.4" (22.6 x 16.8 x 116.3 cm) | | Weight | Monitor: approximately 4.4 lb (2 kg)
Monitor & AC adapter: 5.75 lb (2.6 kg) | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 12.6 x 11.3 x 11.1" | |
The user manual for the Sony LMD-941W 9" LCD Monitor LMD-941W can be downloaded in .pdf
format if it did not come with your new production monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Sony users keep a unique electronic library
for Sony production monitorss,
where you can use our link to download the user manual for the Sony LMD-941W 9" LCD Monitor LMD-941W.
The user manual lists all of the functions of the Sony LMD-941W 9" LCD Monitor LMD-941W,
all the basic and advanced features and tells you how to use the production monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Sony service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Sony LMD-941W 9" LCD Monitor LMD-941W. User manuals are also
available on the Sony website under Professional Video - Monitors - Production Monitors.
