User manual for the SURGEX SX1115 Surge Eliminator & Power Conditioner SX1115
The user manual for the SURGEX SX1115 Surge Eliminator & Power Conditioner SX1115 provides
necessary instructions for the proper use of the product Pro Audio - Power Equipment - Power Distributors & Conditioners.

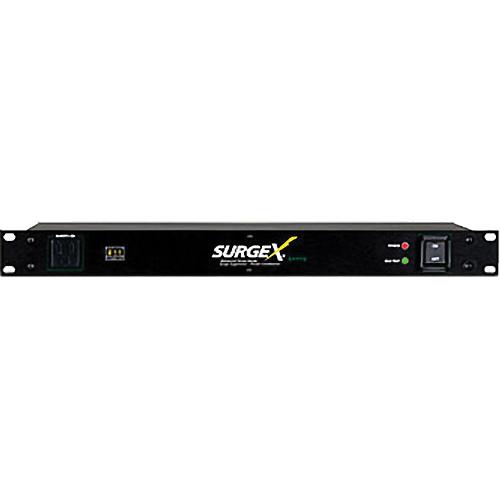

The SurgeX SX1115 Surge Eliminator & Power Conditioner is designed for broadcast/recording studios, custom design/build installations, and sound reinforcement applications. It has front panel connectors and a front-panel courtesy receptacle.
If you own a SURGEX power distributors & conditioners and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the SURGEX SX1115 Surge Eliminator & Power Conditioner SX1115 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the SURGEX SX1115 Surge Eliminator & Power Conditioner SX1115:
Load Rating
15 A @ 120 V
Power Requirement
10 W @ no load
Certifications & Approvals
UL 1449 Adjunct Classification Test Results: 1,000 surges, 6,000 V, 3,000 A, B3 pulse and measured suppressed voltage: 170 V, no failures Federal Guidelines: Grade A, Class 1, Mode 1 (CID A-A-55818) EMI/RFI Filter, Normal Mode (50 Ω load): 40 dB at 100 kHz, 50 dB at 300 kHz, 50 dB at 3 MHz, 50 dB at 30 MHz EMI/RFI Filter, Common Mode (50 Ω load): 18 dB at 300 kHz, 30 dB at 1 MHz, 50 dB at 5 MHz, 50 dB at 20 MHz
Safety
Surge Let-Through Voltage (6,000 V surge): 0 V Maximum Applied Surge Voltage: 6,000 V Maximum Applied Surge Current: Unlimited, due to current limiting Maximum Applied Surge Energy: Unlimited, due to current limiting Endurance (C62.41-1991 Category B3 pulses): 1 kV > 500,000, 3 kV > 10,000, 6 kV > 1,000
1.2 x 50 µs pulse, industry standard combination wave surge, as per IEEE C62.41.
The user manual for the SURGEX SX1115 Surge Eliminator & Power Conditioner SX1115 can be downloaded in .pdf
format if it did not come with your new power distributors & conditioners, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other SURGEX users keep a unique electronic library
for SURGEX power distributors & conditionerss,
where you can use our link to download the user manual for the SURGEX SX1115 Surge Eliminator & Power Conditioner SX1115.
The user manual lists all of the functions of the SURGEX SX1115 Surge Eliminator & Power Conditioner SX1115,
all the basic and advanced features and tells you how to use the power distributors & conditioners.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from SURGEX service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the SURGEX SX1115 Surge Eliminator & Power Conditioner SX1115. User manuals are also
available on the SURGEX website under Pro Audio - Power Equipment - Power Distributors & Conditioners.
