Synology RackStation RS2416  12-Bay iSCSI NAS Server RS2416
  • Manufacturer: Synology
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - NAS Enclosures
  • Safety instructions
  • Startup and operation of the nas enclosures
  • Tips for setting up your Synology
  • Settings and expert assistance
  • Contact Synology service
  • Troubleshooting
  • Warranty information

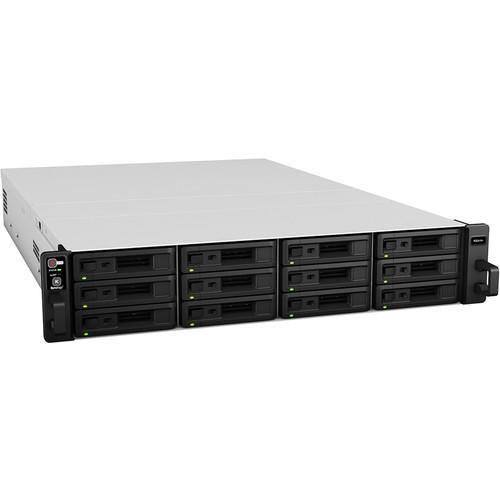

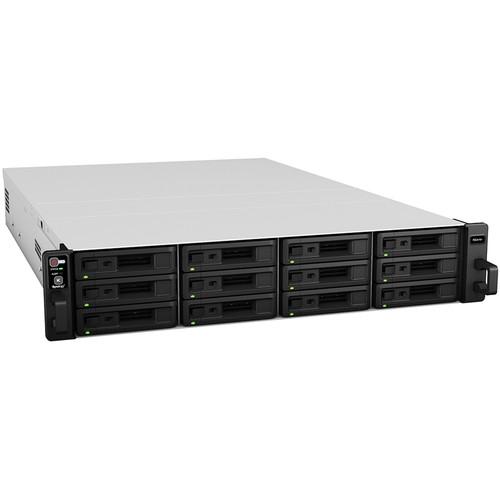

Synology RackStation RS2416  12-Bay iSCSI NAS Server RS2416 Synology RackStation RS2416  12-Bay iSCSI NAS Server RS2416
Click to enlarge image

We recommend checking out our discussion threads on the Synology RackStation RS2416 12-Bay iSCSI NAS Server RS2416, which address similar problems with connecting and setting up NAS Enclosures Synology.



User manual for the Synology RackStation RS2416 12-Bay iSCSI NAS Server RS2416

The user manual for the Synology RackStation RS2416 12-Bay iSCSI NAS Server RS2416 provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - NAS Enclosures.

With Btfs (B-tree file system) compatibility, the RackStation RS2416+ 12-Bay iSCSI NAS Server from Synology is capable of handling a wide variety of server tasks including online defragmentation, offline file/system check, online data scrubbing, transparent compression, snapshots, checksums on both data and metadata, and much more. In addition to Btfs compatibility, the RS2416+ comes as an all-in-one server solution covering everything from website hosting to surveillance, print-server functionality, and can even act as your own personal VPN.

Along with server functionality, the RS2416+ features extensive backup options to ensure your data remains safe and secure. Encryption is essential in keeping intruders out; as a result, Synology utilizes the AES-NI standard, complete with transmission speeds of over 399 MB/s read and 198 MB/s write. You can also take advantage of virtualization options - including LUN backup, snapshot, and clone - for faster data backup, to reduce strain on system hardware and provide consistency across all backups. If merely backing up your data isn't sufficient, you can also create active/passive servers for enhanced data redundancy. By doing this, one server will always be mirrored to another which can be placed at an offsite location to avoid possible data loss due to fire, theft, weather, etc.

As with all NAS servers the server is only as good as the hardware it is running on. Inside the RS2416+ you will find a 2.4 GHz quad-core Intel Atom C2583 processor and 2GB of DDR3 RAM. If the installed RAM isn't sufficient, you can upgrade the RAM up to 6GB via the two memory slots. The 12 drive bays support both 2.5" and 3.5" SATA II and SATA III HDDs and SSDs, with a total internal raw capacity of 96TB. On the outside of the NAS server you can attach additional storage devices via either of the two USB 2.0, two USB 3.0 ports, or the single expansion port. Network connectivity is provided via the 4 Gigabit LAN ports offering enhanced network redundancy and wake on LAN/WAN functionality. To keep everything cool, Synology has included a four-piece system fan with cool mode and quiet mode to reduce system noise.
If you own a Synology nas enclosures and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Synology RackStation RS2416 12-Bay iSCSI NAS Server RS2416 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Synology RackStation RS2416 12-Bay iSCSI NAS Server RS2416:
Specifications
Hardware Specifications
CPU Model
Intel Atom C2538
CPU Frequency
Quad Core 2.4 GHz
Floating Point
Yes
Hardware Encryption Engine (AES-NI)
Yes
Memory System Memory
2 GB DDR3
Memory Module Pre-installed
1 x 2 GB
Total Memory Slots
2
Memory Expandable Up To
6 GB (2 GB + 4 GB)
Storage Drive Bays
12
Maximum Drive Bays with Expansion Unit
24
Compatible Drive Type
3.5" SATA III / SATA II HDD
2.5" SATA III / SATA II HDD
2.5" SATA III / SATA II SSD
Maximum Internal Raw Capacity
96 TB (12 x 8 TB HDD) (Capacity may vary by RAID types)
Hot Swappable Drive Compatible
Yes
External Ports USB 2.0 Port
2
USB 3.0 Port
2
Expansion Port
1
File System Internal Drives
Btrfs, EXT 4
External Drives
Btrfs, EXT 4, EXT 3, FAT, NTFS, HFS+
Other Specifications
LAN Ports 4 x RJ-45 1 GbE LAN Port
(with link aggregation / failover support)
Wake on LAN/WAN Yes
System Fan 4 fans (80 x 80 mm)
Fan Speed Mode Cool mode
Quiet mode
Wireless Support (Dongle) Yes
Noise Level 41.5 dB(A)
Scheduled Power On/Off Yes
Power Supply Unit / Adapter 100 to 240 VAC
Power Frequency 50/60 Hz, Single phase
Power Consumption 70.58 W (Access)
39.11 W (HDD Hibernation)
83.26 W (Access, for RP model)
46.61 W (HDD Hibernation, for RP model)
BTU 240.99 BTU/hr (Access)
133.54 BTU/hr (HDD Hibernation)
284.29 BTU/hr (Access, for RP model)
159.15 BTU/hr (HDD Hibernation, for RP model)
Redundant Power Supply None
Environmental Specifcations Operating Temperature: 40 to 95°F / 5 to 35°C
Storage Temperature: -5 to 140°F / -20 to 60°C
Relative Humidity: 5 to 95% RH
Certifications FCC Class A
CE Class A
BSMI Class A
DSM Specifications
Storage Management Maximum Single Volume Size
108 TB
Maximum Internal Volume Number
512
Maximum iSCSI Target Number
32
Maximum iSCSI LUN
256
iSCSI LUN Clone/Snapshot, Windows ODX
Yes
Supported RAID Type Synology Hybrid RAID
Basic
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
RAID Migration Basic to RAID 1
Basic to RAID 5
RAID 1 to RAID 5
RAID 5 to RAID 6
Volume Expansion with Larger HDDs Synology Hybrid RAID
RAID 1
RAID 5
RAID 6
Volume Expansion by Adding a HDD Synology Hybrid RAID
RAID 5
RAID 6
JBOD
Global Hot Spare Supported RAID Type Synology Hybrid RAID
RAID 1
RAID 5
RAID 6
RAID 10
SSD Read/Write Cache Yes
File Sharing Capacity Maximum User Accounts
2048
Maximum Groups
256
Maximum Shared Folder
512
Maximum Shared Folder Sync Tasks
8
Maximum Concurrent CIFS/AFP/FTP Connections
512
Windows Access Control List (ACL) Integration
Yes NFS Kerberos Authentication
Yes
Data Protection Maximum Snapshots per Shared Folder
256 (at least 4 GB RAM is required)
64
Log Syslog Events per Second
800
Virtualization VMware vSphere 5 with VAAI
Windows Server 2012
Windows Server 2012 R2
Citrix Ready
RoHS Compliant Yes
Dimensions 3.46 x 16.93 x 27.24" / 88 x 430 x 692 mm
Weight 27.69 lb / 12.56 kg
Packaging Info
Package Weight 39.0 lb
Box Dimensions (LxWxH) 33.5 x 24.5 x 9.0"
The user manual for the Synology RackStation RS2416 12-Bay iSCSI NAS Server RS2416 can be downloaded in .pdf format if it did not come with your new nas enclosures, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Synology users keep a unique electronic library for Synology nas enclosuress, where you can use our link to download the user manual for the Synology RackStation RS2416 12-Bay iSCSI NAS Server RS2416.

The user manual lists all of the functions of the Synology RackStation RS2416 12-Bay iSCSI NAS Server RS2416, all the basic and advanced features and tells you how to use the nas enclosures. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Synology service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Synology RackStation RS2416 12-Bay iSCSI NAS Server RS2416. User manuals are also available on the Synology website under Computers & Solutions - Drives & Storage - NAS Enclosures.
