User manual Toshiba 1TB DT01ACA100 7200 RPM 3.5" Hard Disk DT01ACA100

Operating instructions and pdf manual for use - Toshiba 1TB DT01ACA100 7200 RPM 3.5" Hard Disk DT01ACA100 User manual, User manual Toshiba 1TB DT01ACA100 7200 RPM 3.5" Hard Disk DT01ACA100, Toshiba, 1TB, DT01ACA100, 7200, RPM, 3.5, Hard, Disk, DT01


User manual for Toshiba 1TB DT01ACA100 7200 RPM 3.5" Hard Disk DT01ACA100

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Toshiba 1TB DT01ACA100 7200 RPM 3.5
  • Manufacturer: Toshiba
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Internal Drives
  • Safety instructions
  • Startup and operation of the internal drives
  • Tips for setting up your Toshiba
  • Settings and expert assistance
  • Contact Toshiba service
  • Troubleshooting
  • Warranty information
  • Price: 50 USD
Toshiba 1TB DT01ACA100 7200 RPM 3.5 Toshiba 1TB DT01ACA100 7200 RPM 3.5 Toshiba 1TB DT01ACA100 7200 RPM 3.5 Toshiba 1TB DT01ACA100 7200 RPM 3.5

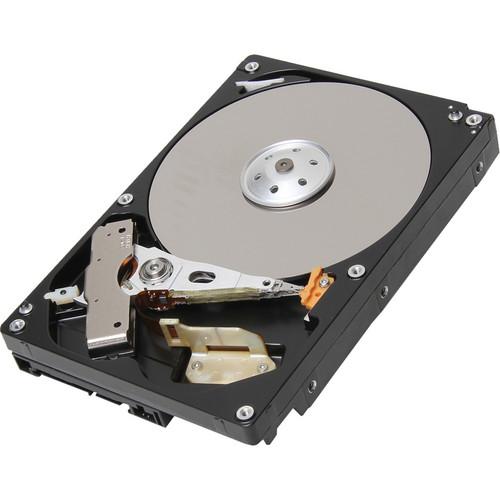

Click to enlarge image

We recommend checking out our discussion threads on the Toshiba 1TB DT01ACA100 7200 RPM 3.5" Hard Disk DT01ACA100, which address similar problems with connecting and setting up Internal Drives Toshiba.



User manual for the Toshiba 1TB DT01ACA100 7200 RPM 3.5" Hard Disk DT01ACA100

The user manual for the Toshiba 1TB DT01ACA100 7200 RPM 3.5" Hard Disk DT01ACA100 provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.

The 1TB DT01ACA100 7200 RPM 3.5" Hard Disk Drive from Toshiba is optimized for use with power-friendly consumer and commercial desktop computers, gaming PCs, and external HDDs. Offering a storage capacity of 1TB and using Advanced Format, this HDD drive provides up to 16% idle power savings. The 6 Gb/s SATA interface drive delivers 7200 RPM performance and allows manufacturers to deliver high-performance, high-capacity, power-efficient systems.
If you own a Toshiba internal drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Toshiba 1TB DT01ACA100 7200 RPM 3.5" Hard Disk DT01ACA100 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Toshiba 1TB DT01ACA100 7200 RPM 3.5" Hard Disk DT01ACA100:
Specifications
    Overview
    Drive Capacity 1 TB
    Drive Interface Serial ATA 3.0 / ATA-8
    Transfer Rate to Host 6 Gb/sec
    Number of User Data Cylinders 16,383
    Bytes per Sector (HOST) 512 byte
    Bytes per Sector (DISK) 4,096 byte
    Logical Blocks (LBA) 1,953,525,168
    Performance
    Rotational Speed 7,200 rpm
    Average Latency 4.17 ms
    Buffer Size 32 MB
    Seek Time Single Track Seek Time (read): 0.6 ms
    Single Track Seek Time (write): 0.8 ms
    Power Requirements
    Voltage 5 V (±5%), +12 VDC ±10%
    Read/Write Power 6.4 watts
    Active Idle Power 3.7 watts
    Standby Power 1.0 watts
    Sleep Power 1.0 watts
    Environmental
    Operating Temperature 0 to 60°C
    Non-Operating Temperature -40 to 70°C
    Operating Vibration 6.57 m/s² (0.67 G) RMS 5 to 500 Hz
    Non-Operating Vibration 10.2 m/s² (1.04 G) RMS 2 to 200 Hz
    Operating Shock 686 m/s² (70 G) 2 ms Half Sine
    Non-Operating Shock 3430 m/s² (350 G) 2 ms
    Half Sine
    Acoustics
    Idle 25 dB
    Seek 26 dB
    Reliability
    Load/Unload 300,000 times
    Error rate (non-recoverable, bits read) 1/1014 bit read
    Dimensions & Weight
    Dimensions 4.0 x 5.8 x 1.0" / 101.6 x 147.0 x 26.1 mm
    Weight 0.99 lb / 450 g
    Packaging Info
    Package Weight 1.2 lb
    Box Dimensions (LxWxH) 8.5 x 6.1 x 3.0"
    The user manual for the Toshiba 1TB DT01ACA100 7200 RPM 3.5" Hard Disk DT01ACA100 can be downloaded in .pdf format if it did not come with your new internal drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Toshiba users keep a unique electronic library for Toshiba internal drivess, where you can use our link to download the user manual for the Toshiba 1TB DT01ACA100 7200 RPM 3.5" Hard Disk DT01ACA100.

    The user manual lists all of the functions of the Toshiba 1TB DT01ACA100 7200 RPM 3.5" Hard Disk DT01ACA100, all the basic and advanced features and tells you how to use the internal drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Toshiba service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Toshiba 1TB DT01ACA100 7200 RPM 3.5" Hard Disk DT01ACA100. User manuals are also available on the Toshiba website under Computers & Solutions - Drives & Storage - Internal Drives.
