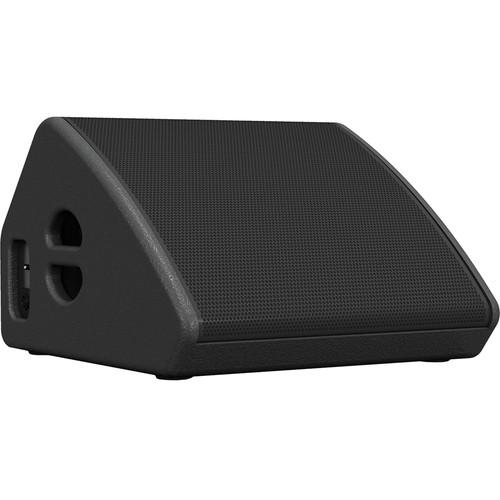

The TMW-115 Co-Axial Two-Way 15" Stage Monitor from Turbosound is a compact 1,600W switchable passive/bi-amped floor monitor consisting of a co-axial carbon fiber loaded 15" neodymium low frequency and titanium dome 1" neodymium high frequency combination driver in a reflex loaded enclosure designed for concert touring. The co-axial drive unit is matched with an exponential horn flare for improved acoustic loading and controlled coverage. HF and LF coils utilize the same neodymium magnet assembly, which gives better efficiency and reduced weight. This allows the creation of a minimal footprint monitor wedge which, combined with a 35° projection angle and 60° horizontal by 40° vertical dispersion pattern, is ideal as a vocal monitor on smaller stages where space is limited, while its low profile maximizes audience sight lines.
The 5/8" birch plywood cabinet is equipped with two flush recessed handles, and Neutrik speakON NL4 connectors are provided at each side for tidy inter-connects. The cabinet is finished in semi matte black paint finish and includes a curved profile perforated steel grille backed with reticulated foam and supported by a steel reinforcing strip positioned across the front of the drive unit.
|
If you own a Turbosound pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Turbosound TMW-115 Co-Axial Two-Way 15" Stage TMW115 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Turbosound TMW-115 Co-Axial Two-Way 15" Stage TMW115:
| Components | LF Driver / HF Compression Driver: 1 x Co-axial 15" (381 mm) | | Frequency Response | 90 Hz to 18 kHz ±3 dB
50 Hz to 20 kHz ±10 dB | | Dispersion | 60° H x 40° V @ -6 dB points | | Sensitivity | 98 dB (1 W @ 1 m) | | Power Handling | LF: 400 W continuous, 1,600 W peak
HF: 80 W continuous, 320 W peak
Passive: 550 W continuous, 2,200 W peak | | Maximum SPL | 125 dB continuous
131 dB peak | | Nominal Impedance | LF: 8 ohms
HF: 6 ohms
Passive: 8 ohms | | Crossover | Passive crossover network at 1.3 kHz, switchable active / passive | | Construction | 5/8" (15 mm) Birch plywood finished in black textured polyurethane, two recessed carrying handles | | Grille | Black powder coated perforated steel backed with foam | | Connectors | 2 x Neutrik speakON NL4 | | Dimensions | 14.1 x 20.9 x 22.9" (359 x 530 x 580 mm) | | Weight | 49.5 lb (22.5 kg) | |
