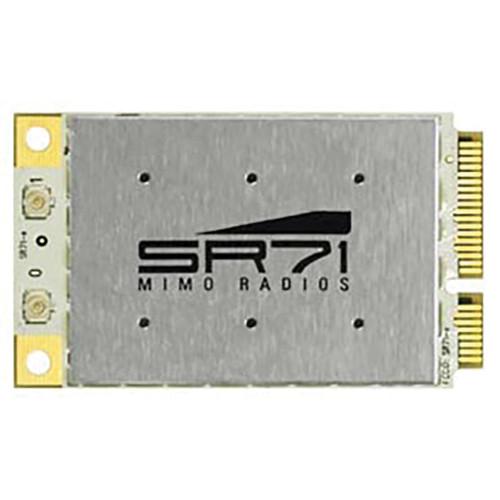

The Hi-Power 802.11n PCI-E Module from Ubiquiti Networks is a PCI-E wireless adapter featuring IEEE 802.11a/b/g/n wireless connectivity. It also features dual-band functionality allowing you to connect to either the 2.4 GHz or 5 GHz frequencies. While indoors you can take advantage of a Wi-Fi range of up to 656 ft (200 m) and outdoors this PCI-E adapter supports connections at a distance of up to 31 mi (50 km).

Please note: Range performance is antenna dependent
If you own a Ubiquiti Networks wireless adapters & cards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ubiquiti Networks Hi-Power 802.11n PCI-E Module SR71E in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ubiquiti Networks Hi-Power 802.11n PCI-E Module SR71E:
Specifications
    Wireless Chipset Atheros AR9220 with DFS support
    Radio Operation IEEE 802.11a/b/g/n
    Interface PCI-E
    Operation Voltage 3.3 VDC
    Antenna Ports 2 x u.fl for 2x2 MIMO Operation
    Temperature Range -4 to 158°F / -20 to +70°C
    Security 802.11i with AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
    Data Rates Legacy 802.11a/b/g (1-54 Mb/s), 802.11n (up to 300 Mb/s)
    RoHS Compliance Yes
    Wireless Modular Approvals FCC , Industry Canada, CE (100 mW limited)
    2412 to 2462 MHz Operating Frequency 2.4 GHz Tx Power Specifications
    DataRate Avg. TX Tolerance
    11b/g
    1-24 Mb/s 26 dBm +/-2 dB
    36 Mb/s 24 dBm +/-2 dB
    48 Mb/s 22 dBm +/-2 dB
    54 Mb/s 20 dBm +/-2 dB
    2.4 GHz 11n HT20
    MCS0 26 dBm +/-2 dB
    MCS1 26 dBm +/-2 dB
    MCS2 26 dBm +/-2 dB
    MCS3 25 dBm +/-2 dB
    MCS4 24 dBm +/-2 dB
    MCS5 23 dBm +/-2 dB
    MCS6 21 dBm +/-2 dB
    MCS7 19 dBm +/-2 dB
    MCS8 26 dBm +/-2 dB
    MCS9 26 dBm +/-2 dB
    MCS10 26 dBm +/-2 dB
    MCS11 25 dBm +/-2 dB
    MCS12 24 dBm +/-2 dB
    MCS13 23 dBm +/-2 dB
    MCS14 21 dBm +/-2 dB
    MCS15 19 dBm +/-2 dB

    2.4 GHz Rx Specifications
    DataRate Avg. TX Tolerance
    11b/g
    1-24 Mb/s -97 dBm +/-3 dB
    36 Mb/s -90 dBm +/-3 dB
    48 Mb/s -86 dBm +/-3 dB
    54 Mb/s -84 dBm +/-3 dB
    2.4 GHz 11n HT20
    MCS0 -97 dBm +/-3 dB
    MCS1 -96 dBm +/-3 dB
    MCS2 -93 dBm +/-3 dB
    MCS3 -91 dBm +/-3 dB
    MCS4 -87 dBm +/-3 dB
    MCS5 -84 dBm +/-3 dB
    MCS6 -78 dBm +/-3 dB
    MCS7 -75 dBm +/-3 dB
    MCS8 -98 dBm +/-3 dB
    MCS9 -97 dBm +/-3 dB
    MCS10 -94 dBm +/-3 dB
    MCS11 -92 dBm +/-3 dB
    MCS12 -88 dBm +/-3 dB
    MCS13 -85 dBm +/-3 dB
    MCS14 -79 dBm +/-3 dB
    MCS15 -76 dBm +/-3 dB
    5745 to 5825 MHz Operating Frequency 5 GHz Tx Power Specifications
    DataRate Avg. TX Tolerance
    11a
    1-24 Mb/s 24 dBm +/-2 dB
    36 Mb/s 22 dBm +/-2 dB
    48 Mb/s 20 dBm +/-2 dB
    54 Mb/s 19 dBm +/-2 dB
    5 GHz 11n
    MCS0 24 dBm +/-2 dB
    MCS1 24 dBm +/-2 dB
    MCS2 24 dBm +/-2 dB
    MCS3 22 dBm +/-2 dB
    MCS4 22 dBm +/-2 dB
    MCS5 22 dBm +/-2 dB
    MCS6 20 dBm +/-2 dB
    MCS7 17 dBm +/-2 dB
    MCS8 24 dBm +/-2 dB
    MCS9 24 dBm +/-2 dB
    MCS10 24 dBm +/-2 dB
    MCS11 22 dBm +/-2 dB
    MCS12 22 dBm +/-2 dB
    MCS13 22 dBm +/-2 dB
    MCS14 20 dBm +/-2 dB
    MCS15 17 dBm +/-2 dB

    5 GHz Rx Specifications
    11a 1-24 Mbps -96 dBm +/-3dB
    36 Mb/s -95 dBm +/-3 dB
    48 Mb/s -94 dBm +/-3 dB
    54 Mb/s -91 dBm +/-3 dB
    5 GHz 11n
    MCS0 -97 dBm +/-3 dB
    MCS1 -96 dBm +/-3 dB
    MCS2 -93 dBm +/-3 dB
    MCS3 -91 dBm +/-3 dB
    MCS4 -87 dBm +/-3 dB
    MCS5 -84 dBm +/-3 dB
    MCS6 -78 dBm +/-3 dB
    MCS7 -75 dBm +/-3 dB
    MCS8 -98 dBm +/-3 dB
    MCS9 -97 dBm +/-3 dB
    MCS10 -94 dBm +/-3 dB
    MCS11 -92 dBm +/-3 dB
    MCS12 -88 dBm +/-3 dB
    MCS13 -85 dBm +/-3 dB
    MCS14 -79 dBm +/-3 dB
    MCS15 -76 dBm +/-3 dB
    Average Current Consumption 100% TX (using TX99 test tool)
    6 Mbps: 1.30 A
    MCS0, HT20: 1.30 A
    MCS15, HT20: 0.70 A
    MCX15, HT40: 0.70 A
    Real-World (using iPerf long file transfer)
    6 Mbps: 0.75 A
    MCS0, HT20: 0.75 A
    MCS15, HT20: 0.50 A
    MCX15, HT40: 0.50 A
    Idle
    6 Mbps: 0.25 A
    MCS0, HT20: 0.25 A
    MCS15, HT20: 0.25 A
    MCX15, HT40: 0.25 A
    Range Performance Indoor (Antenna Dependent)
    Up to 656 ft / 200 m
    Outdoor (Antenna Dependent)
    Over 31 mi / 50 km
    Dimensions Not specified by manufacturer
    Weight Not specified by manufacturer
