User manual ViewSonic Viewsonic VA2232WM-LED 22" VA2232WM-LED

Operating instructions and pdf manual for use - ViewSonic Viewsonic VA2232WM-LED 22" VA2232WM-LED User manual, User manual ViewSonic Viewsonic VA2232WM-LED 22" VA2232WM-LED, ViewSonic, Viewsonic, VA2232WM-LED, 22, VA2232WM-LED,


User manual for ViewSonic Viewsonic VA2232WM-LED 22" VA2232WM-LED

ViewSonic Viewsonic VA2232WM-LED 22
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your
  • Settings and expert assistance
  • Contact service
  • Troubleshooting
  • Warranty information
  • Price: 180 USD
We recommend checking out our discussion threads on the ViewSonic Viewsonic VA2232WM-LED 22" VA2232WM-LED, which address similar problems with connecting and setting up Computer Monitors .



User manual for the ViewSonic Viewsonic VA2232WM-LED 22" VA2232WM-LED

The user manual for the ViewSonic Viewsonic VA2232WM-LED 22" VA2232WM-LED provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

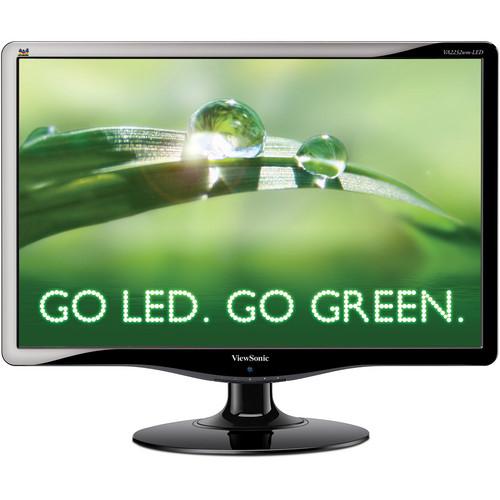

The Viewsonic VA2232WM-LED 22" Widescreen LCD Computer Display from ViewSonic is a high definition monitor with an optimal resolution of 1680 x 1050. Its screen has a 16:10 aspect ratio and a sRGB color calibration function.
If you own a computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ViewSonic Viewsonic VA2232WM-LED 22" VA2232WM-LED in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ViewSonic Viewsonic VA2232WM-LED 22Download user manual for ViewSonic Viewsonic VA2232WM-LED 22" VA2232WM-LED
(PDF file, 1.03 MB)
Additional parameters of the ViewSonic Viewsonic VA2232WM-LED 22" VA2232WM-LED:
Specifications
    Panel/Display
    Type Wide Color TFT Active Matrix LCD
    Viewable Size 22"
    Brightness 300cd/m²
    Contrast Ratio 1000:1 static (10,000,000:1 dynamic)
    Viewing Angle 170° horizontal, 160° vertical
    Pixel Dot Pitch 0.282mm horizontal, 0.282 vertical
    Response Time 5ms
    Panel Life 50,000 hours (typical)
    Colors Supported Up to 16.7 million
    Signal
    Internal Interface VGA, DVI-D
    Frequency Horizontal: 24-82kHz
    Vertical: 50-85Hz
    Sync Type TTL separated sync
    Resolution 1680 x 1050 (optimum)
    Input/Output Connectors
    Analog 1 x VGA
    Digital 1 x DVI-D
    Audio Input 1 x 1/8" (3.5mm) audio jack
    Hub Ports None
    Speakers 2 x built-in 2W speakers
    Mount VESA (100 x 100mm)
    Controls
    Buttons Power, Down, Up, 1, 2
    On-Screen Display Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB, DVI), Audio adjust (Volume mute), Color Adjust (sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B]), Information, Manual Image Adjust (H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Response Time, Aspect Ratio, Eco-mode), Setup Menu(Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off), Memory Recall
    Auto Configuration Yes
    Touch Screen No
    Tilt/Swivel Range Tilt: Down 5° Up 20°
    Swivel: None
    Height: None
    Pivot: None
    Security Kensington lock slot
    Compliant Standards UL / cUL, FCC-B (including ICES003), CE, CB, TUV-S, NOM, BSMI, PSB, Energy Star, EPEAT Silver, RoHS
    System Requirements Computer with VGA or DVI-D output
    Power Requirements AC: 100-240V, 50/60Hz
    Consumption: 25W (typical), 18W (optimized), 14W (conserved)
    Environmental Requirements Operating
  • Temperature: 32-104°F / 0-40°C
  • Humidity: 10-90% (non-condensing)
  • Dimensions With Stand: 20.1 x 16.4 x 7.7" / 51.07 x 41.62 x 19.54cm
    Without Stand: 20.1 x 13.9 x 2.41" / 51.07 x 35.24 x 6.12cm
    Weight With Stand: 8.6 lbs / 3.9 kg
    Without Stand: 7.8 lbs / 3.5 kg
    Packaging Info
    Package Weight 11.5 lb
    Box Dimensions (LxWxH) 22.5 x 19.8 x 5.5"
    The user manual for the ViewSonic Viewsonic VA2232WM-LED 22" VA2232WM-LED can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other users keep a unique electronic library for computer monitorss, where you can use our link to download the user manual for the ViewSonic Viewsonic VA2232WM-LED 22" VA2232WM-LED.

    The user manual lists all of the functions of the ViewSonic Viewsonic VA2232WM-LED 22" VA2232WM-LED, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ViewSonic Viewsonic VA2232WM-LED 22" VA2232WM-LED. User manuals are also available on the website under Computers & Solutions - Monitors & Displays - Computer Monitors.
