User manual Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102

Operating instructions and pdf manual for use - Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102 User manual, User manual Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102, Vivotek, VS8102, D1, H.264, 1-Channel, Video, Server, VS8102,


User manual for Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

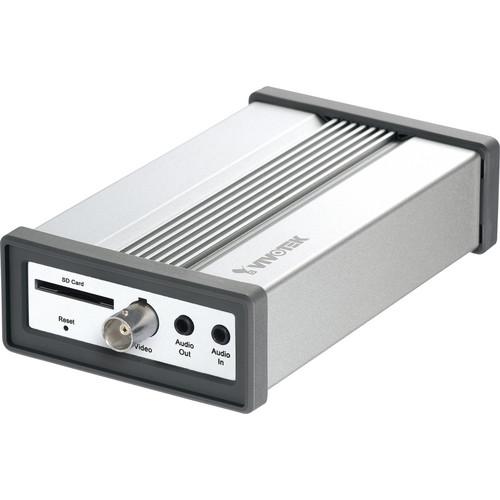

Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102
  • Manufacturer: Vivotek
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders
  • Safety instructions
  • Startup and operation of the video encoders & decoders
  • Tips for setting up your Vivotek
  • Settings and expert assistance
  • Contact Vivotek service
  • Troubleshooting
  • Warranty information
  • Price: 263 USD
We recommend checking out our discussion threads on the Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102, which address similar problems with connecting and setting up Video Encoders & Decoders Vivotek.



User manual for the Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102

The user manual for the Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.

Migration from analog to digital surveillance is made easier with the use of the VS8102 D1 H.264 1-Channel Video Server from Vivotek. Offering H.264, MJPEG, and MPEG-4 compression it will reduce file size and save on bandwidth requirements. Also, it can support multiple streams from the analog BNC video input, each of which can be individually configured with its own frame rate, resolution, and image quality. Along with this, it has a standard RS-485 port for control over PTZ cameras.

Intelligent video function can further your digital system's overall capabilities by adding triple windows video motion detection as well as tamper detection and event notifications. It has additional security in the use of multiple security protocols, including HTTPS and 802.1x. With networking users can also gain the ability to stream footage to up to 10 clients simultaneously.

Physically, the video server is equipped with both a 3.5mm input and a 3.5mm output for two-way audio. Also, it has an SD/SDHC card slot for local storage with compressed video and stills. Powering the unit is simple as well with the option for 12 VDC PoE or 24 VAC as well as a 12 VDC output for analog cameras.
If you own a Vivotek video encoders & decoders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102Download user manual for Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102
(PDF file, 8.92 MB)
Additional parameters of the Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102:
System
CPU TI DM365 SoC
Flash Memory 128 MB
RAM 128 MB
Embedded Operating System Linux 2.6
Camera Control
Connection 1 x RS-485
Supported Devices DynaDome / SmartDome, Pelco D, LiLin, Pelco P, Samsung scc643, and customized types
Supports CGI command serial driver
Video
Compression H.264
MJPEG
MPEG-4
Connection 1 x BNC
Streaming Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Max Resolution NTSC: 720 x 480 at 30 fps
PAL: 720 x 576 at 25 fps
Audio
Audio Compression GSM-AMR speech encoding, bit rate: 4.75 to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 to 128 kbps
Interface 1 x 3.5mm input
1 x 3.5mm output
Audio Features Supports two-way audio via SIP protocol
Supports audio mute
Networking
Connections 1 x RJ-45 Ethernet
Supported Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm Triple-window video motion detection
1 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper detection
Security Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
Simultaneous Client Access 10 clients on-line monitoring at the same time
General
Local Storage SD/SDHC card slot
LED Indicators System power and status indicator
System activity and network link indicator
System Requirements OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above
Power Input 12 VDC PoE
24 VAC
Power Consumption 5 W
Power Output 12 VDC
Operating Conditions Temperature: 32 to 131°F (0 to 55°C)
Humidity: 20 to 80%
Dimensions 5.1 x 3.1 x 1.3" (130 x 78 x 34 mm)
Weight 8.5 oz (242 g)
Packaging Info
Package Weight 1.72 lb
Box Dimensions (LxWxH) 10.6 x 8.1 x 2.6"
The user manual for the Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102 can be downloaded in .pdf format if it did not come with your new video encoders & decoders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Vivotek users keep a unique electronic library for Vivotek video encoders & decoderss, where you can use our link to download the user manual for the Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102.

The user manual lists all of the functions of the Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102, all the basic and advanced features and tells you how to use the video encoders & decoders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Vivotek service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Vivotek VS8102 D1 H.264 1-Channel Video Server VS8102. User manuals are also available on the Vivotek website under Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.
