User manual for the Watec WAT-902H2 1/2" Ultra Compact B/W 902H2 ULTIMATE EIA
The user manual for the Watec WAT-902H2 1/2" Ultra Compact B/W 902H2 ULTIMATE EIA provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.

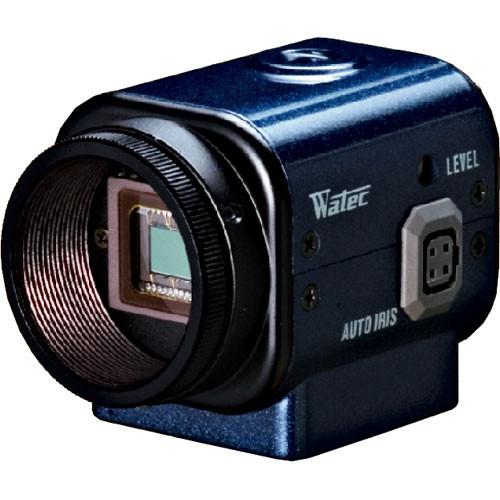

The Watec WAT-902H2 Ultimate is an ultra compact, high performance CCTV camera capable of producing and maintaining the level of image quality expected in critical 24-hour security environments. This is achieved through the use of a 1/2" CCD along with a number of internal electronic controls and an auto iris function. These outstanding capabilities coupled with the camera's absolutely small size make it a particularly wise choice for applications requiring dependable yet minimally intrusive round-the-clock security monitoring.
Some of the key differences between a Supreme and Ultimate model camera include a slightly higher light sensitivity (on the Ultimate model), manual gain control, manual back-light compensation, better signal to noise ratio and a more versatile electronic shutter function (see specs).
|
If you own a Watec wired analog & hd cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Watec WAT-902H2 1/2" Ultra Compact B/W 902H2 ULTIMATE EIA in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Watec WAT-902H2 1/2" Ultra Compact B/W 902H2 ULTIMATE EIA:
| Signal System | NTSC | | Image Sensor | 1/2" B/W IT CCD | | Resolution | 570 Lines | | Number of Pixels | 768 x 494 | | Lens | Accepts CS mount lenses | | Iris Operation | Auto Video/DC | | Minimum Illumination | 0.0001 Lux (F1.4) | | Signal-to-Noise Ratio | >50dB | | Controls | • Electronic Iris: 1/60-1/100,000 / 1/100,000 sec
• Electronic Shutter: 1/60 (off), 1/00 (fl) 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10,000, 1/100,000
• AGC: Hi: 5-60dB / Lo: 5-32dB
• MGC: 5-60dB
• Back Light Compensation: (On) Center, Lower, Center + Lower (Off) | | Sync | Internal | | Video Output | BNC | | Audio Output | No | | Motion Detection | No | | Alarm I/O | No | | Control Ports | N/A | | Power Requirements | 12 VDC | | Power Consumption | 1.3W | | Operating Temperature | 14 - 104°F (-10 ~ +40°C) | | Dimensions (WxHxD) | 1.4 x 1.4 x 2.4" (36 x 35 x 59mm) | | Weight | 3.5 oz (98 g) | | Package Weight | 0.26 lb | | Box Dimensions (LxWxH) | 2.7 x 2.4 x 1.8" | |
