User manual for Yamaha MCR-B043 30W Bluetooth Wireless Music System MCR-B043BL
Overall Rating: 4.5
90% of respondents would recommend this to a friend.
- Manufacturer: Yamaha
- Basic description and contents of package
- Product classification: TVs & Entertainment - Tabletop Audio - Mini Hi-Fi Systems
- Safety instructions
- Startup and operation of the mini hi-fi systems
- Tips for setting up your Yamaha
- Settings and expert assistance
- Contact Yamaha service
- Troubleshooting
- Warranty information
- Price: 300 USD
Click to enlarge image
|
We recommend checking out our discussion threads on the Yamaha MCR-B043 30W Bluetooth Wireless Music System MCR-B043BL,
which address similar problems with connecting and setting up Mini Hi-Fi Systems Yamaha.
|
User manual for the Yamaha MCR-B043 30W Bluetooth Wireless Music System MCR-B043BL
The user manual for the Yamaha MCR-B043 30W Bluetooth Wireless Music System MCR-B043BL provides
necessary instructions for the proper use of the product TVs & Entertainment - Tabletop Audio - Mini Hi-Fi Systems.

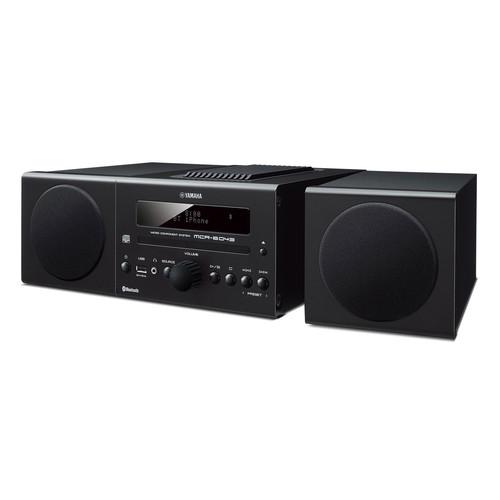

Designed for playback from nearly any audio source, the black Yamaha MCR-B043 30W Bluetooth Wireless Music System features a built-in CD player, digital AM/FM tuner, USB port, and ⅛" input. If you prefer wireless connectivity, its Bluetooth option will connect to any compatible smartphone, tablet, or computer. The USB port will not only play MP3 and WMA files from a pen drive, it will also charge your portable devices. The system outputs up to 30W of total power from its two speakers, which have a full-range, bass-reflex design.
|
If you own a Yamaha mini hi-fi systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Yamaha MCR-B043 30W Bluetooth Wireless Music System MCR-B043BL in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Yamaha MCR-B043 30W Bluetooth Wireless Music System MCR-B043BL:
| Power Rating | 15 W per channel @ 6 Ohms, 1 kHz, 10% THD | | No. of Channels | 2 | | AM/FM Tuner | Yes | | AM/FM Presets | 30/30 | | Tuning Range | FM: 87.50 to 107.90 MHz
AM: 530 to 1710 kHz | | CD Playback Format | MP3, WMA | | Tray Type | Single tray | | Input | 1 x USB
1 x ⅛" (3.5 mm) stereo mini (16 to 32 Ohms) | | Wireless Connectivity | Bluetooth audio streaming | | Maximum Input Power | Analog Input: 2.0 V | | Bluetooth Version | 3.0 | | Bluetooth Profile Support | A2DP, AVRCP | | Bluetooth Codecs | SBC | | Bluetooth Range | 32.8' (10.0 m) without obstructions | | USB Playback Formats | MP3, WMA | | Equalization | EQ Low (Bass), EQ Mid (Middle), EQ High (Treble): ±10 dB | | Alarm Function | Alarm, snooze, sleep | | Audio Alarm Modes | Beep, source (CD, USB, radio), source + beep | | Power Supply | 120 VAC, 60 Hz | | Power Consumption | On: 30 W
Standby: ≤3.5 W
ECO Standby: ≤0.5 W | | Dimensions (W x H x D) | 7.1 x 5.1 x 10.9" (18.1 x 13.0 x 27.6 cm) | | Weight | 5.7 lb (2.6 kg) | | Configuration | Full-range, bass-reflex | | Speaker Type | Bookshelf | | Frequency Response | 50 Hz to 20 kHz (-10dB) | | Driver | 4.5" (11.4 cm) cone | | Shielding | Non-magnetic shielding | | Dimensions (W x H x D) | Each Speaker: 5.1 x 4.0 x 9.9" (13.0 x 10.2 x 25.1 cm) | | Weight | Each Speaker: 3.3 lb (1.5 kg) | | Package Weight | 15.8 lb | | Box Dimensions (LxWxH) | 20.7 x 14.2 x 7.7" | |
The user manual for the Yamaha MCR-B043 30W Bluetooth Wireless Music System MCR-B043BL can be downloaded in .pdf
format if it did not come with your new mini hi-fi systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Yamaha users keep a unique electronic library
for Yamaha mini hi-fi systemss,
where you can use our link to download the user manual for the Yamaha MCR-B043 30W Bluetooth Wireless Music System MCR-B043BL.
The user manual lists all of the functions of the Yamaha MCR-B043 30W Bluetooth Wireless Music System MCR-B043BL,
all the basic and advanced features and tells you how to use the mini hi-fi systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Yamaha service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Yamaha MCR-B043 30W Bluetooth Wireless Music System MCR-B043BL. User manuals are also
available on the Yamaha website under TVs & Entertainment - Tabletop Audio - Mini Hi-Fi Systems.
