User manual Yamaha MX49 49-Key Music Production Synthesizer MX49

Operating instructions and pdf manual for use - Yamaha MX49 49-Key Music Production Synthesizer MX49 User manual, User manual Yamaha MX49 49-Key Music Production Synthesizer MX49, Yamaha, MX49, 49-Key, Music, Production, Synthesizer, MX49,


User manual for Yamaha MX49 49-Key Music Production Synthesizer MX49

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.

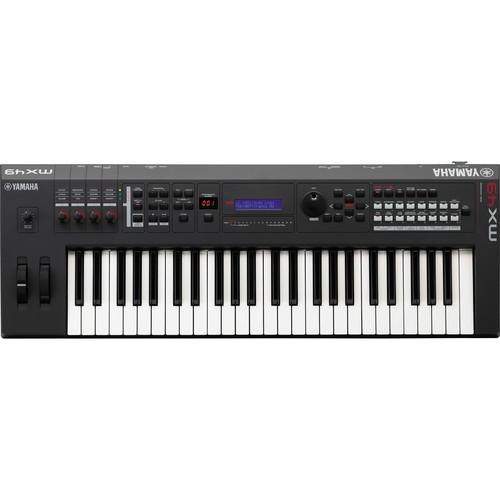

Yamaha MX49 49-Key Music Production Synthesizer MX49
  • Manufacturer: Yamaha
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Synthesizer Keyboards
  • Safety instructions
  • Startup and operation of the synthesizer keyboards
  • Tips for setting up your Yamaha
  • Settings and expert assistance
  • Contact Yamaha service
  • Troubleshooting
  • Warranty information
  • Price: 500 USD
We recommend checking out our discussion threads on the Yamaha MX49 49-Key Music Production Synthesizer MX49, which address similar problems with connecting and setting up Synthesizer Keyboards Yamaha.



User manual for the Yamaha MX49 49-Key Music Production Synthesizer MX49

The user manual for the Yamaha MX49 49-Key Music Production Synthesizer MX49 provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Synthesizer Keyboards.

The MX49 49-Key Music Production Synthesizer from Yamaha is a 49 key music synthesizer that combines MOTIF XS sounds, USB Audio, MIDI connectivity and DAW and VST controller features.

The MX49 includes more than 1000 voices directly from the Yamaha MOTIF XS. It includes acoustic sounds like piano, electric piano, strings, drums as well as complex 8-element synth sounds. Each voice can be customized and stored. You can also use the on-board VCM effects, which are designed to simulate the effects found on vintage keyboards.

The keyboard also includes the performance mode feature also found on the MOTIF keyboard line. This mode allows you to combine voices for play on the keyboard using the dedicated "split" and "layer buttons" and is handy for creating performances that simulate a whole band playing.

In addition to the tone generator and performance mode, the MX49 is also a capable USB Audio and MIDI Interface. Connect a USB cable to your computer and you can monitor all the sounds from your DAW via the headphone output of the MX49, or you can listen by connecting to external studio monitors. The MX49 audio interface is bi-directional so you can record the internal sounds of the keyboard directly to your computer, without ever going to the analog domain. Also, you can connect an additional controller to your computer via the MIDI in port, or use the keyboard to control other MIDI devices such as hardware sequencers and groove boxes by connecting them to the MX49's MIDI out port.

Beyond the USB audio/MIDI port, the keyboard also has a USB to Device port so you can connect USB devices for storing MX49 data to external memory. You can also play back .wav files directly from a USB stick using this port. For playing back audio from external audio devices like iPods, you can connect to the AUX input using a 3.5mm mini stereo cable.

The MX49 is also equipped with knobs and buttons for controlling internal sounds, DAW parameters and VST instruments. The interface can be customized with the included remote template editor so that any VST can be set up to be controlled by the MX49. There are also advanced integration templates for use with a variety of DAWs. When used with Cubase for instance, there is a feature that allows any parameter can be controlled by the keyboards rotary encoder just by mousing over it.
If you own a Yamaha synthesizer keyboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Yamaha MX49 49-Key Music Production Synthesizer MX49 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Yamaha MX49 49-Key Music Production Synthesizer MX49Download user manual for Yamaha MX49 49-Key Music Production Synthesizer MX49
(PDF file, 14.52 MB)
Additional parameters of the Yamaha MX49 49-Key Music Production Synthesizer MX49:
Specifications
    Keyboard 49 Keys, Initial Touch
    Polyphony 128 Notes
    Multi Timbral 16 Parts (Internal)
    Synthesis Method AWM2
    Sequencer Tempo: (BPM) 5 - 300
    Songs: 27 Demo Songs
    Patterns: 208
    Arpeggio: 999 types
    Sequence formats: SMF Format 0 (playback only)
    Effects 9x Reverb (42 presets)
    17x Chorus (88 presets)
    48x Insertion Effect (267 presets)
    1x Master EQ (5 bands)
    Controllers 1x Pitch Bend Wheel
    1x Modulation Wheel
    4x Assignable Knob
    1x Data Dial
    Sound File Format .wav, Approx. 166 MB (when converted to 16-bit linear format)
    Presets Normal Preset: 1,106 Normal Voices + 61 Drum Kits
    GM: 128 Normal Voices + 1 Drum Kit
    User: 128 Normal Voices + 8 Drum Kits Performance: 128 (16 parts)
    Inputs/Outputs 1x Stereo 1/4" Output
    1x Headphone 1/4" Output
    1x Foot Controller Jack
    1x Sustain Jack
    1x MIDI [In]
    1x MIDI [Out]
    1x USB [To Host] 1x USB[To Device]
    1x Aux Stereo 3.5mm Mini Input
    1x DC In
    Display 320 x 240 dot, 5.7 Inch Graphic Color Backlit LCD
    Power Supply 9 W
    Dimensions 32.7 x 3.5 x 11.7" (830 x 91 x 298 mm)
    Weight 8.4 lb (3.8 kg)
    Packaging Info
    Package Weight 11.95 lb
    Box Dimensions (LxWxH) 38.4 x 15.4 x 7.5"
    The user manual for the Yamaha MX49 49-Key Music Production Synthesizer MX49 can be downloaded in .pdf format if it did not come with your new synthesizer keyboards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Yamaha users keep a unique electronic library for Yamaha synthesizer keyboardss, where you can use our link to download the user manual for the Yamaha MX49 49-Key Music Production Synthesizer MX49.

    The user manual lists all of the functions of the Yamaha MX49 49-Key Music Production Synthesizer MX49, all the basic and advanced features and tells you how to use the synthesizer keyboards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Yamaha service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Yamaha MX49 49-Key Music Production Synthesizer MX49. User manuals are also available on the Yamaha website under Pro Audio - Musical Instruments - Synthesizer Keyboards.
