User manual for the Zeiss Victory Fl Diavari 6-24x72 T* Riflescope 52 17 95 99 43
The user manual for the Zeiss Victory Fl Diavari 6-24x72 T* Riflescope 52 17 95 99 43 provides
necessary instructions for the proper use of the product Optics - Riflescopes & Sights - Riflescopes.

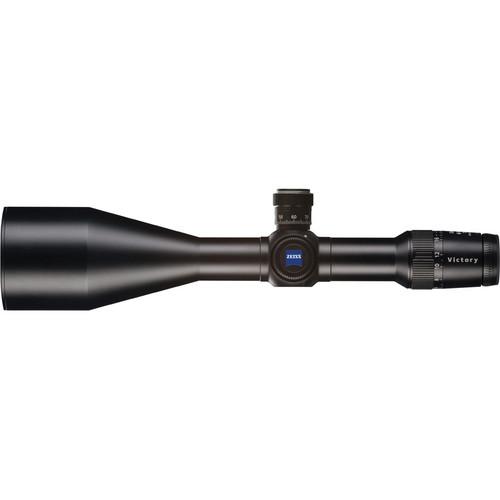

The Victory FL Diavari 6-24x72 T* from Zeiss puts enhanced clarity, long-range capability, and startling low-light performance to the top of your receiver. Starting at 6x the FOV is wide enough for mid-range target acquisition, dialing up to 24x brings distant or smaller targets in close for exacting shot placement. The superlative 72mm objective brings twilight performance to a new level - at 24x the exit pupil is a remarkable 3mm.
If you own a Zeiss riflescopes and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Zeiss Victory Fl Diavari 6-24x72 T* Riflescope 52 17 95 99 43 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Zeiss Victory Fl Diavari 6-24x72 T* Riflescope 52 17 95 99 43:
Specifications
Magnification
6-24x
Objective Lens Diameter
72 mm
Main-Tube Diameter
34 mm
Reticle
Illuminated #43 - RFP
Field of View
6x: 3.5° - 18.6' @ 100 yd / 6.2 m at 100 m 24x: 1.0° - 5.1' @ 100 yd / 1.7 m at 100 m
Parallax Correction
Side focus: 50 yd / 55 m to infinity
Eye Relief
6x: 3.54" / 9.0 cm 24x: 3.54" / 9.0 cm
Exit Pupil Diameter
6x: 12.0 mm 24x: 3.0 mm
Filter Size
Not specified by manufacturer
Impact Point Correction
1/4 MOA
Maximum Windage/Elevation Adjustment
Windage: 25.2 MOA Elevation: 57.6 MOA
Weatherproofing
Water & fogproof
Battery / Runtime
CR2032: run-time n/a
Dimensions
Length: 14.89" / 37.8 cm
Weight
37.42 oz / 1.06 kg
The user manual for the Zeiss Victory Fl Diavari 6-24x72 T* Riflescope 52 17 95 99 43 can be downloaded in .pdf
format if it did not come with your new riflescopes, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Zeiss users keep a unique electronic library
for Zeiss riflescopess,
where you can use our link to download the user manual for the Zeiss Victory Fl Diavari 6-24x72 T* Riflescope 52 17 95 99 43.
The user manual lists all of the functions of the Zeiss Victory Fl Diavari 6-24x72 T* Riflescope 52 17 95 99 43,
all the basic and advanced features and tells you how to use the riflescopes.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Zeiss service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Zeiss Victory Fl Diavari 6-24x72 T* Riflescope 52 17 95 99 43. User manuals are also
available on the Zeiss website under Optics - Riflescopes & Sights - Riflescopes.
